GX240 K1 ED2 (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) CARBURETOR (MANUAL) Parts Diagram

Engine, Made in Japan

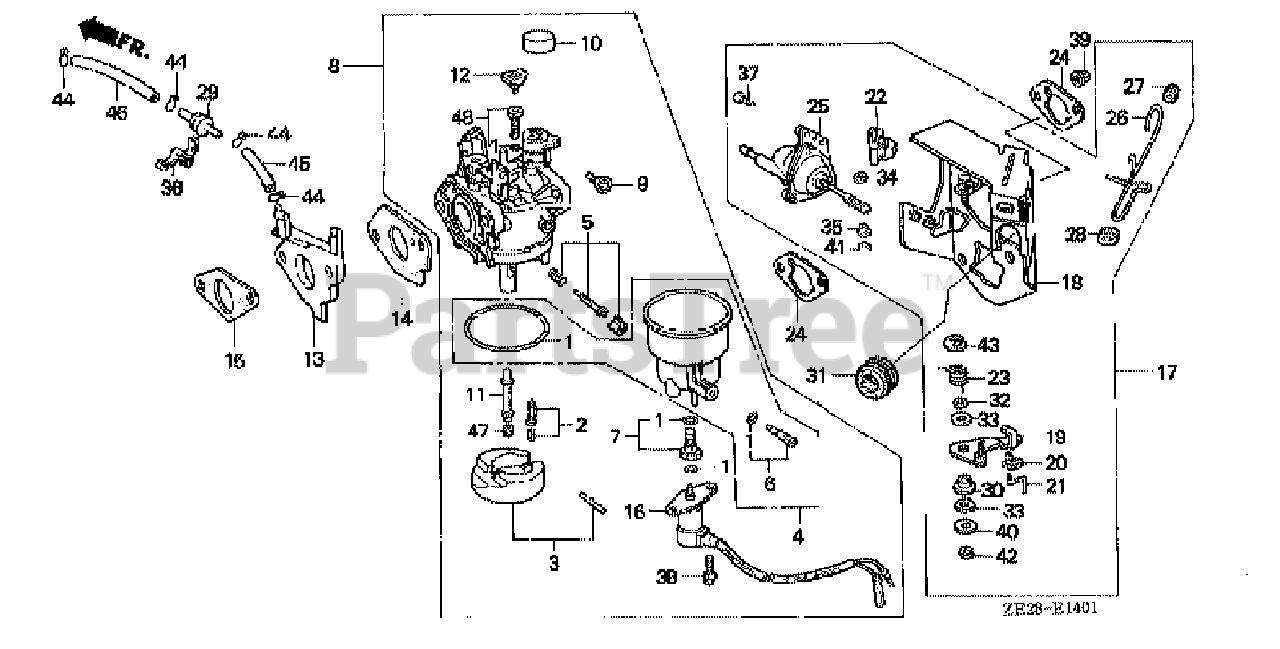

CARBURETOR (MANUAL) Parts Diagram

  • Title

1

Honda 16010-ZE3-701

GASKET SET

Note: (Honda Code 2386233).

$17.99

$

In Stock, Qty 8

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

Note: (Honda Code 2059236).

$40.99

$

In Stock, only 2 left!

0

3

Honda 16013-ZA0-931

FLOAT SET

Note: (Honda Code 2059244).

$46.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZA0-931

CHAMBER SET, FLOAT

Note: (Honda Code 2386241).

$75.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SEE PART DETAILS - PRI; SCREW SET

Note: (Honda Code 4219879).

$19.99

$

In Stock, only 3 left!

0

6

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

Note: (Honda Code 0640052).

$13.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZA0-931

SEE PART DETAILS - PRI; SCREW SET B

Note: (Honda Code 2097376).

$25.99

$

In Stock, only 1 left!

0

8

Honda 16100-ZE2-F01

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE72C)

Note: (Honda Code 5222229).

$

$

Currently unavailable

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

Note: (Honda Code 1441559).

$14.99

$

In Stock, only 2 left!

0

10

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST

Note: (Honda Code 2110468).

$6.49

$

In Stock, only 1 left!

0

11

Honda 16166-ZE2-015

NOZZLE, MAIN

Note: (Honda Code 2157543).

$30.99

$

Usually ships in 3-6 days

0

12

Honda 16172-ZE3-W10

COLLAR, SET

Note: (Honda Code 3738358).

$9.99

$

Usually ships in 3-6 days

0

13

Honda 16211-ZE2-700

INSULATOR, CARBURETOR
(Superseded to 16211-ZE2-701)

Note: (Honda Code 2303816).

$9.99

$

In Stock, only 2 left!

0

14

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

Note: (Honda Code 3678620).

$2.49

$

In Stock, Qty 20+

0

15

Honda 16223-ZA0-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

Note: (Honda Code 3678638).

$2.49

$

In Stock, Qty 19

0

16

Honda 16230-ZE3-701

VALVE ASSY., SOLENOID
(Superseded to 16230-ZE3-702)

Note: (Honda Code 2386290).

$67.99

$

In Stock, only 1 left!

0

17

Honda 16260-ZE2-722

SEE PART DETAILS - PRI; STAY ASSY., MANUAL CHOKE
(Superseded to 16260-ZE2-723)

Note: (Honda Code 2868966).

$133.99

$

Usually ships in 3-6 days

0

18

Honda 16261-ZE2-702

SEE PART DETAILS - PRI; STAY, SOLENOID

Note: (Honda Code 2868974).

$34.99

$

Usually ships in 3-6 days

0

19

Honda 16262-ZE2-711

LEVER, CHOKE

Note: (Honda Code 2326171).

$8.49

$

In Stock, only 1 left!

0

20

Honda 16263-ZA0-000

JOINT, ROD

Note: (Honda Code 1307677).

$4.99

$

In Stock, only 1 left!

0

21

Honda 16264-ZE2-701

ROD, CHOKE

Note: (Honda Code 2326189).

$2.49

$

In Stock, only 4 left!

0

22

Honda 16265-ZE2-721

STOPPER, CHOKE ROD

Note: (Honda Code 2868958).

$2.99

$

In Stock, only 2 left!

0

23

Honda 16268-ZE2-721

SPRING, MANUAL CHOKE

Note: (Honda Code 2326197).

$3.99

$

In Stock, only 1 left!

0

24

Honda 16269-ZA0-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER

Note: (Honda Code 3755212).

$2.49

$

In Stock, Qty 10

0

25

Honda 16400-ZE2-703

SEE PART DETAILS - PRI; DIAPHRAGM ASSY.
(Superseded to 16400-ZE2-704)

Note: (Honda Code 2868982).

$77.99

$

Usually ships in 3-6 days

0

26

Honda 16611-ZE2-711

ROD, CHOKE CONTROL

Note: (Honda Code 2326213).

$7.99

$

Usually ships in 3-6 days

0

27

Honda 16613-893-000

GROMMET, CHOKE ROD

Note: (Honda Code 0788596).

$3.99

$

In Stock, only 2 left!

0

28

Honda 16615-893-000

GUIDE, CHOKE ROD

Note: (Honda Code 0788604).

$4.49

$

In Stock, only 1 left!

0

29

Honda 36135-ZF6-D41

VALVE, DASHPOT CHECK

Note: (Honda Code 3751138).

$38.99

$

Usually ships in 3-6 days

0

30

Honda 53149-964-003

BUSH, ARM PIVOT

Note: (Honda Code 2279644).

$7.99

$

Usually ships in 3-6 days

0

31

Honda 88911-MJ3-000

GROMMET, FENDER

Note: (Honda Code 2288900).

$2.49

$

In Stock, Qty 5

0

32

Honda 90431-ZE2-700

WASHER, CHOKE LEVER

Note: (Honda Code 2279925).

$3.99

$

Usually ships in 3-6 days

0

33

Honda 90432-ZE2-700

SEAL, CHOKE LEVER

Note: (Honda Code 2279933).

$3.99

$

Usually ships in 3-6 days

0

34

Honda 90433-ZE2-700

WASHER, THRUST (2.7X8)

Note: (Honda Code 2279941).

$3.99

$

In Stock, only 1 left!

0

35

Honda 90434-ZE2-700

COLLAR, LEVER

Note: (Honda Code 2279958).

$3.99

$

Usually ships in 3-6 days

0

36

Honda 90650-SD9-003

CLIP, WIRE HARNESS

Note: (Honda Code 2033082).

$7.99

$

Usually ships in 3-6 days

0

37

Honda 93500-05012-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X12)

Note: (Honda Code 0173567).

$1.49

$

In Stock, Qty 8

0

38

Honda 93892-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12)

Note: (Honda Code 0368621).

$1.49

$

In Stock, Qty 5

0

39

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

40

Honda 94103-05000

WASHER, PLAIN (5MM)

Note: (Honda Code 1555630).

$0.99

$

In Stock, only 4 left!

0

41

Honda 94540-02010

E-RING (2MM)

Note: (Honda Code 2280071).

$1.99

$

In Stock, Qty 5

0

42

Honda 94540-04010

E-RING (4MM)

Note: (Honda Code 1834878).

$2.49

$

Usually ships in 3-6 days

0

43

Honda 94540-07010

E-RING (7MM)

Note: (Honda Code 2280097).

$2.99

$

Usually ships in 3-6 days

0

44

Honda 95002-02070

CLIP, TUBE (B7)

Note: (Honda Code 0250639).

$2.49

$

In Stock, Qty 6

0

45

Honda 95005-35008-10M

SEE PART DETAILS - PRI; BULK HOSE, VACUUM (3.5X8000) (3.5X65)

Note: (Honda Code 2325058).

$147.99

$

Usually ships in 3-6 days

0

46

Honda 95005-35008-10M

SEE PART DETAILS - PRI; BULK HOSE, VACUUM (3.5X8000) (3.5X130)

Note: (Honda Code 2325058).

$147.99

$

Usually ships in 3-6 days

0

47

Honda 99101-ZH8-0750

JET, MAIN (#75)

Note: (Optional). (Honda Code 6056147).

$7.99

$

In Stock, only 2 left!

0

47

Honda 99101-ZH8-0780

JET, MAIN (#78)

Note: (Optional). (Honda Code 6056154).

$7.99

$

Usually ships in 3-6 days

0

47

Honda 99101-ZH8-0800

SEE PART DETAILS - PRI; JET, MAIN (#80)

Note: (Honda Code 5947122).

$7.49

$

Usually ships in 3-6 days

0

48

Honda 99204-ZA0-0450

JET SET, PILOT (#45)

Note: (Honda Code 2060465).

$21.99

$

In Stock, only 1 left!

0
