GX240 K1 ED2 (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) MUFFLER (SILENT) Parts Diagram

Engine, Made in Japan

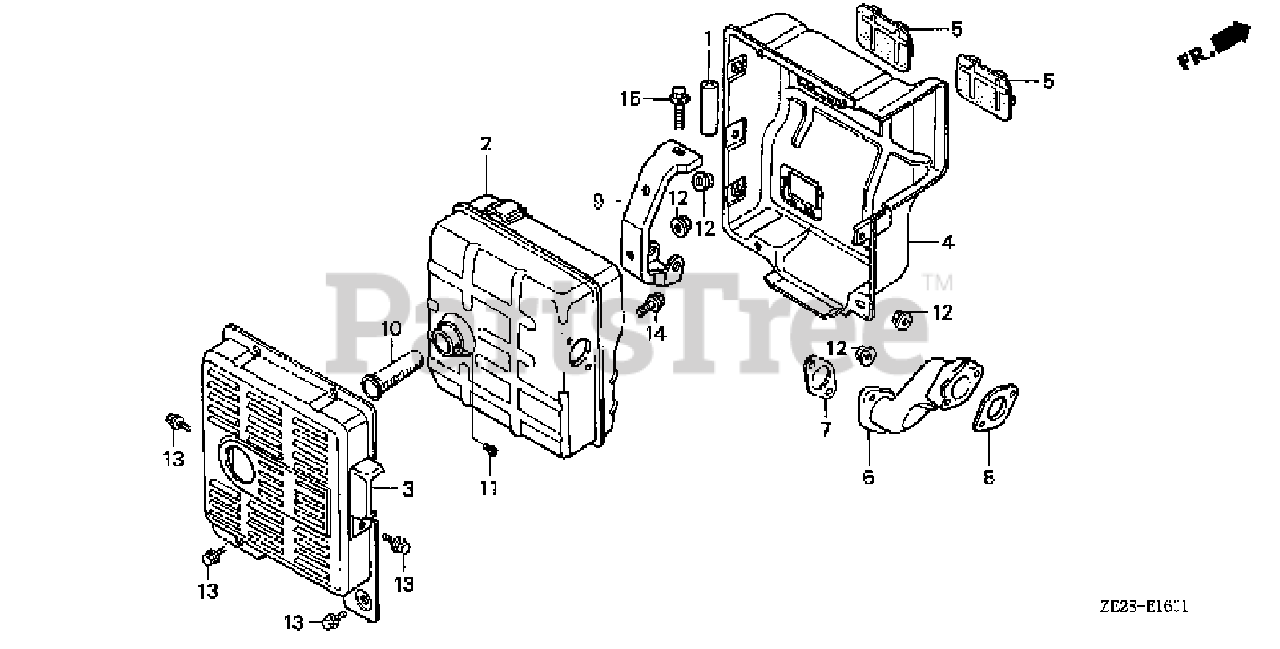

MUFFLER (SILENT) Parts Diagram

  • Title

1

Honda 18301-ZE2-V60

COLLAR (10X16X53)

Note: (Honda Code 4786240).

$10.99

$

Usually ships in 3-6 days

0

2

Honda 18310-ZE2-V60

MUFFLER (TSURUMI)
(Superseded to 18310-ZE2-V61)

Note: (Honda Code 4786265).

$258.99

$

Usually ships in 3-6 days

0

3

Honda 18320-ZB4-000

PROTECTOR, MUFFLER (OUTER)

Note: (Honda Code 2288496).

$114.99

$

Usually ships in 3-6 days

0

4

Honda 18325-ZB4-000

PROTECTOR, MUFFLER (INNER)

Note: (Honda Code 2278687).

$145.99

$

Usually ships in 3-6 days

0

5

Honda 18329-ZB4-000

SEAL, MUFFLER PROTECTOR

Note: (Honda Code 2278695).

$14.99

$

Usually ships in 3-6 days

0

6

Honda 18330-ZE2-700

PIPE, EX.

Note: (Honda Code 2288504).

$77.99

$

Usually ships in 3-6 days

0

7

Honda 18333-ZB4-800

SEE PART DETAILS - PRI; GASKET, EX. PIPE
(Superseded to 18333-ZB4-801)

Note: (Honda Code 3755220).

$4.99

$

In Stock, only 2 left!

0

8

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

Note: (Honda Code 3520194).

$5.99

$

In Stock, Qty 20+

0

8

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER)

Note: (Honda Code 5164199).

$5.99

$

In Stock, Qty 20+

0

9

Honda 18338-ZE2-V60

STAY A, MUFFLER (TSURUMI)

Note: (Honda Code 4786307).

$41.99

$

Usually ships in 3-6 days

0

10

Honda 18355-ZB4-630

ARRESTER, SPARK

Note: (Honda Code 2278737).

$26.99

$

In Stock, only 2 left!

0

11

Honda 90002-ZE2-U91

SCREW, TAPPING (4X8)

Note: (Honda Code 5684618).

$1.49

$

In Stock, only 4 left!

0

12

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

Note: (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

13

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

Note: (Honda Code 2410876).

$1.99

$

In Stock, Qty 20+

0

14

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

Note: (Honda Code 2552552).

$2.99

$

In Stock, only 3 left!

0

15

Honda 95701-08070-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X70)

Note: (Honda Code 2936250).

$4.49

$

Usually ships in 3-6 days

0
