GX240 K1 EDS2 (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) MUFFLER (4) Parts Diagram

Engine, Made in Japan

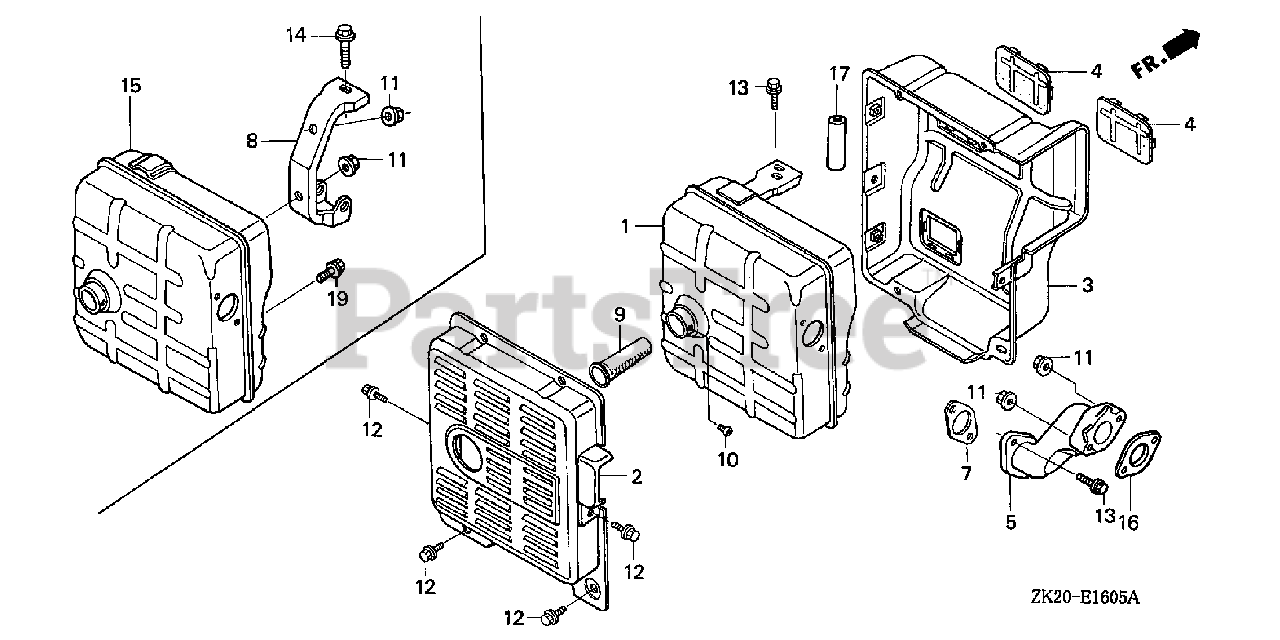

MUFFLER (4) Parts Diagram

  • Title

1

Honda 18310-ZD1-E31

SEE PART DETAILS - PRI; MUFFLER
(Superseded to 18310-ZD1-E32)

Note: (Honda Code 3750932).

$221.99

$

Usually ships in 3-6 days

0

2

Honda 18320-ZB4-000

PROTECTOR, MUFFLER (OUTER)

Note: (Honda Code 2288496).

$103.99

$

Usually ships in 3-6 days

0

3

Honda 18325-ZB4-000

PROTECTOR, MUFFLER (INNER)

Note: (Honda Code 2278687).

$126.99

$

Usually ships in 3-6 days

0

4

Honda 18329-ZB4-000

SEAL, MUFFLER PROTECTOR

Note: (Honda Code 2278695).

$12.99

$

Usually ships in 3-6 days

0

5

Honda 18330-ZE2-710

PIPE, EX.

Note: (Honda Code 2288512).

$70.99

$

Usually ships in 3-6 days

0

7

Honda 18333-ZB4-800

SEE PART DETAILS - PRI; GASKET, EX. PIPE

Note: (Honda Code 3755220).

$

$

Not available

9

Honda 18355-ZB4-630

ARRESTER, SPARK

Note: (Honda Code 2278737).

$22.99

$

Usually ships in 3-6 days

0

10

Honda 90002-ZE2-U91

SCREW, TAPPING (4X8)

Note: (Honda Code 5684618).

$1.49

$

In Stock, Qty 5

0

11

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

Note: (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

12

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0

13

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

Note: (Honda Code 2552552).

$2.49

$

In Stock, Qty 6

0
