GX240 K1 QA2 (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) PISTON Parts Diagram

Engine, Made in Japan

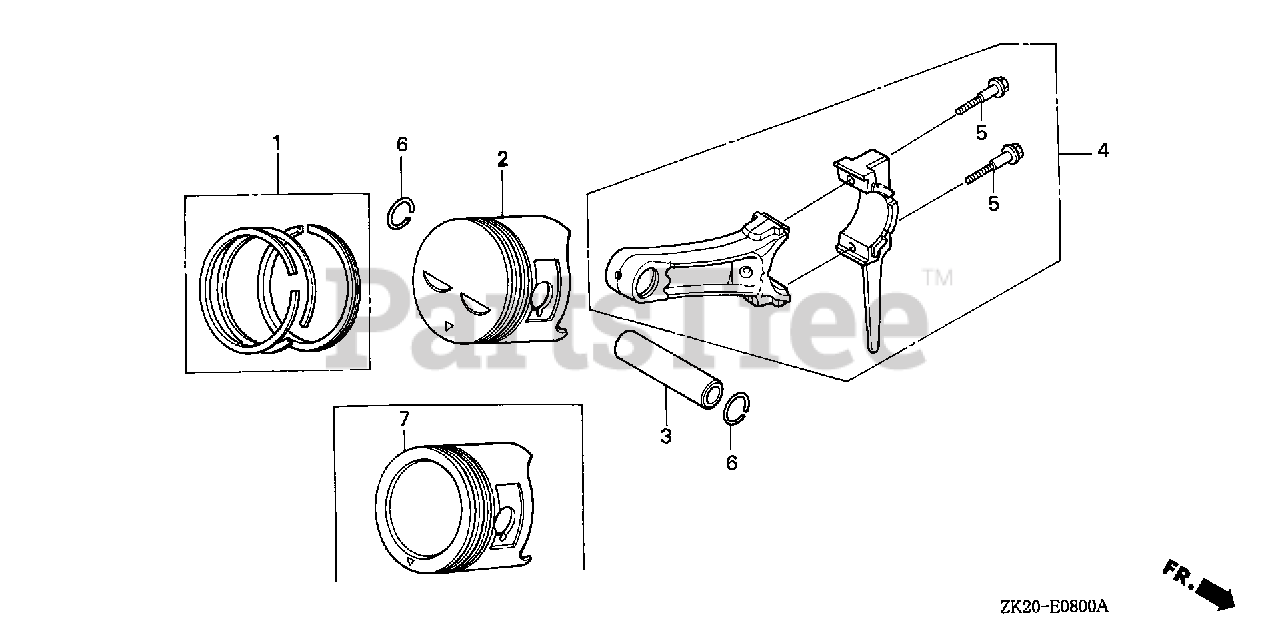

PISTON Parts Diagram

  • Title

1

Honda 13010-ZE2-013

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (NIPPON)

Note: Use up to Engine SN 4081304.

$39.99

$

Usually ships in 3-6 days

0

1

Honda 13010-ZE2-921

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TEIKOKU)

$52.99

$

In Stock, only 1 left!

0

1

Honda 13010-ZE2-922

RING SET, PISTON (STD) (NIPPON)

Note: Use from Engine SN 4081305.

$53.99

$

Usually ships in 3-6 days

0

1

Honda 13010-Z5F-004

RING SET, PISTON (STD) (TEIKOKU)

Note: Use from Engine SN 4081305.

$41.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZE2-013

SEE PART DETAILS - SUP; RING SET, PISTON (0.25) (NIPPON)
(Superseded to 13011-ZE2-921)

Note: (Optional). Use up to Engine SN 4081304.

$

$

Not available

1

Honda 13011-ZE2-014

RING SET, PISTON (0.25) (TEIKOKU)
(Superseded to 13011-ZE2-921)

Note: (Optional). Use up to Engine SN 4081304.

$

$

Not available

1

Honda 13011-ZE2-921

SEE PART DETAILS - PRI; RING SET, PISTON (0.25) (TEIKOKU)

Note: (Optional).

$

$

Not available

1

Honda 13011-ZE2-922

RING SET, PISTON (0.25) (NIPPON)

Note: (Optional). Use from Engine SN 4081305.

$

$

Not available

1

Honda 13012-ZE2-921

SEE PART DETAILS - PRI; RING SET, PISTON (0.50) (TEIKOKU)

Note: (Optional).

$57.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZE2-922

RING SET, PISTON (0.50) (NIPPON)

Note: (Optional). Use from Engine SN 4081305.

$56.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZE2-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (NIPPON)

Note: (Optional). Use up to Engine SN 4081304.

$

$

Not available

1

Honda 13013-ZE2-921

RING SET, PISTON (0.75) (TEIKOKU)

Note: (Optional). Use from Engine SN 4081305.

$56.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZE2-922

RING SET, PISTON (0.75) (NIPPON)

Note: (Optional). Use from Engine SN 4081305.

$58.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZE2-W00

PISTON (STD)

$59.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZE2-W00

PISTON (0.25)

Note: (Optional).

$85.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZE2-W00

PISTON (0.50)

Note: (Optional).

$88.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZE2-W00

PISTON (0.75)

Note: (Optional).

$84.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZE2-000

PIN, PISTON

$15.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE2-010

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (STD)
(Superseded to 13200-Z1D-900)

$34.99

$

In Stock, only 2 left!

0

4

Honda 13200-ZE2-305

ROD ASSY., CONNECTING (0.25 LOWER SIZE)

Note: (Optional).

$142.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z1D-000

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD)
(Superseded to 13200-Z1D-900)

$34.99

$

In Stock, only 2 left!

0

5

Honda 90001-ZE8-000

BOLT, CONNECTING ROD

$5.49

$

In Stock, only 3 left!

0

6

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

$1.99

$

In Stock, Qty 20+

0
