GX240 K1 QAB2 (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) MUFFLER (1) Parts Diagram

Engine, Made in Japan

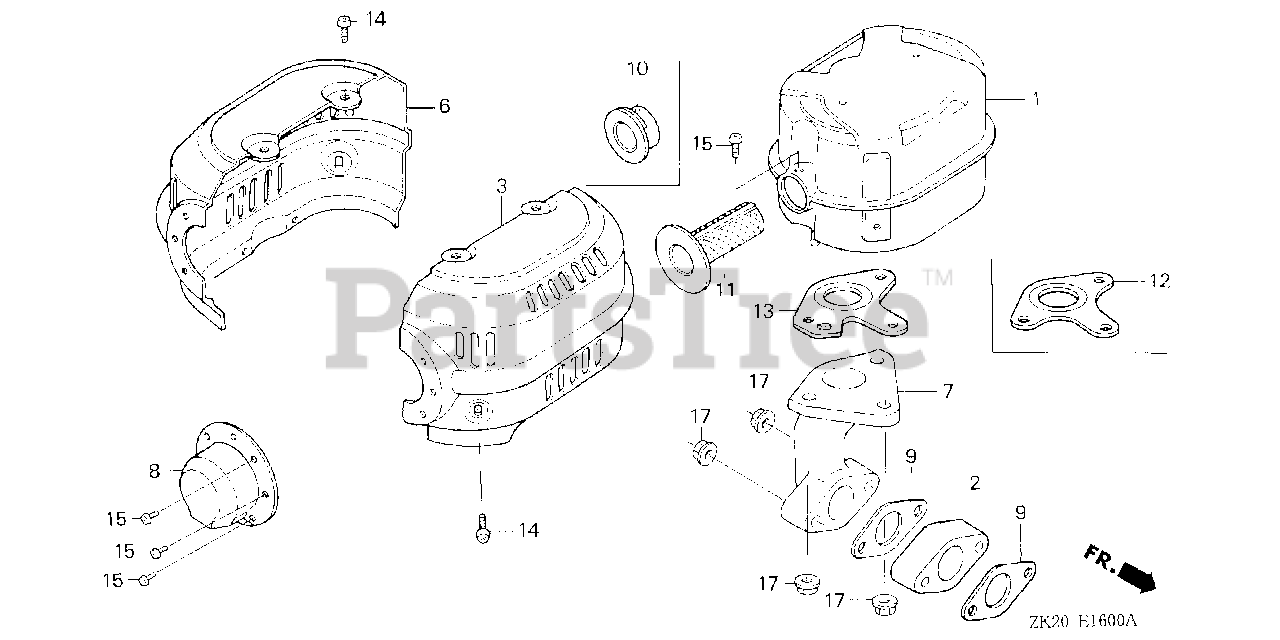

MUFFLER (1) Parts Diagram

  • Title

1

Honda 18310-ZE2-013

SEE PART DETAILS - PRI; MUFFLER

Note: (Honda Code 2538478).

$84.99

$

Usually ships in 3-6 days

0

1

Honda 18310-ZE2-822

SEE PART DETAILS - PRI; MUFFLER (SILENT)

Note: (Optional). (Honda Code 2520310).

$126.99

$

Usually ships in 3-6 days

0

3

Honda 18320-ZE2-P30

PROTECTOR, R. MUFFLER (STD)

Note: (Honda Code 3828688).

$

$

Not available

6

Honda 18325-ZE2-P30

PROTECTOR, L. MUFFLER (STD)

Note: (Honda Code 3828696).

$52.99

$

Usually ships in 3-6 days

0

7

Honda 18330-ZE2-000

PIPE, EX.

Note: (Honda Code 2026219).

$65.99

$

In Stock, only 1 left!

0

8

Honda 18331-ZE2-810

CAP, MUFFLER

Note: (Honda Code 2026227).

$10.99

$

In Stock, only 1 left!

0

9

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

Note: (Honda Code 3520194).

$4.99

$

In Stock, Qty 14

0

9

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER)

Note: (Honda Code 5164199).

$4.99

$

In Stock, Qty 14

0

11

Honda 18355-ZE2-010

ARRESTER, SPARK

Note: (Honda Code 2482594).

$23.99

$

Usually ships in 3-6 days

0

13

Honda 18381-ZE2-W10

SEE PART DETAILS - PRI; GASKET, MUFFLER (ARRESTER)

Note: (Honda Code 3678802).

$11.99

$

In Stock, only 1 left!

0

14

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

Note: (Honda Code 1431105).

$1.99

$

In Stock, Qty 20+

0

15

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

Note: (Honda Code 1431105).

$1.99

$

In Stock, Qty 20+

0

15

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

Note: (Honda Code 1431121).

$0.99

$

In Stock, Qty 20+

0

17

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

Note: (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0
