GX240 K1 RA (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) FUEL TANK (3) Parts Diagram

Engine, Made in Japan

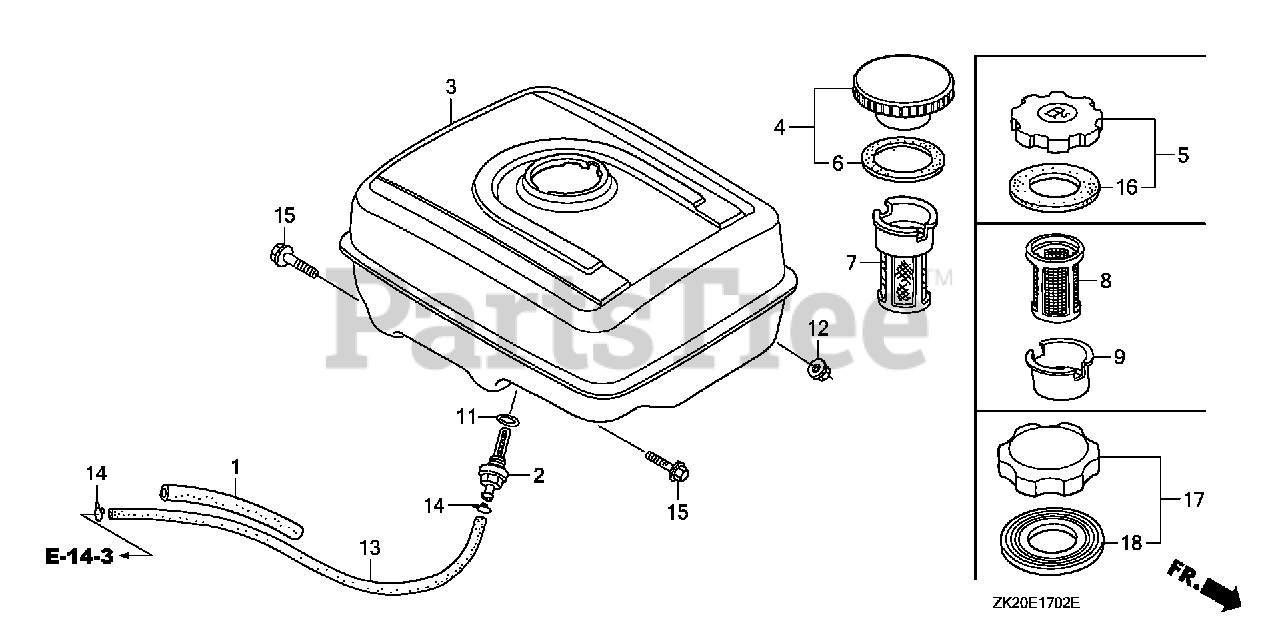

FUEL TANK (3) Parts Diagram

  • Title

1

Honda 16854-ZE1-000

SEE PART DETAILS - SUP; RUBBER, SUPPORTER (107MM)
(Superseded to 16854-ZH8-000)

Note: Use up to Engine SN 3033265.

$5.99

$

In Stock, Qty 11

0

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

$5.99

$

In Stock, Qty 11

0

2

Honda 16955-ZE1-000

SEE PART DETAILS - SUP; JOINT, FUEL TANK
(Superseded to 16955-ZE1-010)

$9.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE2-801ZC

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE)

$340.99

$

Usually ships in 3-6 days

0

4

Honda 17620-ZE2-W00

SEE PART DETAILS - SUP; CAP, FUEL FILLER (CHROME PLATED)

Note: Use up to Engine SN 3254423.

$

$

Not available

4

Honda 17620-402-010

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-402-020)

Note: Use up to Engine SN 3254423.

$23.99

$

Usually ships in 3-6 days

0

5

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 3254424.

$

$

Not available

6

Honda 17631-329-003

GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

Note: Use up to Engine SN 3254423.

$

$

Not available

7

Honda 17672-ZE2-W01

FILTER, FUEL

Note: Use from Engine SN 3190917.

$6.99

$

In Stock, only 2 left!

0

8

Honda 17672-880-000

FILTER, FUEL

Note: Use from Engine SN 3118370 to 3190916.

$16.99

$

In Stock, Qty 5

0

9

Honda 17673-893-000

HOLDER, FUEL FILTER

Note: Use from Engine SN 3118370 to 3190916.

$16.99

$

In Stock, only 1 left!

0

11

Honda 91353-671-003

O-RING (14MM) (ARAI)

$4.49

$

In Stock, Qty 20+

0

11

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$4.49

$

In Stock, Qty 20+

0

12

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

13

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X222)

$60.99

$

In Stock, Qty 7

0

14

Honda 95002-02080

CLIP, TUBE (B8)

$2.99

$

In Stock, Qty 20+

0

15

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.99

$

In Stock, Qty 8

0

16

Honda 17631-329-003

GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

Note: Use from Engine SN 3254424.

$

$

Not available
