GX240 K1 RA (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) REDUCTION (1/2) (1) Parts Diagram

Engine, Made in Japan

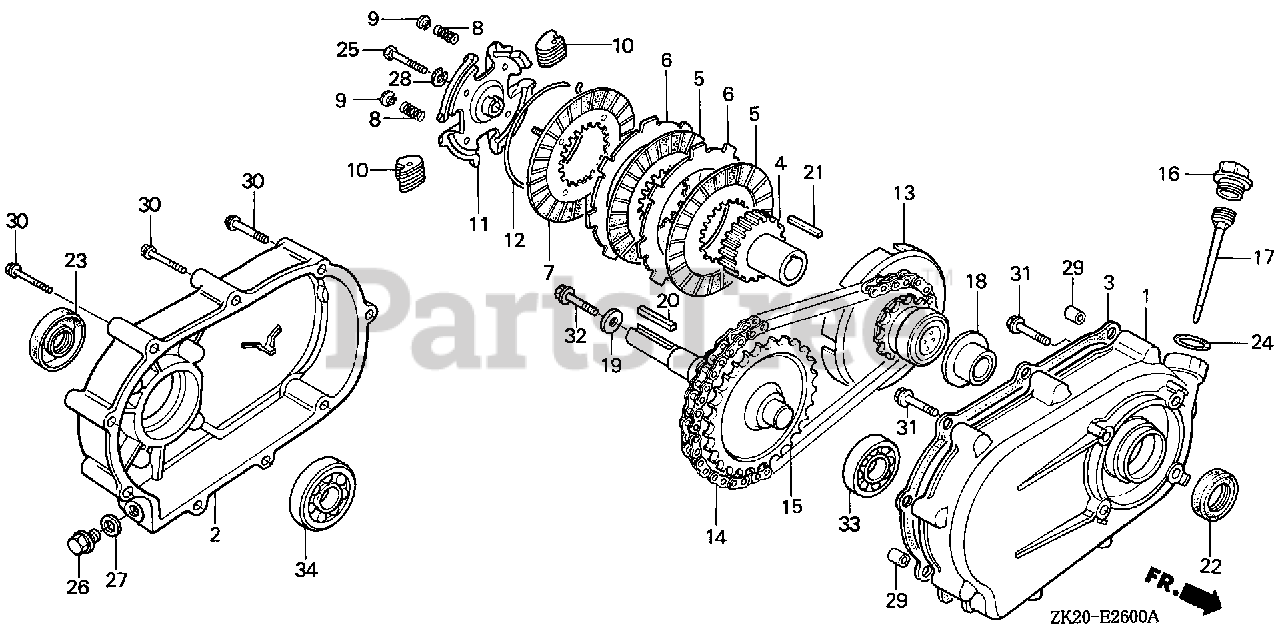

REDUCTION (1/2) (1) Parts Diagram

  • Title

1

Honda 21510-889-750

CASE, REDUCTION

$249.99

$

Usually ships in 3-6 days

0

2

Honda 21610-889-750

COVER, REDUCTION

$342.99

$

Usually ships in 3-6 days

0

3

Honda 21691-889-306

GASKET, REDUCTION COVER

$13.99

$

In Stock, only 2 left!

0

4

Honda 22121-889-750

CENTER, CLUTCH (28T)

$103.99

$

Usually ships in 3-6 days

0

5

Honda 22201-822-306

DISK, CLUTCH FRICTION

$46.99

$

In Stock, Qty 9

0

6

Honda 22311-822-610

PLATE, CLUTCH

$27.99

$

In Stock, Qty 5

0

7

Honda 22350-822-610

PLATE, CLUTCH PRESSURE

$33.99

$

In Stock, only 3 left!

0

8

Honda 22411-822-611

SPRING, CLUTCH FREE

$4.99

$

In Stock, only 3 left!

0

9

Honda 22421-822-610

HOLDER, CLUTCH SPRING

$2.49

$

In Stock, Qty 6

0

10

Honda 22521-822-610

WEIGHT, CLUTCH

$5.49

$

In Stock, only 2 left!

0

11

Honda 22531-889-750

HOLDER, CLUTCH WEIGHT

$95.99

$

Usually ships in 3-6 days

0

12

Honda 22535-822-610

CENTER, CLUTCH WEIGHT

$3.49

$

In Stock, only 2 left!

0

13

Honda 23120-889-750

SPROCKET, DRIVE (14T)
(Superseded to 23120-889-751)

$168.99

$

Usually ships in 3-6 days

0

14

Honda 23161-822-611

CHAIN, DRIVE (RK428SH-36LE)

$71.99

$

Usually ships in 3-6 days

0

15

Honda 23711-822-610

SHAFT, P.T.O. (28T)

$82.99

$

Usually ships in 3-6 days

0

16

Honda 25620-805-612

SEE PART DETAILS - PRI; CAP, REDUCTION OIL (GRAY)

$9.99

$

In Stock, only 2 left!

0

17

Honda 25651-889-750

DIPSTICK, OIL

$13.99

$

In Stock, only 3 left!

0

18

Honda 90403-889-000

WASHER, THRUST (25MM)

$20.99

$

Usually ships in 3-6 days

0

20

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33) (OVER SIZE) (YELLOW)

$10.99

$

Usually ships in 3-6 days

0

21

Honda 90741-889-000

KEY, CLUTCH CENTER

$12.99

$

Usually ships in 3-6 days

0

22

Honda 91201-890-003

OIL SEAL (30X46X8)

$13.99

$

In Stock, only 1 left!

0

23

Honda 91202-Z2F-801

OIL SEAL (30X50X7)

$13.99

$

In Stock, Qty 15

0

23

Honda 91202-805-610

OIL SEAL (PJ30507)
(Superseded to 91202-Z2F-801)

$13.99

$

In Stock, Qty 15

0

24

Honda 91301-805-000

O-RING (26X2.7)

$5.99

$

In Stock, Qty 14

0

25

Honda 92101-08035-0H

BOLT, HEX. (8X35)

$2.99

$

Usually ships in 3-6 days

0

26

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.99

$

Usually ships in 3-6 days

0

27

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.99

$

In Stock, Qty 20+

0

28

Honda 94111-08800

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 94301-08140

PIN, DOWEL (8X14)

$3.49

$

In Stock, Qty 7

0

30

Honda 95701-06050-08

BOLT, FLANGE (6X50)

$3.49

$

Usually ships in 3-6 days

0

31

Honda 95701-08032-08

BOLT, FLANGE (8X32)

$3.49

$

Usually ships in 3-6 days

0

32

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.99

$

In Stock, Qty 8

0

33

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$28.99

$

In Stock, Qty 9

0

34

Honda 96100-62060-00

BEARING, RADIAL BALL (6206)

$22.99

$

In Stock, only 2 left!

0
