GX240 R2 EDN2 (GCBPK) - Honda Engine, Made in Japan (SN: GCBPK-1000001 - GCBPK-9999999) FUEL TANK (2) Parts Diagram

Engine, Made in Japan

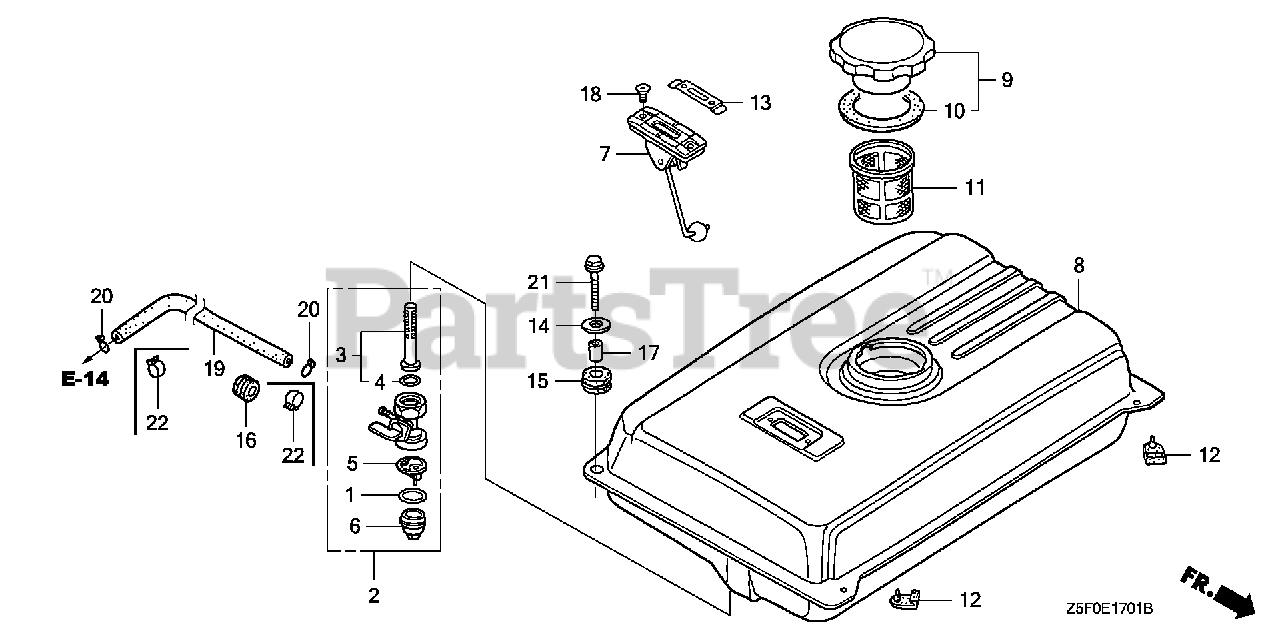

FUEL TANK (2) Parts Diagram

  • Title
1

Honda Part# 16173-001-004

GASKET, FUEL STRAINER CUP
Usually ships in 1 day

$

$5.99

0

2

Honda Part# 16950-ZB4-015

SEE PART DETAILS - PRI; PETCOCK ASSY.
Usually ships in 1 day

$

$84.43

0

3

Honda Part# 16952-KJ9-752

SEE PART DETAILS - PRI; SCREEN SET, FUEL STRAINER
Usually ships in 1 day

$

$36.65

0

3

Honda Part# 16952-ZB4-005

SEE PART DETAILS - SUP; SCREEN SET, FUEL STRAINER
(Superseded to 16952-KJ9-752)
Usually ships in 1 day

$

$36.65

0

4

Honda Part# 16958-397-771

O-RING (9.0X1.3)
Usually ships in 1 day

$

$6.15

0

Usually ships in 1 day

$

$10.87

0

6

Honda Part# 16967-GA6-671

CUP, FUEL STRAINER
Usually ships in 3 to 5 days

$

$26.05

0

16

Honda Part# 90854-ZB3-000

RUBBER, FUEL (9X15X20)
Usually ships in 3 to 5 days

$

$3.76

0

19

Honda Part# 91424-Z5F-812

TUBE, FUEL (4.5X190) (FKM)
Usually ships in 3 to 5 days

$

$16.59

0

22

Honda Part# 95002-40800-08

CLAMP, TUBE (D8)
Usually ships in 1 day

$

$2.46

0
