GX240 RA (GC04) - Honda Engine, Made in Japan (SN: GC04-1000001 - GC04-1528199) FUEL TANK (1) Parts Diagram

Engine, Made in Japan

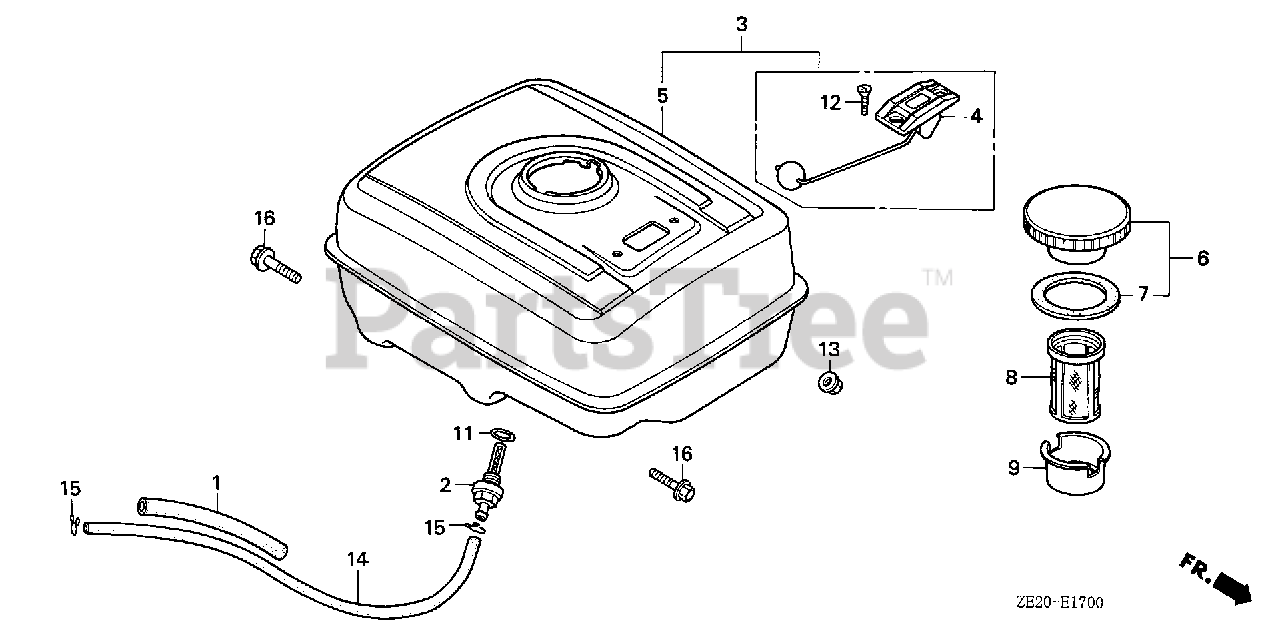

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 16854-ZE1-000

SEE PART DETAILS - SUP; RUBBER, SUPPORTER (107MM)
(Superseded to 16854-ZH8-000)

Note: Use up to Engine SN 1523056.

$5.99

$

In Stock, Qty 12

0

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

$5.99

$

In Stock, Qty 12

0

2

Honda 16955-ZE1-000

SEE PART DETAILS - SUP; JOINT, FUEL TANK (NOT AVAILABLE)
(Superseded to 16955-ZE1-010)

$9.99

$

In Stock, Qty 20+

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$9.99

$

In Stock, Qty 20+

0

5

Honda 17510-ZE2-010ZA

SEE PART DETAILS - SUP; TANK, FUEL *NH31* (MCKINLEY WHITE)
(Superseded to 17510-ZE2-801ZC)

$340.99

$

Usually ships in 3-6 days

0

5

Honda 17510-ZE2-801ZC

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE)

$340.99

$

Usually ships in 3-6 days

0

6

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

$

$

Not available

7

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

$

$

Not available

8

Honda 17672-880-000

FILTER, FUEL

Note: (Optional).

$15.99

$

In Stock, only 4 left!

0

9

Honda 17673-893-000

HOLDER, FUEL FILTER

Note: (Optional).

$16.99

$

In Stock, only 2 left!

0

11

Honda 91353-671-003

O-RING (14MM) (ARAI)

$3.99

$

In Stock, Qty 20+

0

11

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

13

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

14

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X222)

$59.99

$

In Stock, Qty 8

0

15

Honda 95002-02080

CLIP, TUBE (B8)

$2.99

$

In Stock, Qty 20+

0

16

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, Qty 15

0
