GX240 U1 EN2 (GCAKK) - Honda Engine, Made in Japan (SN: GCAKK-1000001 - GCAKK-9999999) MUFFLER (4) Parts Diagram

Engine, Made in Japan

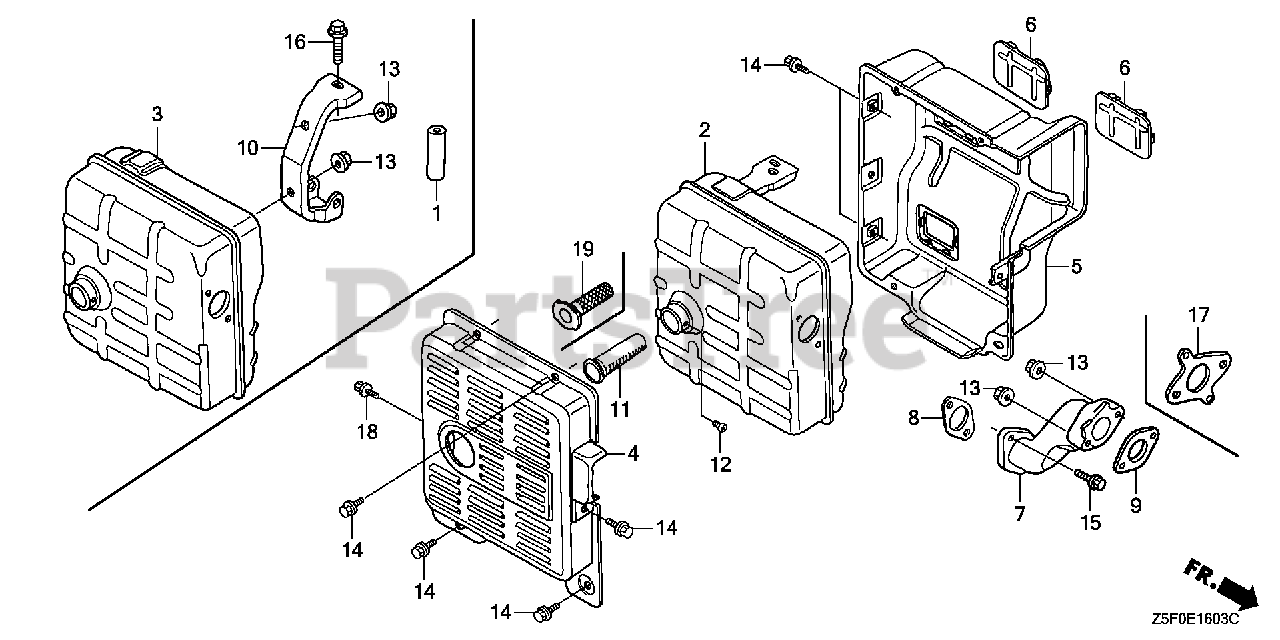

MUFFLER (4) Parts Diagram

  • Title

3

Honda 18310-ZE2-V60

SEE PART DETAILS - SUP; MUFFLER (TSURUMI)
(Superseded to 18310-ZE2-V61)

$250.99

$

Usually ships in 3-6 days

0

3

Honda 18310-ZE2-V61

SEE PART DETAILS - PRI; MUFFLER (TSURUMI)

$250.99

$

Usually ships in 3-6 days

0

5

Honda 18325-ZB4-000

PROTECTOR, MUFFLER (INNER)

$141.99

$

Usually ships in 3-6 days

0

6

Honda 18329-ZB4-000

SEAL, MUFFLER PROTECTOR

$14.99

$

Usually ships in 3-6 days

0

7

Honda 18330-ZE2-700

PIPE, EX.

$75.99

$

Usually ships in 3-6 days

0

8

Honda 18333-ZB4-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE

$

$

Not available

8

Honda 18333-ZB4-801

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$4.99

$

In Stock, only 2 left!

0

9

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

Note: Use up to Engine SN 1112462.

$5.99

$

In Stock, Qty 20+

0

9

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE

Note: Use up to Engine SN 1112462.

$5.99

$

In Stock, Qty 20+

0

11

Honda 18355-ZB4-630

ARRESTER, SPARK

Note: (Optional).

$25.99

$

In Stock, only 2 left!

0

12

Honda 90002-ZE2-U91

SCREW, TAPPING (4X8)

$1.49

$

In Stock, Qty 8

0

13

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

14

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

15

Honda 95701-08020-00

BOLT, FLANGE (8X20)

$2.99

$

In Stock, Qty 13

0

17

Honda 18333-ZF6-W01

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-Z1C-901)

Note: Use from Engine SN 1112463.

$3.49

$

In Stock, Qty 20+

0

17

Honda 18333-Z1C-901

SEE PART DETAILS - PRI; GASKET, EX. PIPE

Note: Use from Engine SN 1112463.

$3.49

$

In Stock, Qty 20+

0

18

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0
