GX270 QA2 (GCAB) - Honda Engine, Made in Japan (SN: GCAB-1000001 - GCAB-1999999) RECOIL STARTER Parts Diagram

Engine, Made in Japan

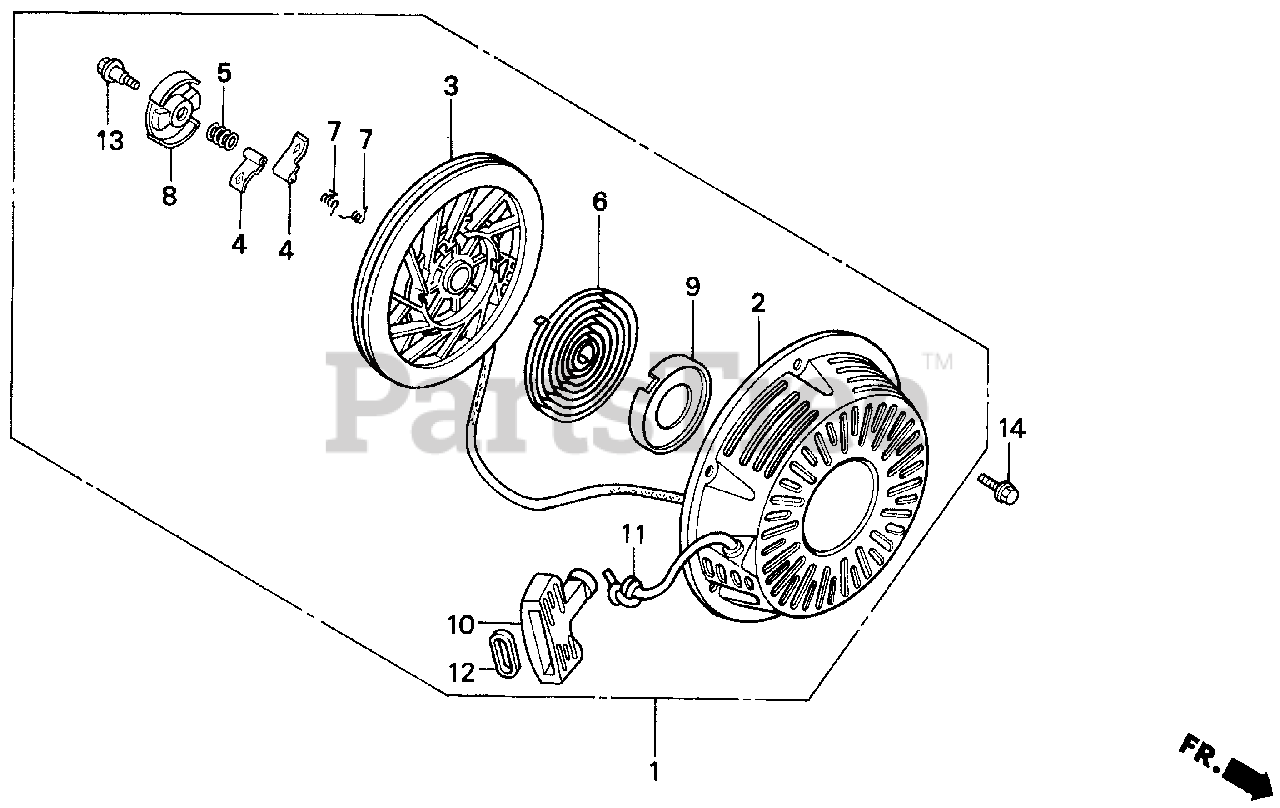

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE2-W01ZA

STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: (Honda Code 3678844).

$

$

Currently unavailable

1

Honda 28400-ZE2-W01ZB

STARTER ASSY., RECOIL *NH1* (BLACK)
(Superseded to 28400-ZE2-W02ZB)

Note: (Honda Code 4220315).

$118.99

$

In Stock, only 2 left!

0

1

Honda 28400-ZE2-W01ZD

STARTER ASSY., RECOIL *T41* (BARTELL BLUE)

Note: (Honda Code 4761920).

$

$

Currently unavailable

2

Honda 28410-ZE2-W01ZA

CASE, RECOIL STARTER *R8* (BRIGHT RED)
(Superseded to 28410-ZE2-W01ZN)

Note: (Honda Code 3678851).

$153.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE2-W01ZB

CASE, RECOIL STARTER *NH1* (BLACK)

Note: (Honda Code 4220323).

$180.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE2-W01ZD

CASE, RECOIL STARTER *T41* (BARTELL BLUE)

Note: (Honda Code 4761979).

$211.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZE2-W01

PULLEY, RECOIL STARTER

Note: (Honda Code 3678869).

$48.99

$

In Stock, only 2 left!

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

Note: (Honda Code 3678877).

$8.99

$

In Stock, only 4 left!

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

Note: (Honda Code 3678885).

$6.99

$

In Stock, Qty 11

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

Note: (Honda Code 3678893).

$21.99

$

In Stock, Qty 5

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

Note: (Honda Code 3678901).

$6.49

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

Note: (Honda Code 3678919).

$16.99

$

Usually ships in 3-6 days

0

9

Honda 28445-ZE2-W01

HOLDER, SPRING

Note: (Honda Code 3678927).

$21.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZE2-W02

GRIP, STARTER
(Superseded to 28461-ZE2-W03)

Note: (Honda Code 6133649).

$9.49

$

In Stock, Qty 10

0

11

Honda 28462-ZE2-W01

ROPE, RECOIL STARTER (#5X55") (NA USE ALT:08550-ZG921-11)

Note: Use up to Engine SN 1413598. (Honda Code 3678968).

$

$

Currently unavailable

11

Honda 28462-ZE2-W11

ROPE, RECOIL STARTER (#5X55")

Note: Use from Engine SN 1413599. (Honda Code 6139729).

$12.99

$

In Stock, only 2 left!

0

12

Honda 28469-ZE2-W01

GRIP, REINFORCEMENT

Note: Use up to Engine SN 1413598. (Honda Code 3678976).

$7.99

$

In Stock, only 2 left!

0

13

Honda 90004-ZE2-W01

SCREW, CENTER

Note: (Honda Code 3679024).

$4.99

$

In Stock, Qty 9

0

14

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

Note: (Honda Code 6437289).

$2.49

$

In Stock, Qty 20+

0

14

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: (Honda Code 2581353).

$4.99

$

In Stock, Qty 20+

0
