GX270 QSC (GCAB) - Honda Engine, Made in Japan (SN: GCAB-1000001 - GCAB-1999999) AIR CLEANER (CYCLONE) Parts Diagram

Engine, Made in Japan

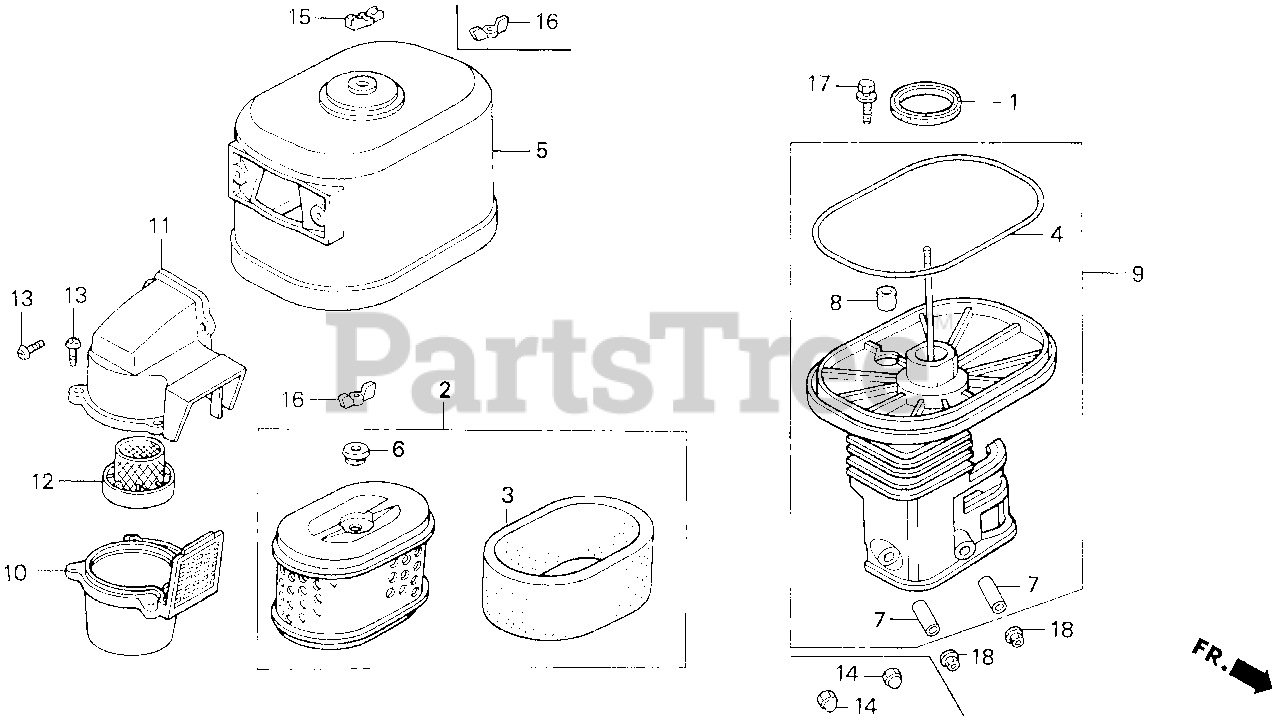

AIR CLEANER (CYCLONE) Parts Diagram

  • Title

1

Honda 16271-ZE2-000

GASKET, ELBOW
(Superseded to 16271-ZE2-010)

Note: (Honda Code 2025948).

$3.99

$

In Stock, only 3 left!

0

1

Honda 16271-ZE2-010

GASKET, ELBOW

Note: (Honda Code 7301195).

$3.99

$

In Stock, only 3 left!

0

2

Honda 17210-ZE3-010

ELEMENT, AIR CLEANER
(Superseded to 17210-ZE3-505)

Note: (Honda Code 2893907).

$21.99

$

In Stock, Qty 20+

0

2

Honda 17210-ZE3-505

ELEMENT, AIR CLEANER

Note: (Honda Code 5252697).

$21.99

$

In Stock, Qty 20+

0

3

Honda 17218-ZE3-000

FILTER (OUTER)

Note: (Honda Code 2577377).

$15.99

$

In Stock, only 1 left!

0

3

Honda 17218-ZE3-505

FILTER (OUTER)
(Superseded to 17218-ZE3-000)

Note: (Honda Code 5281449).

$15.99

$

Usually ships in 3-6 days

0

4

Honda 17219-HA2-405

SEAL, AIR CLEANER COVER

Note: (Honda Code 2943017).

$9.49

$

In Stock, only 2 left!

0

4

Honda 17219-KL4-000

SEAL, AIR CLEANER COVER
(Superseded to 17219-HA2-405)

Note: (Honda Code 1732429).

$9.49

$

In Stock, only 2 left!

0

5

Honda 17230-ZE3-841

COVER, AIR CLEANER (CYCLONE)

Note: (Honda Code 2660488).

$51.99

$

In Stock, only 2 left!

0

6

Honda 17232-891-000

GROMMET, AIR CLEANER

Note: (Honda Code 0999763).

$6.99

$

In Stock, Qty 20+

0

7

Honda 17238-ZE2-310

COLLAR, AIR CLEANER

Note: (Honda Code 2384105).

$5.49

$

In Stock, only 2 left!

0

8

Honda 17239-ZE3-840

COLLAR B, AIR CLEANER

Note: (Honda Code 2871424).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 17410-ZE3-840

ELBOW, AIR CLEANER
(Superseded to 17410-ZE3-841)

Note: (Honda Code 2660496).

$41.99

$

In Stock, only 2 left!

0

10

Honda 17470-ZE3-841

CASE, PRE AIR CLEANER
(Superseded to 17470-ZE3-842)

Note: (Honda Code 2660504).

$31.99

$

In Stock, only 2 left!

0

11

Honda 17475-ZE3-841

CAP, PRE AIR CLEANER

Note: (Honda Code 2660512).

$31.99

$

In Stock, only 2 left!

0

12

Honda 17476-ZE3-841

GUIDE, PRE AIR CLEANER

Note: (Honda Code 2660520).

$21.99

$

In Stock, only 2 left!

0

13

Honda 90142-MB0-000

SCREW, PAN (5X16.5)

Note: (Honda Code 1251040).

$3.99

$

In Stock, only 4 left!

0

15

Honda 90203-ZA0-800

WINGNUT (6MM)

Note: Use up to Engine SN 1094660. (Honda Code 1742238).

$4.99

$

In Stock, Qty 13

0

16

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING

Note: Use up to Engine SN 1094660. (Honda Code 0127720).

$6.49

$

In Stock, Qty 20+

0

16

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING

Note: Use from Engine SN 1094661. (Honda Code 0127720).

$6.49

$

In Stock, Qty 20+

0

17

Honda 93404-06020-08

BOLT-WASHER (6X20)

Note: (Honda Code 2410694).

$2.49

$

In Stock, only 4 left!

0

18

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
