GX270 RA (GCAB) - Honda Engine, Made in Japan (SN: GCAB-1000001 - GCAB-1999999) QAE CRANKCASE COVER Parts Diagram

Engine, Made in Japan

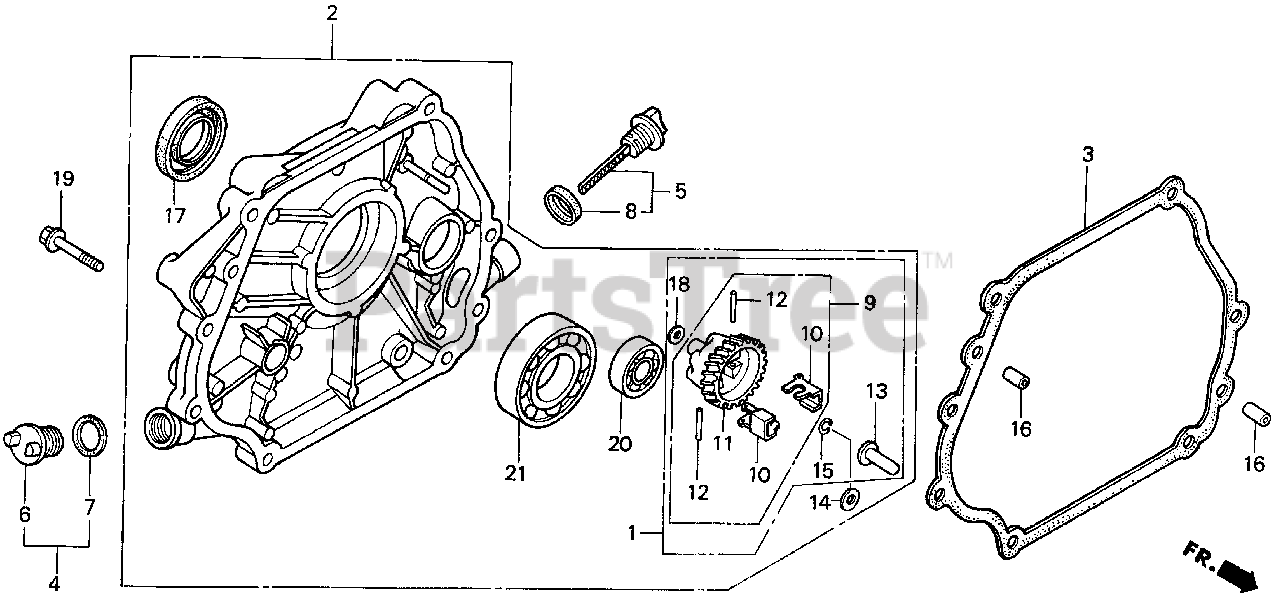

QAE CRANKCASE COVER Parts Diagram

  • Title

1

Honda 06165-ZE2-811

GOVERNOR KIT (BALANCER)
(Superseded to 06165-ZE2-813)

Note: (Optional). (Honda Code 3689460).

$21.99

$

Usually ships in 3-6 days

0

1

Honda 06165-ZE2-812

GOVERNOR KIT (BALANCER)
(Superseded to 06165-ZE2-813)

Note: (Optional). (Honda Code 7086382).

$21.99

$

Usually ships in 3-6 days

0

1

Honda 06165-ZE2-813

GOVERNOR KIT (BALANCER)

Note: (Optional). (Honda Code 7158785).

$21.99

$

Usually ships in 3-6 days

0

2

Honda 11400-ZE2-010

COVER ASSY., CRANKCASE (S-TYPE)(BALANCER)
(Superseded to 11400-Z8S-000)

Note: (Honda Code 3689486).

$113.99

$

Usually ships in 3-6 days

0

2

Honda 11400-ZE2-030

COVER ASSY., CRANKCASE (S-TYPE)(BALANCER)

Note: (Honda Code 7185564).

$

$

Not available

3

Honda 11381-ZE2-800

GASKET, CASE COVER
(Superseded to 11381-ZE2-801)

Note: (Honda Code 3678505).

$13.99

$

In Stock, only 2 left!

0

3

Honda 11381-ZE2-801

GASKET, CASE COVER

Note: (Honda Code 6436851).

$13.99

$

In Stock, only 2 left!

0

5

Honda 15600-735-003

CAP ASSY., OIL FILLER

Note: (Honda Code 4523106).

$10.99

$

In Stock, Qty 9

0

5

Honda 15600-735-700

CAP ASSY., OIL FILLER

Note: Use up to Engine SN 1071798. (Honda Code 2094886).

$

$

Currently unavailable

6

Honda 15620-ZG4-910

CAP, OIL FILLER

Note: (Honda Code 3678596).

$5.49

$

Usually ships in 3-6 days

0

7

Honda 15621-896-010

GASKET, OIL FILLER CAP

Note: (Honda Code 1033042).

$6.49

$

In Stock, only 3 left!

0

8

Honda 15625-ZE1-000

GASKET, OIL FILLER CAP
(Superseded to 15625-ZE1-003)

Note: (Honda Code 1427079).

$3.99

$

In Stock, Qty 20+

0

8

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

Note: (Honda Code 4497947).

$3.99

$

In Stock, Qty 20+

0

9

Honda 16510-ZE2-811

GOVERNOR ASSY. (BALANCER)

Note: (Honda Code 3690005).

$30.99

$

Usually ships in 3-6 days

0

10

Honda 16511-ZE2-000

WEIGHT, GOVERNOR

Note: (Honda Code 2025955).

$4.49

$

Usually ships in 3-6 days

0

11

Honda 16512-ZE2-811

HOLDER, GOVERNOR WEIGHT

Note: (Honda Code 3682010).

$21.99

$

Usually ships in 3-6 days

0

12

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

Note: (Honda Code 2025971).

$2.99

$

Usually ships in 3-6 days

0

13

Honda 16531-ZE2-000

SLIDER, GOVERNOR
(Superseded to 16531-Z0A-000)

Note: (Honda Code 2025989).

$4.49

$

In Stock, only 2 left!

0

13

Honda 16531-Z0A-000

SLIDER, GOVERNOR

Note: (Honda Code 6605117).

$4.49

$

In Stock, only 2 left!

0

14

Honda 90473-147-000

WASHER (6X16)

Note: Use up to Engine SN 1064745. (Honda Code 0465591).

$1.99

$

In Stock, only 4 left!

0

15

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

Note: (Honda Code 2456697).

$1.99

$

In Stock, Qty 11

0

15

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

Note: (Optional). (Honda Code 2456697).

$1.99

$

In Stock, Qty 11

0

15

Honda 90602-896-000

CLIP, GOVERNOR HOLDER
(Superseded to 90602-ZE1-000)

Note: (Optional). (Honda Code 0928101).

$1.99

$

In Stock, Qty 11

0

16

Honda 90701-HC4-000

PIN, DOWEL (8X12)

Note: (Honda Code 2978443).

$4.49

$

In Stock, Qty 12

0

17

Honda 91201-890-003

OIL SEAL (30X46X8)

Note: (Honda Code 0756494).

$13.99

$

In Stock, only 1 left!

0

18

Honda 94101-06800

WASHER, PLAIN (6MM)

Note: (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

19

Honda 95701-08035-00

BOLT, FLANGE (8X35)

Note: (Honda Code 2724029).

$3.49

$

In Stock, Qty 20+

0

20

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

Note: (Honda Code 0708941).

$13.99

$

In Stock, only 2 left!

0

21

Honda 96100-62060-00

BEARING, RADIAL BALL (6206)

Note: (Honda Code 0636118).

$22.99

$

In Stock, only 2 left!

0
