GX270 RT2 VDE2 (GCBGT) - Honda Engine, Made in Thailand (SN: GCBGT-1000001 - GCBGT-9999999) AIR CLEANER Parts Diagram

Engine, Made in Thailand

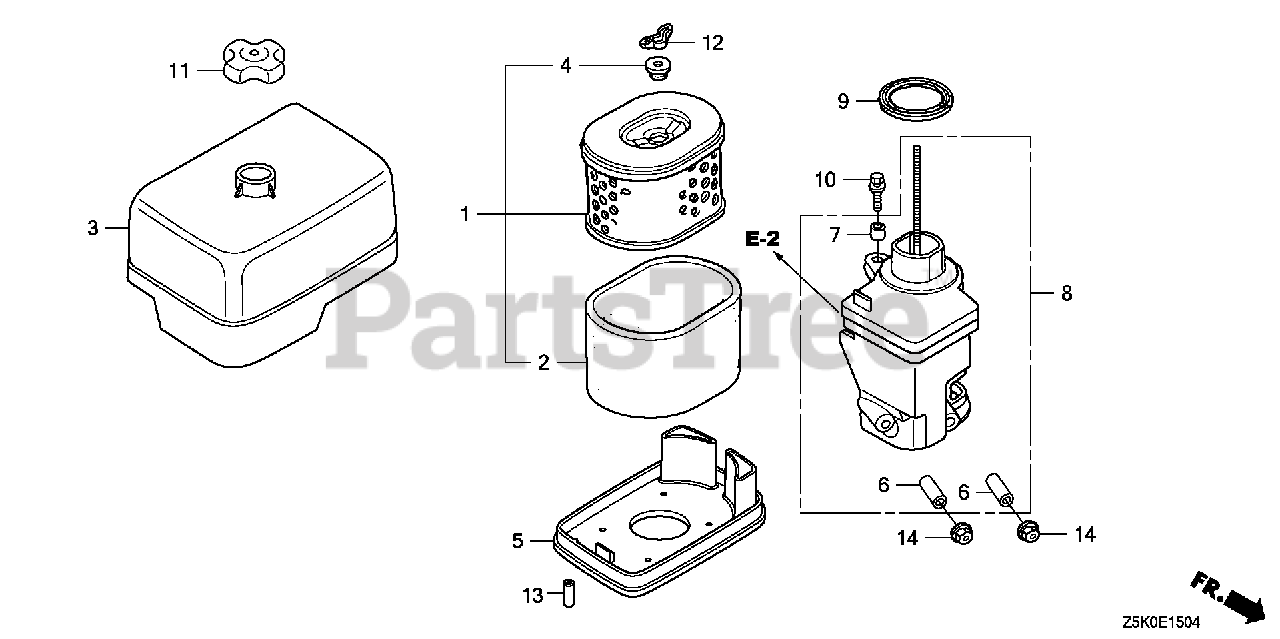

AIR CLEANER Parts Diagram

  • Title

1

Honda 17210-ZE2-515

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (DUAL)

$15.99

$

In Stock, Qty 14

0

1

Honda 17210-ZE2-822

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER (DUAL)
(Superseded to 17210-ZE2-515)

$15.99

$

In Stock, Qty 14

0

2

Honda 17218-ZE2-505

FILTER (OUTER)
(Superseded to 17218-ZE2-821)

$

$

Not available

3

Honda 17231-Z5K-000

COVER, AIR CLEANER HOUSING

$4.99

$

In Stock, Qty 8

0

4

Honda 17232-891-000

GROMMET, AIR CLEANER

$5.49

$

In Stock, Qty 11

0

5

Honda 17235-Z5K-800

NOSE, MUFFLER

$17.99

$

Usually ships in 3-6 days

0

6

Honda 17238-ZE2-310

COLLAR, AIR CLEANER

$4.49

$

In Stock, Qty 12

0

7

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER

$4.49

$

In Stock, Qty 9

0

8

Honda 17410-Z5K-020

ELBOW, AIR CLEANER

$11.99

$

Usually ships in 3-6 days

0

9

Honda 17417-Z5T-000

GASKET, AIR CLEANER HOUSING

$0.99

$

In Stock, Qty 10

0

10

Honda 90009-Z1C-000

BOLT-WASHER (6X22)

$2.49

$

In Stock, Qty 5

0

11

Honda 90202-Z2E-000

NUT, AIR CLEANER COVER

$7.99

$

In Stock, Qty 15

0

12

Honda 90325-044-000

NUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0

13

Honda 90634-ZL8-H00

CAP, SEALING

$5.49

$

Usually ships in 3-6 days

0

14

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
