GX270 U QAW (GCALK) - Honda Engine, Made in Japan (SN: GCALK-1000001 - GCALK-9999999) MUFFLER (3) Parts Diagram

Engine, Made in Japan

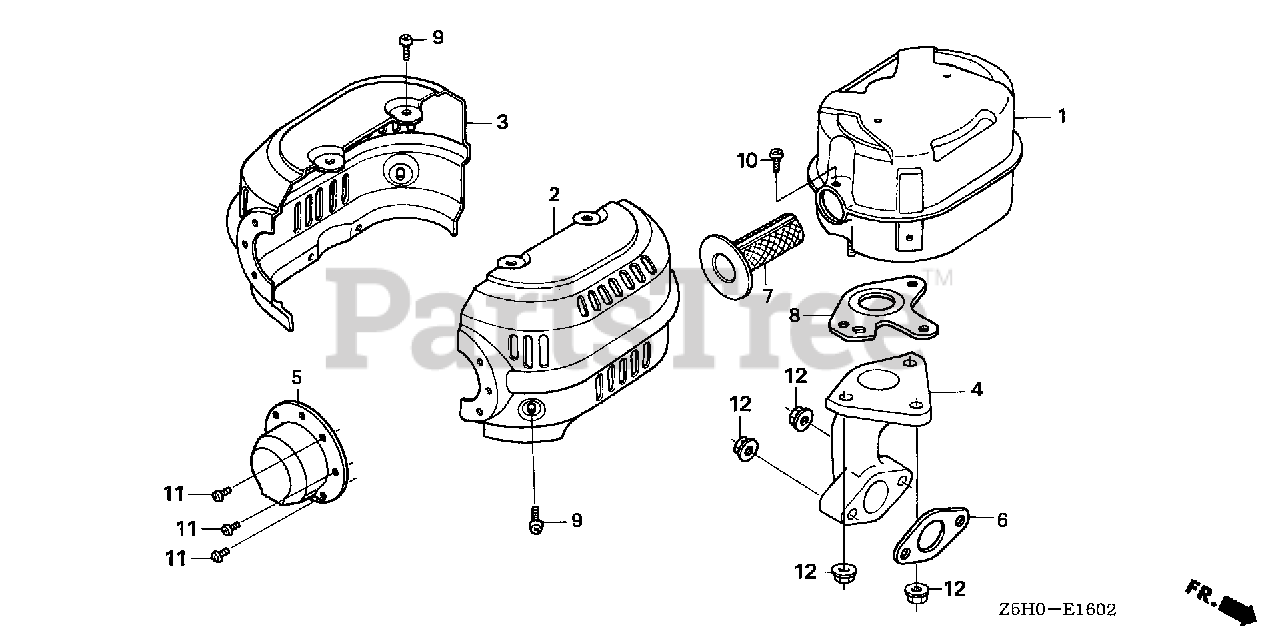

MUFFLER (3) Parts Diagram

  • Title

1

Honda 18310-ZE2-013

SEE PART DETAILS - PRI; MUFFLER

$84.99

$

Usually ships in 3-6 days

0

2

Honda 18320-ZE2-P31

SEE PART DETAILS - PRI; PROTECTOR, R. MUFFLER (STD)

$40.99

$

Usually ships in 3-6 days

0

3

Honda 18325-ZE2-P30

PROTECTOR, L. MUFFLER (STD)

$52.99

$

Usually ships in 3-6 days

0

4

Honda 18330-ZE2-000

PIPE, EX. (Honda Code 2026219).

$65.99

$

In Stock, only 1 left!

0

5

Honda 18331-ZE2-810

CAP, MUFFLER (Honda Code 2026227).

$10.99

$

In Stock, only 1 left!

0

6

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE Use up to Engine SN 2949254.
(Superseded to 18333-ZK6-Y00)

$4.99

$

In Stock, Qty 10

0

6

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER) (Honda Code 5164199).

$4.99

$

In Stock, Qty 10

0

7

Honda 18355-ZE2-W00

ARRESTER, SPARK

Note: (Optional).

$50.99

$

In Stock, only 2 left!

0

7

Honda 18355-ZE2-010

SEE PART DETAILS - PRI; ARRESTER, SPARK (Honda Code 2482594).

$23.99

$

Usually ships in 3-6 days

0

8

Honda 18381-ZE2-W10

SEE PART DETAILS - PRI; GASKET, MUFFLER (ARRESTER) (Honda Code 3678802).

$11.99

$

In Stock, only 2 left!

0

9

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

$1.99

$

In Stock, Qty 20+

0

10

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

$1.99

$

In Stock, Qty 20+

0

10

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (TO INSTALL OPTIONAL SPARK ARRESTER)

Note: (Optional).

$0.99

$

In Stock, Qty 20+

0

11

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (TO INSTALL OPTIONAL SPARK ARRESTER)

$0.99

$

In Stock, Qty 20+

0

12

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0
