GX270 UH QXC9 (GCAGH) - Honda Engine, Made in China (SN: GCAGH-0000001 - GCAGH-9999999) CRANKCASE COVER Parts Diagram

Engine, Made in China

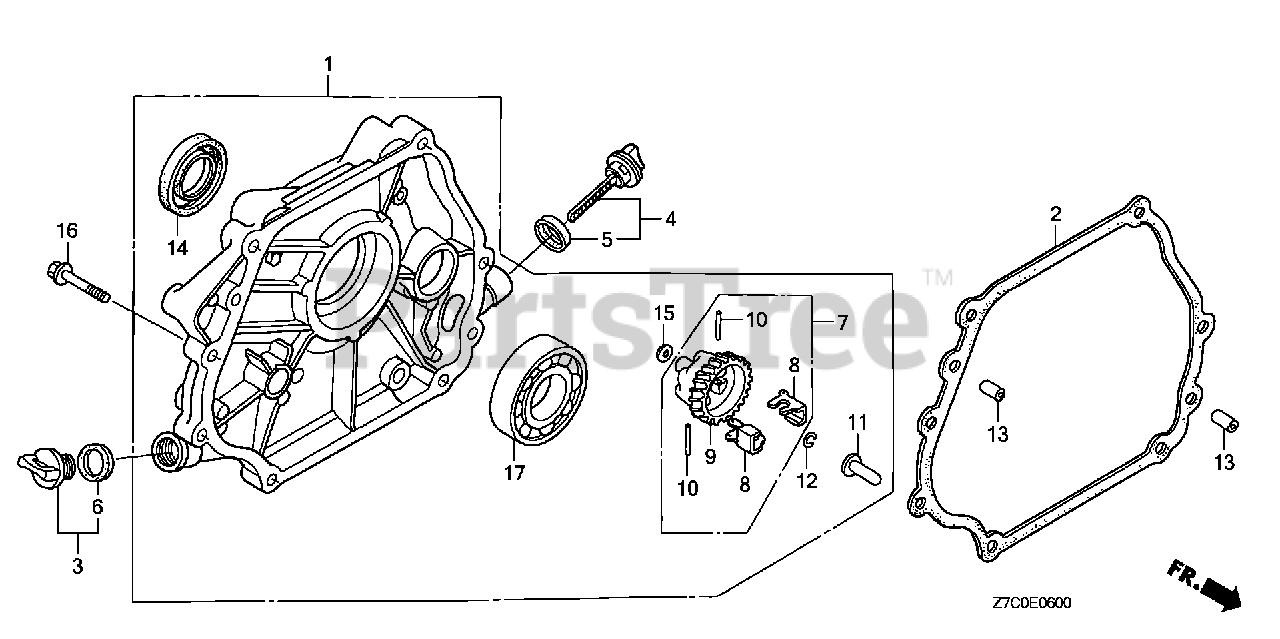

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-Z7B-800

COVER ASSY., CRANKCASE

$

$

Not available

2

Honda 11381-ZE2-801

GASKET, CASE COVER

$11.99

$

In Stock, only 3 left!

0

3

Honda 15600-ZG4-003

CAP ASSY., OIL FILLER

$6.99

$

In Stock, only 3 left!

0

4

Honda 15600-Z7E-000

CAP ASSY., OIL FILLER

$6.99

$

Usually ships in 3-6 days

0

5

Honda 15625-Z0T-800

GASKET, OIL FILLER CAP

$4.99

$

In Stock, only 2 left!

0

6

Honda 15625-Z1T-000

GASKET, OIL FILLER CAP

$3.99

$

Usually ships in 3-6 days

0

7

Honda 16510-Z7B-000

GOVERNOR ASSY.

$17.99

$

Usually ships in 3-6 days

0

8

Honda 16511-ZE2-000

WEIGHT, GOVERNOR

$3.99

$

Usually ships in 3-6 days

0

9

Honda 16512-Z7B-000

HOLDER, GOVERNOR WEIGHT

$13.99

$

Usually ships in 3-6 days

0

10

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

11

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, Qty 5

0

12

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 11

0

13

Honda 90701-Z7E-000

PIN, DOWEL (8X12)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 91201-Z7B-003

OIL SEAL (30X46X8)

$11.99

$

Usually ships in 3-6 days

0

15

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

16

Honda 95701-08035-00

BOLT, FLANGE (8X35)

$2.99

$

In Stock, only 3 left!

0

17

Honda 96100-62060-00

BEARING, RADIAL BALL (6206)

$30.99

$

In Stock, only 1 left!

0
