GX270 UH QXC9 (GCAGH) - Honda Engine, Made in China (SN: GCAGH-0000001 - GCAGH-9999999) PISTON + CONNECTING ROD Parts Diagram

Engine, Made in China

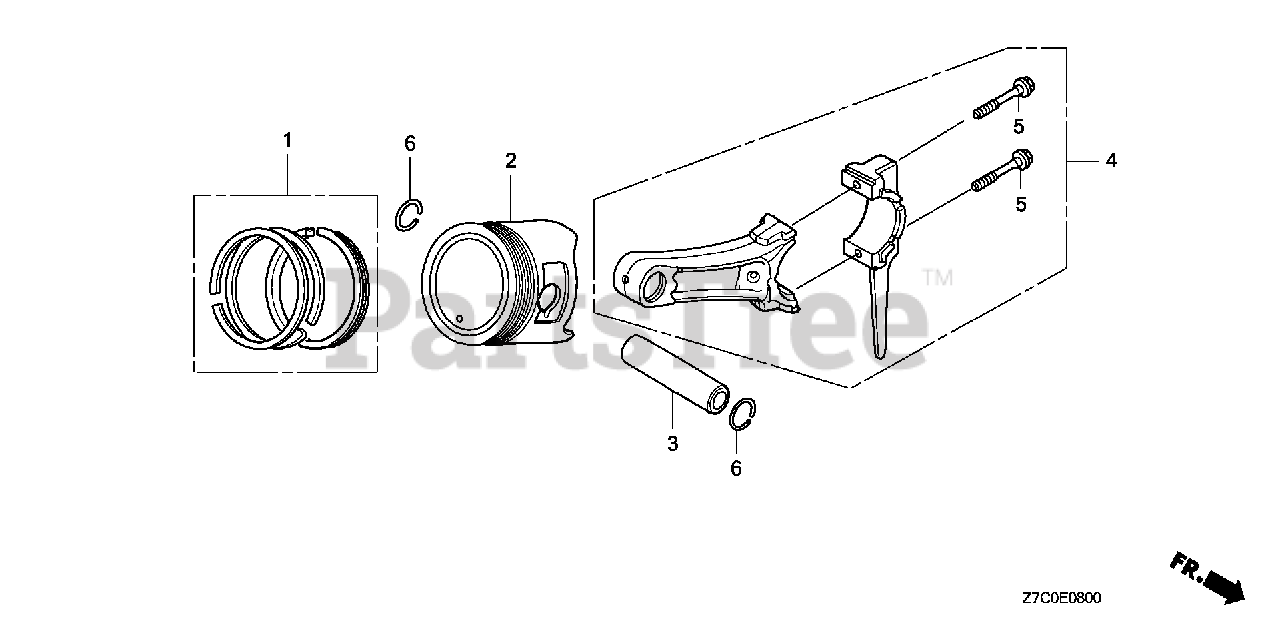

PISTON + CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-Z5H-004

RING SET, PISTON (STD) (TPR)

$44.99

$

In Stock, only 2 left!

0

1

Honda 13011-Z5H-004

RING SET, PISTON (0.25) (TPR)

Note: (Optional).

$36.99

$

Usually ships in 3-6 days

0

1

Honda 13012-Z5H-004

RING SET, PISTON (0.50) (TPR)

Note: (Optional).

$44.99

$

Usually ships in 3-6 days

0

1

Honda 13013-Z5H-004

RING SET, PISTON (0.75) (TPR)

Note: (Optional).

$46.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZH9-010

PISTON (STD)

Note: Use up to Engine SN 0000007.

$67.99

$

Usually ships in 3-6 days

0

2

Honda 13101-Z7B-800

PISTON (STD)

Note: Use from Engine SN 0000008.

$64.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZH9-010

PISTON (0.25)

Note: (Optional).

$67.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZH9-010

PISTON (0.50)

Note: (Optional).

$

$

Not available

2

Honda 13104-ZH9-010

PISTON (0.75)

Note: (Optional). Use up to Engine SN 0000007.

$

$

Not available

2

Honda 13104-Z7B-800

PISTON (0.75)

Note: (Optional). Use from Engine SN 0000008.

$67.99

$

Usually ships in 3-6 days

0

3

Honda 13111-Z7B-000

PIN, PISTON

$

$

Not available

4

Honda 13200-ZE2-305

ROD ASSY., CONNECTING (0.25 LOWER SIZE)

Note: (Optional).

$138.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z1D-000

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (STD)
(Superseded to 13200-Z1D-900)

$34.99

$

In Stock, only 2 left!

0

4

Honda 13200-Z1D-900

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD)

$34.99

$

In Stock, only 2 left!

0

5

Honda 90001-ZE8-000

BOLT, CONNECTING ROD

$4.99

$

In Stock, only 4 left!

0

6

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

$1.99

$

In Stock, Qty 12

0
