GX270 UH QXC9 (GCAGH) - Honda Engine, Made in China (SN: GCAGH-0000001 - GCAGH-9999999) RECOIL STARTER Parts Diagram

Engine, Made in China

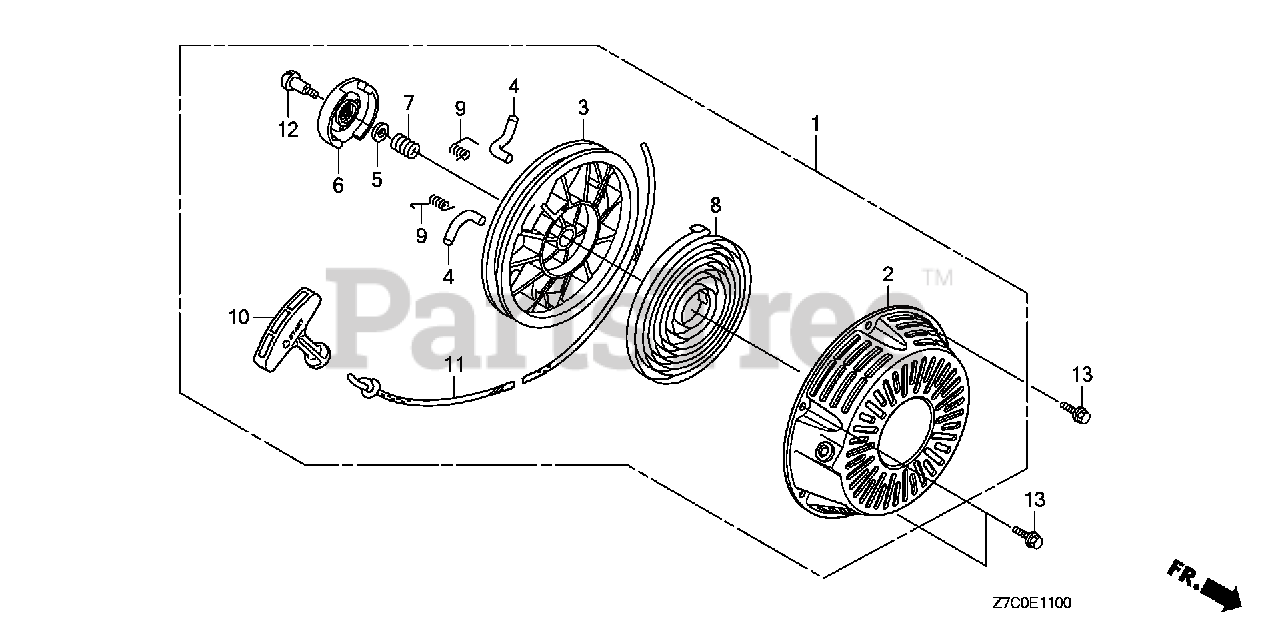

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-Z7B-003ZA

STARTER ASSY., RECOIL *R280* (POWER RED)

$128.99

$

Usually ships in 3-6 days

0

1

Honda 28400-Z7B-003ZB

STARTER ASSY., RECOIL *NH1* (BLACK)

$128.99

$

Usually ships in 3-6 days

0

2

Honda 28410-Z7B-003ZA

CASE, RECOIL STARTER *R280* (POWER RED)

$66.99

$

Usually ships in 3-6 days

0

2

Honda 28410-Z7B-003ZB

CASE, RECOIL STARTER *NH1* (BLACK)

$66.99

$

Usually ships in 3-6 days

0

3

Honda 28420-Z7B-003

REEL, RECOIL STARTER

$40.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZH8-801

RATCHET, STARTER

$6.49

$

In Stock, Qty 6

0

5

Honda 28431-ZH8-801

PLATE, FRICTION

$5.49

$

In Stock, only 2 left!

0

6

Honda 28433-Z2E-003

GUIDE, RATCHET

$9.99

$

Usually ships in 3-6 days

0

7

Honda 28441-Z2E-003

SPRING, FRICTION

$3.99

$

Usually ships in 3-6 days

0

8

Honda 28442-Z7E-003

SPRING, RECOIL STARTER

$23.99

$

Usually ships in 3-6 days

0

9

Honda 28443-ZH8-801

SPRING, RETURN

$3.49

$

In Stock, only 1 left!

0

10

Honda 28461-Z2E-003

GRIP, STARTER

$3.99

$

Usually ships in 3-6 days

0

11

Honda 28462-Z7B-003

ROPE, RECOIL STARTER

$

$

Not available

12

Honda 90003-ZH8-801

SCREW, SETTING

$4.49

$

In Stock, only 3 left!

0

13

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0
