GX270 UT2 HEA2/A (GCBGT) - Honda Engine, Made in Thailand (SN: GCBGT-2000001 - GCBGT-9999999) REDUCTION (1/6) Parts Diagram

Engine, Made in Thailand

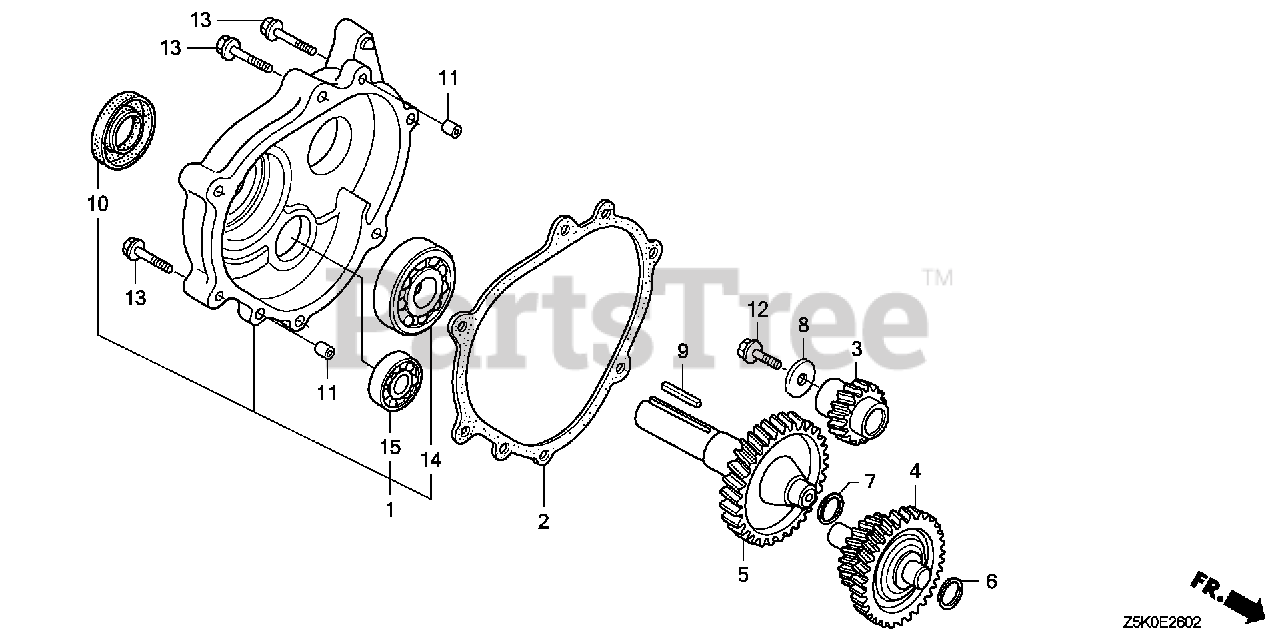

REDUCTION (1/6) Parts Diagram

  • Title

1

Honda 11500-Z8S-620

COVER ASSY., REDUCTION CASE

$72.99

$

Usually ships in 3-6 days

0

2

Honda 11521-ZE2-800

SEE PART DETAILS - PRI; GASKET, CHAIN CASE COVER (Honda Code 3678513).

$11.99

$

In Stock, only 1 left!

0

3

Honda 22103-ZE2-620

GEAR, PRIMARY DRIVE (17T) (Honda Code 2026284).

$57.99

$

Usually ships in 3-6 days

0

4

Honda 23220-ZE2-621

SEE PART DETAILS - PRI; COUNTERSHAFT (Honda Code 3682044).

$171.99

$

Usually ships in 3-6 days

0

5

Honda 23710-ZE2-621

SEE PART DETAILS - PRI; SHAFT, P.T.O. (H-TYPE)

$215.99

$

Usually ships in 3-6 days

0

6

Honda 90401-ZE2-620

SHIM A (Honda Code 3499753).

$1.99

$

Usually ships in 3-6 days

0

7

Honda 90402-ZE2-620

SHIM B (Honda Code 3499761).

$1.99

$

Usually ships in 3-6 days

0

8

Honda 90473-842-000

WASHER (8MM) (Honda Code 0323295).

$1.99

$

In Stock, Qty 5

0

9

Honda 90745-ZE2-600

KEY (6.3X6.3X43) (Honda Code 2027167).

$16.99

$

Usually ships in 3-6 days

0

10

Honda 91201-Z1D-003

OIL SEAL (30X46X8) (NOK ASIA)

$11.99

$

Usually ships in 3-6 days

0

11

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 14

0

12

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, Qty 5

0

13

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.

$1.49

$

In Stock, only 4 left!

0

14

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206) (Honda Code 0636118).

$28.99

$

Usually ships in 3-6 days

0

15

Honda 96100-63020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6302) (Honda Code 0834176).

$10.99

$

Usually ships in 3-6 days

0
