GX270 UT2 QZMD/A (GCBGT) - Honda Engine, Made in Thailand (SN: GCBGT-2000001 - GCBGT-2258490) CARBURETOR (4) Parts Diagram

Engine, Made in Thailand

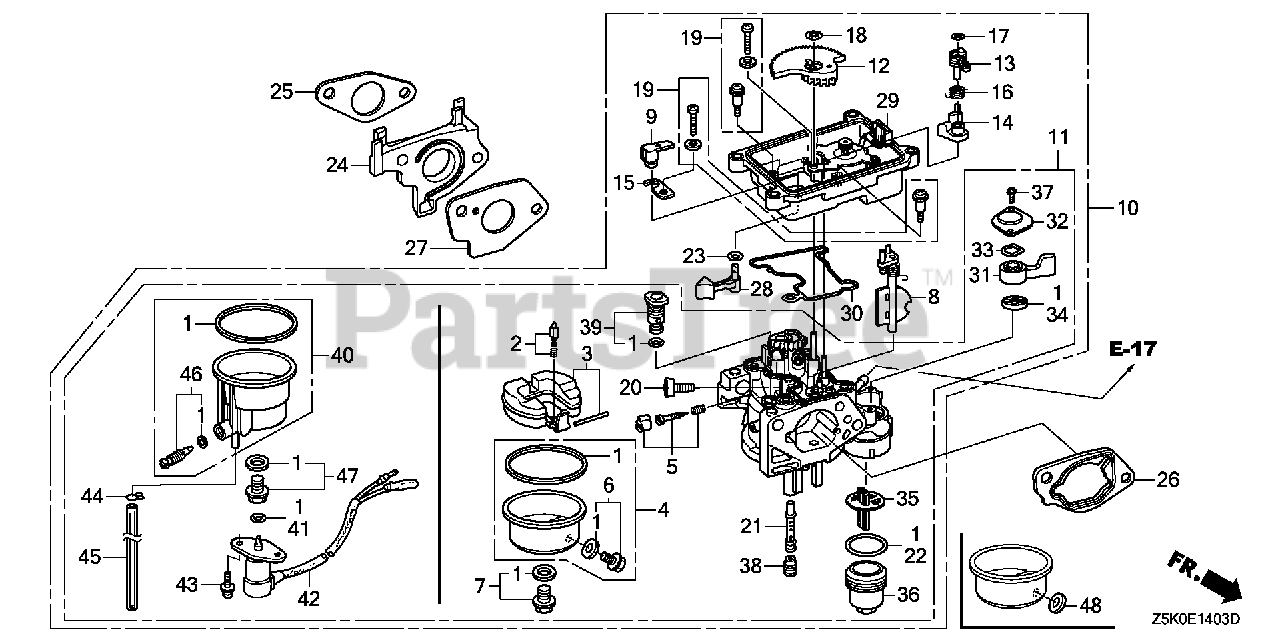

CARBURETOR (4) Parts Diagram

  • Title

1

Honda 16010-ZE2-812

SEE PART DETAILS - PRI; GASKET SET (INCLUDE 16173-001-004) (INCLUDES 16173-001-004)

$17.99

$

In Stock, Qty 10

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$40.99

$

In Stock, only 2 left!

0

3

Honda 16013-Z1C-003

FLOAT SET (CARBURETOR NO.)

$39.99

$

Usually ships in 3-6 days

0

4

Honda 16015-Z5T-901

CHAMBER SET, FLOAT

$26.99

$

In Stock, only 1 left!

0

5

Honda 16016-Z1E-V21

SCREW SET (CARBURETOR NO.)

$3.99

$

Usually ships in 3-6 days

0

6

Honda 16024-Z5T-901

SCREW SET, DRAIN

$9.49

$

Usually ships in 3-6 days

0

7

Honda 16028-Z5T-901

SCREW SET (CARBURETOR NO.)

$4.99

$

In Stock, only 1 left!

0

8

Honda 16044-Z5K-W21

CHOKE SET

$9.49

$

Usually ships in 3-6 days

0

9

Honda 16045-Z5T-W01

ARM, MANUAL START

$11.99

$

Usually ships in 3-6 days

0

10

Honda 16100-Z5K-W23

CARBURETOR ASSY. (BEC3A A)

$408.99

$

Usually ships in 3-6 days

0

11

Honda 16110-Z5K-W22

CARBURETOR SET

$100.99

$

Usually ships in 3-6 days

0

12

Honda 16111-Z5K-W21

GEAR, MIDDLE

$66.99

$

Usually ships in 3-6 days

0

13

Honda 16112-Z5T-W01

ARM, CHOKE

$3.49

$

Usually ships in 3-6 days

0

14

Honda 16113-Z5T-W01

LEVER, CHOKE CONTROL

$14.99

$

Usually ships in 3-6 days

0

15

Honda 16115-Z5T-W01

PLATE

$11.99

$

Usually ships in 3-6 days

0

16

Honda 16116-Z5T-W01

SPRING, TORSION COIL

$4.99

$

Usually ships in 3-6 days

0

17

Honda 16117-Z5T-W01

CLIP, SPECIAL

$5.49

$

Usually ships in 3-6 days

0

18

Honda 16118-Z5T-W01

CLIP, SPECIAL

$2.49

$

In Stock, only 1 left!

0

19

Honda 16119-Z5T-W01

SCREW SET

$3.49

$

Usually ships in 3-6 days

0

20

Honda 16124-Z5T-W01

SCREW, STOP

$10.99

$

Usually ships in 3-6 days

0

21

Honda 16166-Z5T-W23

NOZZLE, MAIN

$

$

Currently unavailable

22

Honda 16173-001-004

GASKET, FUEL STRAINER CUP (Honda Code 0005652).

$6.99

$

In Stock, Qty 6

0

23

Honda 16178-ZJ0-911

O-RING (CARBURETOR NO.)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 16211-Z5K-W00

INSULATOR, CARBURETOR

$23.99

$

In Stock, only 1 left!

0

25

Honda 16212-Z5K-000

GASKET, INSULATOR

$0.99

$

In Stock, Qty 17

0

26

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

$11.99

$

In Stock, Qty 20+

0

27

Honda 16221-Z5K-000

GASKET, CARBURETOR

$0.99

$

In Stock, Qty 20+

0

28

Honda 16612-Z5T-W01

LEVER, MANUAL START

$7.99

$

Usually ships in 3-6 days

0

29

Honda 16646-Z5T-W01

CASE, MOTOR

$218.99

$

Usually ships in 3-6 days

0

30

Honda 16648-Z5T-W01

U-RING

$3.99

$

In Stock, only 2 left!

0

31

Honda 16953-ZE1-812

LEVER, VALVE (Honda Code 5140876).

$9.49

$

Usually ships in 3-6 days

0

32

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$3.99

$

In Stock, only 1 left!

0

33

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$3.49

$

In Stock, Qty 5

0

34

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

$3.99

$

In Stock, Qty 14

0

35

Honda 16959-Z5T-901

FILTER, CUP (CARBURETOR NO.)

$8.49

$

In Stock, only 1 left!

0

36

Honda 16967-ZE0-811

CUP, FUEL STRAINER (Honda Code 1441583).

$19.99

$

In Stock, only 1 left!

0

37

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

$0.99

$

In Stock, only 4 left!

0

38

Honda 99101-ZH8-0820

SEE PART DETAILS - PRI; JET, MAIN (#82) (Honda Code 5947130).

Note: (Optional)

$7.49

$

Usually ships in 3-6 days

0

38

Honda 99101-ZH8-0850

SEE PART DETAILS - PRI; JET, MAIN (#85) Use up to Engine SN BE81B B.

Note: (Optional)

$7.49

$

Usually ships in 3-6 days

0

38

Honda 99101-ZH8-0880

SEE PART DETAILS - PRI; JET, MAIN (#88) Use up to Engine SN BE81B B.

$7.49

$

In Stock, only 1 left!

0

39

Honda 99204-ZE2-0400

SEE PART DETAILS - PRI; JET SET, PILOT (#40) (ADVENTURE GREEN) (CARBURETOR NO.)

$21.99

$

In Stock, only 3 left!

0

48

Honda 16141-Z0S-003

WASHER, PLAIN (6.2X10.7 DRAIN) (CARBURETOR NO.)

$0.99

$

Usually ships in 3-6 days

0
