GX31 SAT (GCAG) - Honda Engine, Made in Japan (SN: GCAG-1000001 - GCAG-2099999) FLYWHEEL + IGNITION COIL (1) Parts Diagram

Engine, Made in Japan

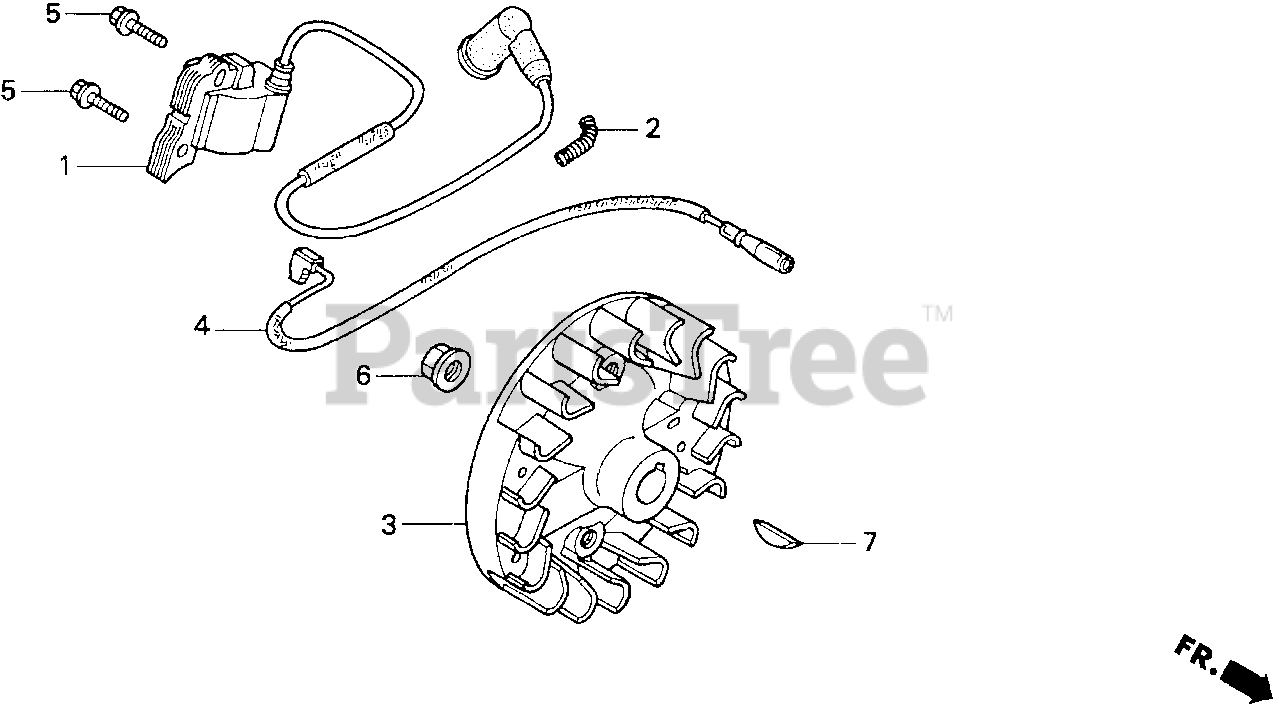

FLYWHEEL + IGNITION COIL (1) Parts Diagram

  • Title

1

Honda 30500-ZM3-003

COIL ASSY., IGNITION

Note: (Honda Code 5383963).

$54.99

$

In Stock, only 1 left!

0

2

Honda 30519-ZM3-000

TUBE A, CORRUGATED (7X18)

Note: (Honda Code 5581467).

$

$

Not available

3

Honda 31110-ZM5-003

FLYWHEEL COMP.

Note: Use up to Engine SN 1040026. (Honda Code 5383989).

$38.99

$

Usually ships in 3-6 days

0

3

Honda 31110-ZM5-013

FLYWHEEL COMP.

Note: Use from Engine SN 1040027. (Honda Code 5700786).

$

$

Not available

4

Honda 32195-ZM3-000

WIRE, STOP SWITCH

Note: (Honda Code 5383997).

$6.49

$

Usually ships in 3-6 days

0

5

Honda 93401-05016-00

BOLT-WASHER (5X16)

Note: (Honda Code 5384599).

$1.99

$

Usually ships in 3-6 days

0

6

Honda 94050-08000

NUT, FLANGE (8MM)

Note: Use up to Engine SN 1040026. (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

6

Honda 94050-10000

NUT, FLANGE (10MM)

Note: Use from Engine SN 1040027. (Honda Code 0483867).

$1.99

$

In Stock, Qty 5

0

7

Honda 94401-16120

KEY, WOODRUFF (16X12)

Note: (Honda Code 0053769).

$1.99

$

In Stock, only 4 left!

0
