GX340 K1 ED6 (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) RECOIL STARTER Parts Diagram

Engine, Made in Japan

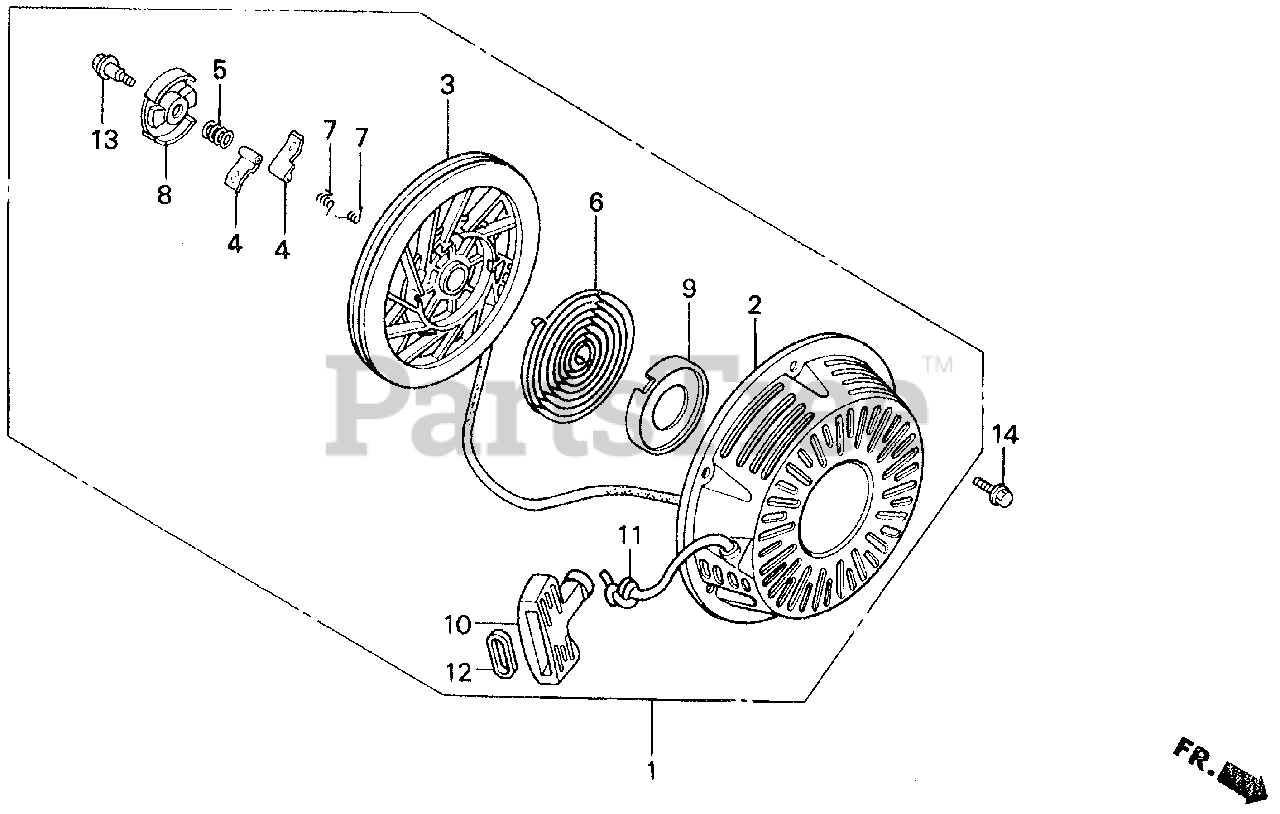

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE3-W01ZK

STARTER ASSY., RECOIL *T68* (TSURUI BLUE)

Note: (Honda Code 4795597).

$

$

Not available

1

Honda 28400-ZE3-W01ZN

STARTER ASSY., RECOIL *T80* (BAKERITE ORANGE)

Note: (Honda Code 6139893).

$131.99

$

In Stock, only 1 left!

0

2

Honda 28410-ZE3-W01ZK

CASE, RECOIL STARTER *T68* (TSURUI BLUE)

Note: (Honda Code 4795613).

$205.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE3-W01ZN

CASE, RECOIL STARTER

Note: (Honda Code 6139901).

$183.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZE3-W01

PULLEY, RECOIL STARTER

Note: (Honda Code 3713328).

$50.99

$

In Stock, only 1 left!

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

Note: (Honda Code 3678877).

$8.49

$

In Stock, Qty 6

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

Note: (Honda Code 3678885).

$6.99

$

In Stock, only 2 left!

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

Note: (Honda Code 3678893).

$20.99

$

In Stock, only 2 left!

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

Note: (Honda Code 3678901).

$5.99

$

In Stock, Qty 5

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

Note: (Honda Code 3678919).

$16.99

$

Usually ships in 3-6 days

0

9

Honda 28445-ZE2-W01

HOLDER, SPRING

Note: (Honda Code 3678927).

$21.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZE2-W02

SEE PART DETAILS - PRI; GRIP, STARTER
(Superseded to 28461-ZE2-W03)

Note: (Honda Code 6133649).

$8.99

$

In Stock, Qty 12

0

11

Honda 28462-ZE3-W01

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER (#6X64") (N/A: USE P/N 08560-ZG921-11)

Note: (Honda Code 3713344).

$16.99

$

In Stock, only 4 left!

0

12

Honda 28469-ZE2-W01

GRIP, REINFORCEMENT

Note: Use up to Engine SN 2951711. (Honda Code 3678976).

$7.49

$

In Stock, only 1 left!

0

13

Honda 90004-ZE2-W01

SCREW, CENTER

Note: (Honda Code 3679024).

$4.99

$

In Stock, Qty 9

0

14

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

Note: (Honda Code 6437289).

$2.49

$

In Stock, Qty 20+

0

14

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8)

Note: (Honda Code 2581353).

$4.99

$

In Stock, Qty 20+

0
