GX340 K1 EDT (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) FUEL TANK Parts Diagram

Engine, Made in Japan

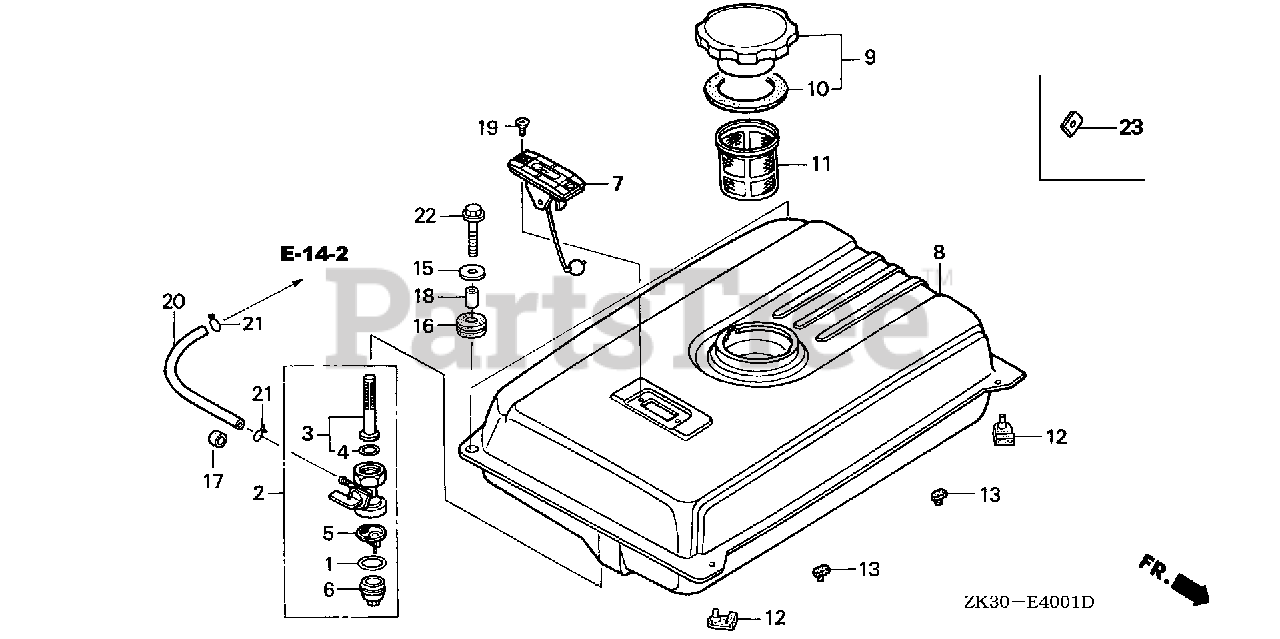

FUEL TANK Parts Diagram

  • Title

1

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.99

$

In Stock, Qty 20+

0

2

Honda 16950-ZB4-015

SEE PART DETAILS - PRI; PETCOCK ASSY.

$111.99

$

In Stock, only 2 left!

0

3

Honda 16952-KJ9-752

SEE PART DETAILS - PRI; SCREEN SET, FUEL STRAINER

$49.99

$

In Stock, only 4 left!

0

3

Honda 16952-ZB4-005

SEE PART DETAILS - SUP; SCREEN SET, FUEL STRAINER
(Superseded to 16952-KJ9-752)

$49.99

$

In Stock, only 4 left!

0

4

Honda 16958-397-771

O-RING (9.0X1.3)

$8.49

$

In Stock, only 2 left!

0

5

Honda 16959-471-831

FILTER, CUP

$13.99

$

In Stock, Qty 5

0

6

Honda 16967-GA6-671

CUP, FUEL STRAINER

$34.99

$

In Stock, only 2 left!

0

7

Honda 17505-ZB2-003

SEE PART DETAILS - SUP; METER ASSY., FUEL
(Superseded to 17505-ZB2-013)

$29.99

$

In Stock, only 2 left!

0

8

Honda 17510-ZB4-000ZE

TANK, FUEL *T68* (TSURUMI BLUE)

$404.99

$

Usually ships in 3-6 days

0

9

Honda 17620-899-013

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-899-023)

$46.99

$

In Stock, only 2 left!

0

10

Honda 17631-899-000

GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$8.99

$

In Stock, only 4 left!

0

11

Honda 17670-899-000

FILTER, FUEL

$23.99

$

In Stock, only 2 left!

0

12

Honda 50319-ZB2-000

RUBBER, TANK MOUNTING

$5.99

$

Usually ships in 3-6 days

0

13

Honda 76122-952-000

STOPPER, DISCHARGE GUARD

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90503-898-000

WASHER, TANK CUSHION

$3.49

$

In Stock, only 2 left!

0

16

Honda 90851-898-000

RUBBER, TANK CUSHION

$6.49

$

In Stock, only 1 left!

0

17

Honda 90854-ZB2-000

RUBBER, FUEL (9X15X10)

$4.99

$

Usually ships in 3-6 days

0

18

Honda 91551-898-000

COLLAR, TANK CUSHION

$6.49

$

Usually ships in 3-6 days

0

19

Honda 93600-05010-0A

SCREW, FLAT (5X10)

$1.49

$

In Stock, Qty 7

0

20

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X150)

$59.99

$

In Stock, Qty 8

0

21

Honda 95002-02080

CLIP, TUBE (B8)

$2.99

$

In Stock, Qty 20+

0

22

Honda 95701-06022-00

BOLT, FLANGE (6X22)

$2.99

$

In Stock, only 3 left!

0
