GX340 K1 EDT (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) IGNITION COIL Parts Diagram

Engine, Made in Japan

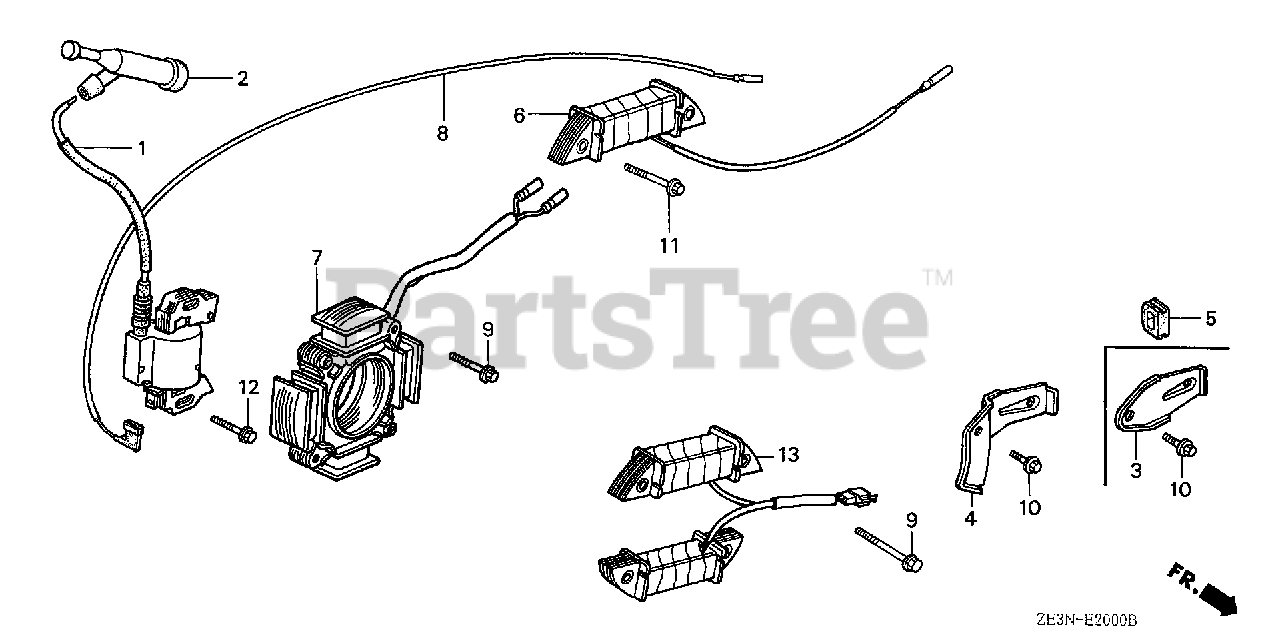

IGNITION COIL Parts Diagram

  • Title

1

Honda 30500-ZE2-023

SEE PART DETAILS - SUP; COIL ASSY., IGNITION

Note: (Honda Code 4545927).

$63.99

$

In Stock, only 2 left!

0

1

Honda 30500-ZF6-W02

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

Note: (Honda Code 7032428).

$63.99

$

In Stock, only 2 left!

0

2

Honda 30700-ZE1-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

Note: (Honda Code 3526837).

$26.99

$

In Stock, only 2 left!

0

4

Honda 31511-ZE3-000

CLAMP, WIRE

Note: (Honda Code 2108363).

$7.49

$

Usually ships in 3-6 days

0

5

Honda 31512-ZE2-000

GROMMET, WIRE

Note: (Honda Code 2026557).

$4.49

$

Usually ships in 3-6 days

0

6

Honda 31630-ZE1-003

COIL ASSY., CHARGE
(Superseded to 31630-ZE1-013)

Note: (Honda Code 2026615).

$77.99

$

Usually ships in 3-6 days

0

8

Honda 36101-ZE3-800

WIRE, STOP SWITCH (470MM)

Note: (Honda Code 3755253).

$14.99

$

Usually ships in 3-6 days

0

10

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

11

Honda 90014-ZE6-000

BOLT, FLANGE (6X35)

Note: (Honda Code 1688076).

$2.99

$

In Stock, Qty 6

0

12

Honda 90015-883-000

BOLT, FLANGE (6X28)

Note: (Honda Code 0636852).

$4.49

$

In Stock, only 4 left!

0
