GX340 K1 QA (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) FAN COVER Parts Diagram

Engine, Made in Japan

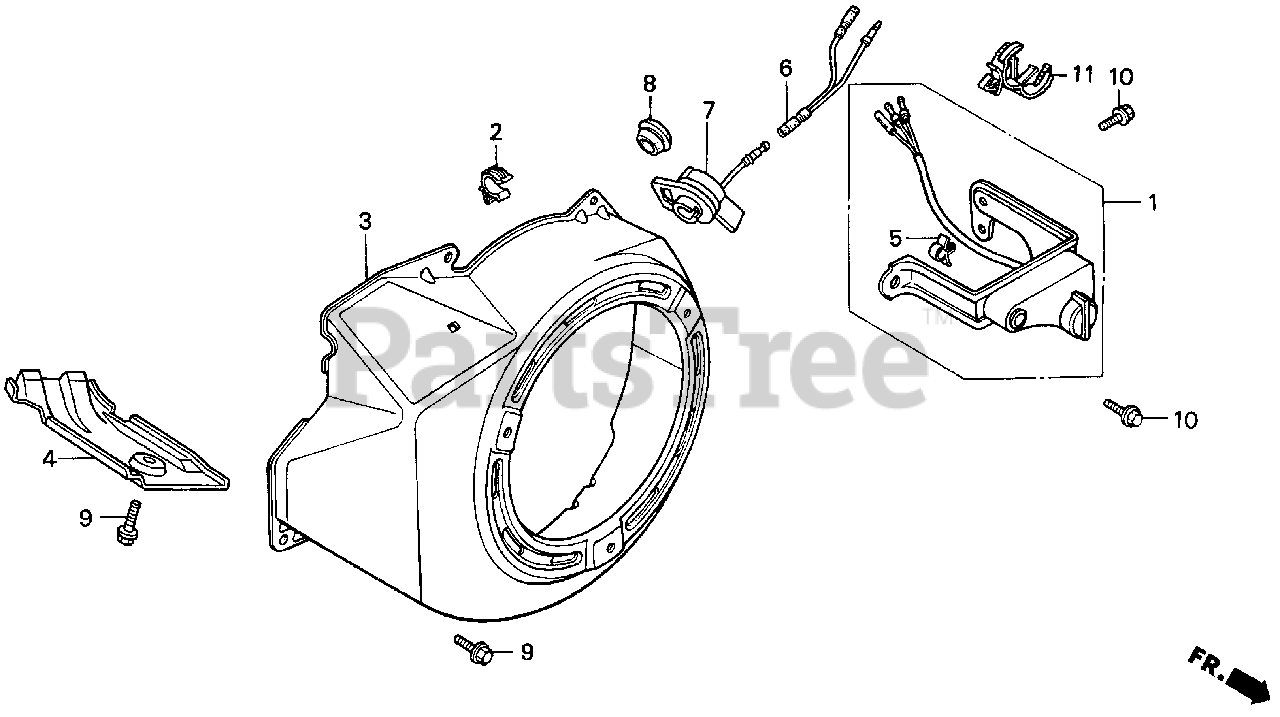

FAN COVER Parts Diagram

  • Title

1

Honda 15520-ZE2-003

ALERT UNIT, OIL

Note: Use up to Engine SN 2143683. (Honda Code 2025690).

$

$

Not available

2

Honda 16731-ZE2-003

CLIP, TUBE

Note: (Honda Code 2026094).

$3.49

$

In Stock, only 1 left!

0

3

Honda 19610-ZE3-010ZA

SEE PART DETAILS - PRI; COVER, FAN *R8* (BRIGHT RED)
(Superseded to 19610-ZE3-010ZL)

Note: (Honda Code 4230637).

$104.99

$

In Stock, only 2 left!

0

4

Honda 19631-ZE3-W00

SHROUD

Note: (Honda Code 3713294).

$15.99

$

Usually ships in 3-6 days

0

5

Honda 30701-883-000

CLIP, IGNITION WIRE (8MM)

Note: Use up to Engine SN 2143683. (Honda Code 0636787).

$4.49

$

In Stock, only 1 left!

0

6

Honda 32197-ZH8-003

SUB-HARNESS

Note: Use from Engine SN 2143684 to 2639737. (Honda Code 4193082).

$13.99

$

In Stock, only 1 left!

0

7

Honda 36100-ZE1-015

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

Note: Use from Engine SN 2143684 to 2639737. (Honda Code 2787869).

$24.99

$

In Stock, Qty 6

0

7

Honda 36100-ZH7-003

SWITCH ASSY., ENGINE STOP
(Superseded to 36100-ZF6-P82)

Note: Use from Engine SN 2639738. (Honda Code 5266184).

$22.99

$

In Stock, Qty 6

0

8

Honda 81329-567-020

SEE PART DETAILS - PRI; GROMMET, DRAIN HOLE

Note: Use up to Engine SN 2143683. (Honda Code 0677773).

$6.49

$

In Stock, only 1 left!

0

9

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

10

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: Use up to Engine SN 2143683. (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

11

Honda 90684-ZA0-601

SEE PART DETAILS - PRI; CLIP, WIRE HARNESS

Note: (Honda Code 2539138).

$5.49

$

In Stock, only 1 left!

0
