GX340 K1 QAE2/A (GC05) - Honda Engine, Made in Japan (SN: GC05-3600001 - GC05-9999999) CONTROL BOX (5) Parts Diagram

Engine, Made in Japan

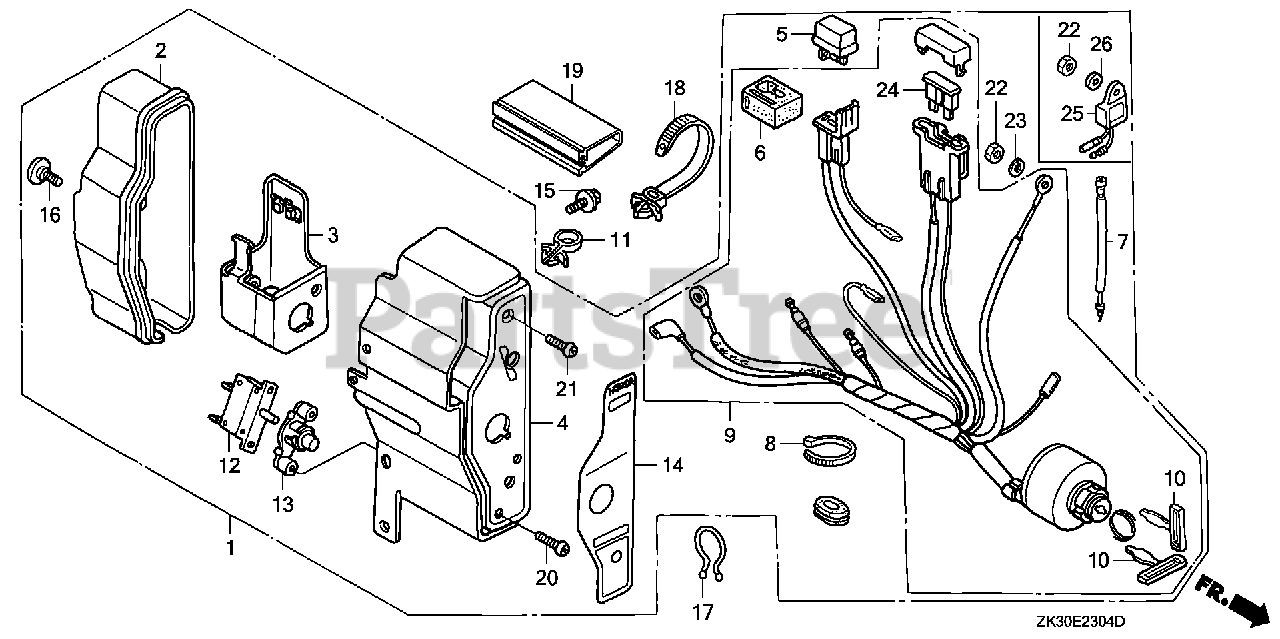

CONTROL BOX (5) Parts Diagram

  • Title

1

Honda 31610-ZE3-W23ZA

BOX ASSY., CONTROL (3A) *NH1* (ALERT) (BLACK)
(Superseded to 31610-Z5S-802ZA)

$295.99

$

Usually ships in 3-6 days

0

1

Honda 31610-Z5S-802ZB

BOX ASSY., CONTROL (3A) *R280* (EXP-ALERT) (POWER RED)

$294.99

$

Usually ships in 3-6 days

0

2

Honda 31612-ZE2-003

CASE, CONTROL

$24.99

$

Usually ships in 3-6 days

0

3

Honda 31614-ZE2-003

BRACKET, CASE MOUNTING

$20.99

$

Usually ships in 3-6 days

0

4

Honda 31615-ZE3-003ZB

SEE PART DETAILS - SUP; PANEL, CONTROL *R8* (BRIGHT RED)
(Superseded to 31615-ZE3-003ZE)

Note: Use up to Engine SN 3662149.

$33.99

$

Usually ships in 3-6 days

0

4

Honda 31615-ZE3-003ZE

SEE PART DETAILS - PRI; PANEL, CONTROL *R280* (POWER RED)

$33.99

$

Usually ships in 3-6 days

0

5

Honda 31700-124-008

RECTIFIER ASSY., SILICON (SHINDENGEN)

$45.99

$

In Stock, only 2 left!

0

6

Honda 32127-738-700

SUSPENSION, CONNECTOR

$5.49

$

Usually ships in 3-6 days

0

7

Honda 32197-ZE1-003

SUB-WIRE HARNESS

$13.99

$

Usually ships in 3-6 days

0

8

Honda 32902-892-003

BAND

$5.49

$

In Stock, Qty 9

0

9

Honda 35100-ZE2-843

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION (3A-CHARGE)

$145.99

$

Usually ships in 3-6 days

0

10

Honda 35111-880-013

KEY (HONDALOCK)

$13.99

$

In Stock, only 2 left!

0

11

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

$2.99

$

In Stock, only 2 left!

0

12

Honda 38240-ZE2-840

PROTECTOR, CIRCUIT (3.5A)

$36.99

$

Usually ships in 3-6 days

0

13

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR

$22.99

$

Usually ships in 3-6 days

0

14

Honda 87529-ZE2-812

MARK, CONTROL BOX (EXP)

$15.99

$

Usually ships in 3-6 days

0

15

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

16

Honda 90380-MA6-010

SCREW, SPECIAL (6X12)

$4.99

$

Usually ships in 3-6 days

0

17

Honda 90630-751-000

CLIP, PURSE LOCK

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90672-SA0-003

STRAP, CABLE (118MM) (BLACK)

$10.99

$

Usually ships in 3-6 days

0

19

Honda 91406-ZE2-003

TUBE, FASTENER (30MM)

$7.99

$

Usually ships in 3-6 days

0

20

Honda 93500-03012-0H

SCREW, PAN (3X12)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 93500-04012-0H

SCREW, PAN (4X12)

$1.49

$

In Stock, Qty 20+

0

22

Honda 94001-04390-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 98200-31500

FUSE, BLADE (15A)

$1.99

$

In Stock, Qty 6

0

25

Honda 34150-ZH7-013

SEE PART DETAILS - SUP; ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

$59.99

$

In Stock, only 4 left!

0

25

Honda 34150-ZH7-023

SEE PART DETAILS - PRI; ALERT UNIT, OIL

$59.99

$

In Stock, only 4 left!

0

26

Honda 94101-04800

WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0
