GX340 K1 QNR2 (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) RECOIL STARTER Parts Diagram

Engine, Made in Japan

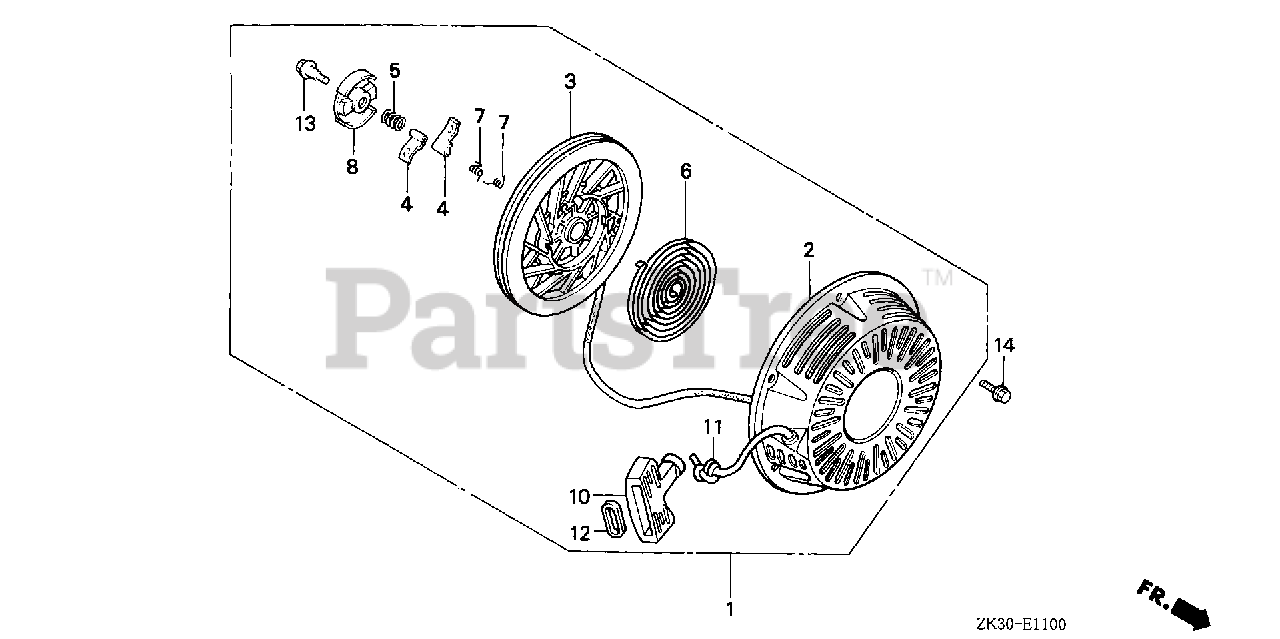

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE3-W01ZP

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R280* (POWER RED)
(Superseded to 28400-ZE3-W02ZP)

$123.99

$

In Stock, only 1 left!

0

1

Honda 28400-ZE3-W02ZB

STARTER ASSY., RECOIL *NH1* (BLACK)

$123.99

$

In Stock, only 2 left!

0

1

Honda 28400-ZE3-W02ZP

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

$123.99

$

In Stock, only 1 left!

0

2

Honda 28410-ZE3-W01ZB

CASE, RECOIL STARTER *NH1* (BLACK)

$129.99

$

In Stock, only 2 left!

0

2

Honda 28410-ZE3-W01ZP

CASE, RECOIL STARTER *R280* (POWER RED)

$150.99

$

In Stock, only 1 left!

0

3

Honda 28421-ZE3-W01

PULLEY, RECOIL STARTER

$51.99

$

In Stock, only 1 left!

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

$8.99

$

In Stock, only 4 left!

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

$6.99

$

In Stock, Qty 11

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

$21.99

$

In Stock, Qty 5

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

$6.49

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

$16.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZE2-W02

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZE2-W03)

$9.49

$

In Stock, Qty 10

0

10

Honda 28461-ZE2-W03

SEE PART DETAILS - PRI; GRIP, STARTER

$9.49

$

In Stock, Qty 10

0

11

Honda 28462-ZE3-W01

ROPE, RECOIL STARTER

$16.99

$

In Stock, Qty 6

0

12

Honda 28469-ZE2-W01

REINFORCEMENT, GRIP

Note: Use up to Engine SN 2935312.

$7.99

$

In Stock, only 2 left!

0

13

Honda 90004-ZE2-W01

SCREW, CENTER

$4.99

$

In Stock, Qty 9

0

14

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0
