GX340 K1 QPE2 (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-9999999) FUEL TANK (1) Parts Diagram

Engine, Made in Japan

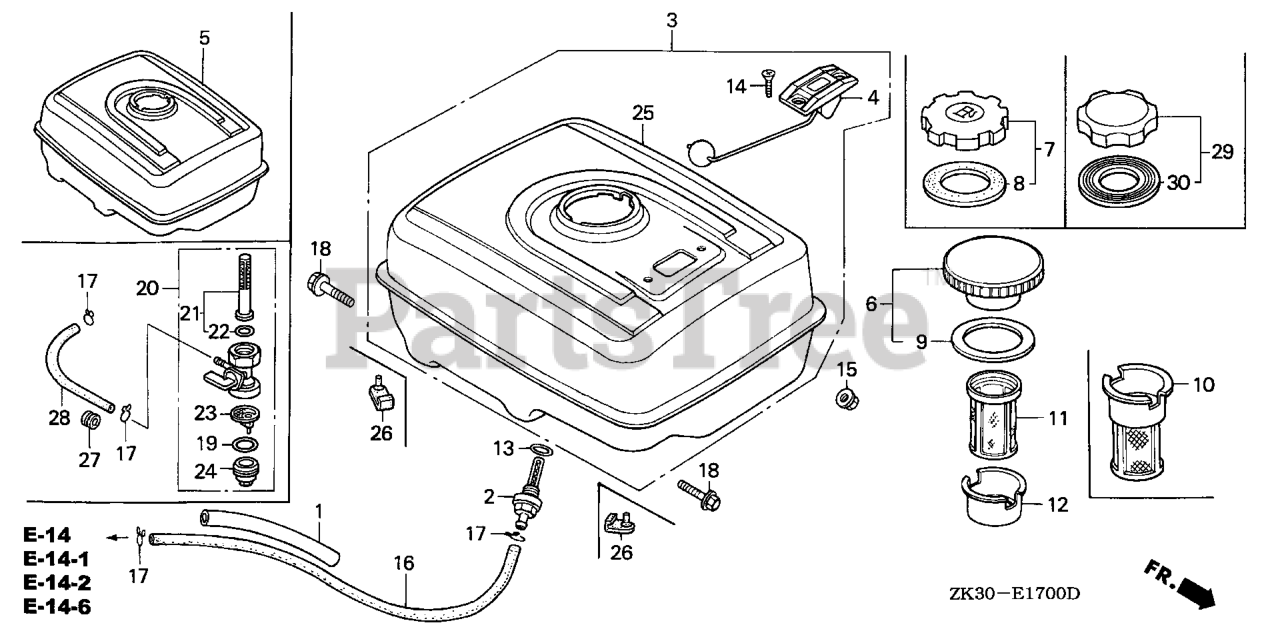

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$5.99

$

In Stock, Qty 11

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$9.99

$

In Stock, Qty 20+

0

5

Honda 17510-ZE3-030ZB

SEE PART DETAILS - PRI; TANK, FUEL *NH1* (BLACK)

$179.99

$

In Stock, only 1 left!

0

7

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (BLACK) Use up to Engine SN 2115700.
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 4122403. Use up to Engine SN 4122402.

$

$

Not available

7

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)
(Superseded to 17620-Z0T-315)

Note: Use from Engine SN 4122403. Use up to Engine SN 4122402.

$22.99

$

In Stock, only 4 left!

0

7

Honda 17620-Z0T-315

CAP COMP

Note: Use from Engine SN 4122403. Use up to Engine SN 4122402.

$22.99

$

In Stock, only 4 left!

0

8

Honda 17631-ZE1-000

GASKET, FUEL FILLER CAP (39X58X3) (NOT AVAILABLE)

$4.49

$

In Stock, only 1 left!

0

8

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP Use from Engine SN 1543258.
(Superseded to 17631-329-013)

$

$

Not available

8

Honda 17631-329-013

GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-ZE1-000)

$4.49

$

In Stock, only 1 left!

0

10

Honda 17672-ZE2-W01

SEE PART DETAILS - PRI; FILTER, FUEL

$6.99

$

In Stock, only 2 left!

0

13

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$4.49

$

In Stock, Qty 20+

0

15

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

16

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

$60.99

$

In Stock, Qty 7

0

17

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.99

$

In Stock, Qty 20+

0

18

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.99

$

In Stock, Qty 8

0
