GX340 K1 VH22 (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) AIR CLEANER (1) Parts Diagram

Engine, Made in Japan

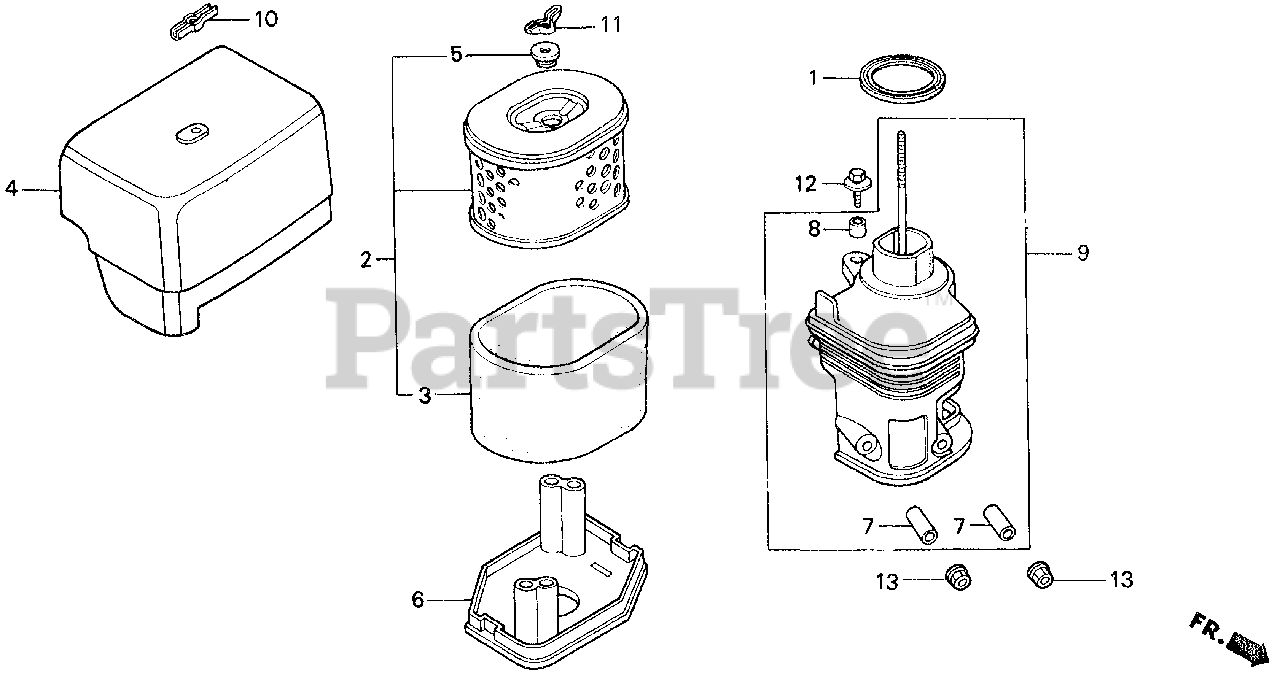

AIR CLEANER (1) Parts Diagram

  • Title

1

Honda 16271-ZE2-000

SEE PART DETAILS - SUP; GASKET, ELBOW

Note: (Honda Code 2025948).

$2.99

$

In Stock, Qty 18

0

2

Honda 17210-ZE3-010

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER
(Superseded to 17210-ZE3-505)

Note: (Honda Code 2893907).

$19.99

$

In Stock, Qty 20+

0

2

Honda 17210-ZE3-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

Note: (Honda Code 5252697).

$19.99

$

In Stock, Qty 20+

0

3

Honda 17218-ZE3-000

SEE PART DETAILS - SUP; FILTER (OUTER)
(Superseded to 17218-ZE3-505)

Note: (Honda Code 2577377).

$

$

Not available

3

Honda 17218-ZE3-505

SEE PART DETAILS - PRI; FILTER (OUTER)
(Superseded to 17218-ZE3-000)

Note: (Honda Code 5281449).

$

$

Not available

4

Honda 17231-ZE3-W00

SEE PART DETAILS - SUP; COVER, AIR CLEANER
(Superseded to 17231-ZE3-W01)

Note: Use up to Engine SN 3394504. (Honda Code 3713245).

$53.99

$

In Stock, only 1 left!

0

4

Honda 17231-ZE3-W01

SEE PART DETAILS - PRI; COVER, AIR CLEANER

Note: (Honda Code 6722623).

$53.99

$

In Stock, only 1 left!

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER

Note: (Honda Code 0999763).

$5.49

$

In Stock, Qty 15

0

6

Honda 17235-ZH9-N00

NOSE, MUFFLER

Note: (Honda Code 3713252).

$

$

Not available

7

Honda 17238-ZE2-310

SEE PART DETAILS - PRI; COLLAR, AIR CLEANER

Note: (Honda Code 2384105).

$4.49

$

In Stock, Qty 12

0

8

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER

Note: (Honda Code 1427533).

$4.49

$

In Stock, Qty 9

0

9

Honda 17410-ZH9-N00

ELBOW, AIR CLEANER
(Superseded to 17410-ZH9-N01)

Note: (Honda Code 3713260).

$14.99

$

In Stock, only 1 left!

0

10

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING

Note: (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

11

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING

Note: (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

12

Honda 90009-ZE2-003

BOLT-WASHER (6X22)

Note: (Honda Code 6437297).

$2.49

$

In Stock, only 4 left!

0

12

Honda 93404-06020-08

BOLT-WASHER (6X20)

Note: (Honda Code 2410694).

$1.99

$

In Stock, only 3 left!

0

13

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
