GX340 LX (GC05) - Honda Engine, Made in Japan (SN: GC05-1000001 - GC05-1469766) GEAR CASE Parts Diagram

Engine, Made in Japan

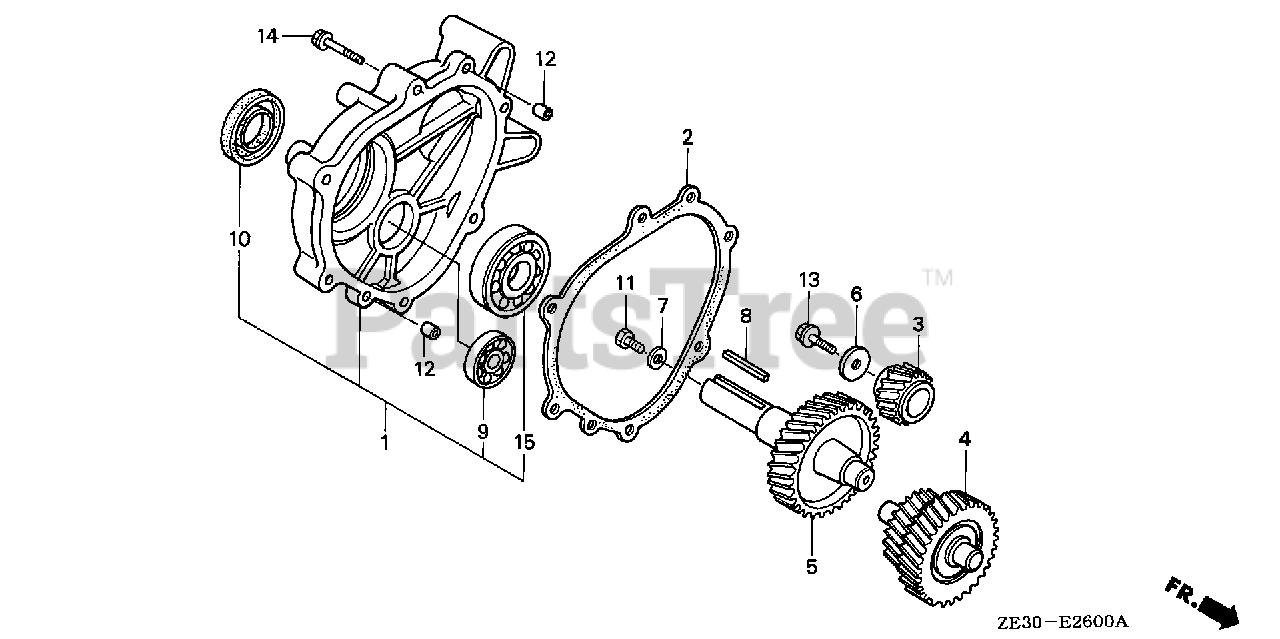

GEAR CASE Parts Diagram

  • Title

1

Honda 11500-ZE3-613

COVER ASSY., GEAR CASE

$190.99

$

Usually ships in 3-6 days

0

2

Honda 11521-ZE2-800

GASKET, CHAIN CASE COVER

$13.99

$

In Stock, only 2 left!

0

3

Honda 22103-ZE3-610

GEAR, PRIMARY DRIVE (22T)
(Superseded to 23411-Z1C-000)

$84.99

$

Usually ships in 3-6 days

0

4

Honda 23220-ZE3-610

COUNTERSHAFT (21T/27T)

$245.99

$

Usually ships in 3-6 days

0

5

Honda 23710-ZE3-610

SHAFT, P.T.O. (33T)

$319.99

$

Usually ships in 3-6 days

0

6

Honda 90473-ZE3-000

WASHER (8MM)
(Superseded to 90473-ZE3-010)

Note: Use up to Engine SN 1212995.

$8.49

$

Usually ships in 3-6 days

0

6

Honda 90473-ZE3-010

WASHER (8.5X42X4.5)

Note: Use from Engine SN 1212996.

$8.49

$

Usually ships in 3-6 days

0

8

Honda 90741-889-810

KEY (7X7X33) (OVER SIZE) (YELLOW)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

9

Honda 91009-KJ1-003

BEARING, RADIAL BALL (6202) (NTN)

$23.99

$

Usually ships in 3-6 days

0

10

Honda 91201-890-003

OIL SEAL (30X46X8)

$13.99

$

In Stock, only 1 left!

0

12

Honda 94301-08140

PIN, DOWEL (8X14)

$3.49

$

In Stock, Qty 7

0

13

Honda 90107-959-003

BOLT, FLANGE (8X25)

Note: Use from Engine SN 1212996.

$4.99

$

Usually ships in 3-6 days

0

13

Honda 95701-08025-00

BOLT, FLANGE (8X25)

Note: Use up to Engine SN 1212995.

$2.99

$

In Stock, Qty 8

0

14

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 11

0

15

Honda 96100-62060-00

BEARING, RADIAL BALL (6206)

$22.99

$

In Stock, only 2 left!

0
