GX340 LX (GC05) - Honda Engine, Made in Japan (SN: GC05-1000001 - GC05-1469766) PISTON Parts Diagram

Engine, Made in Japan

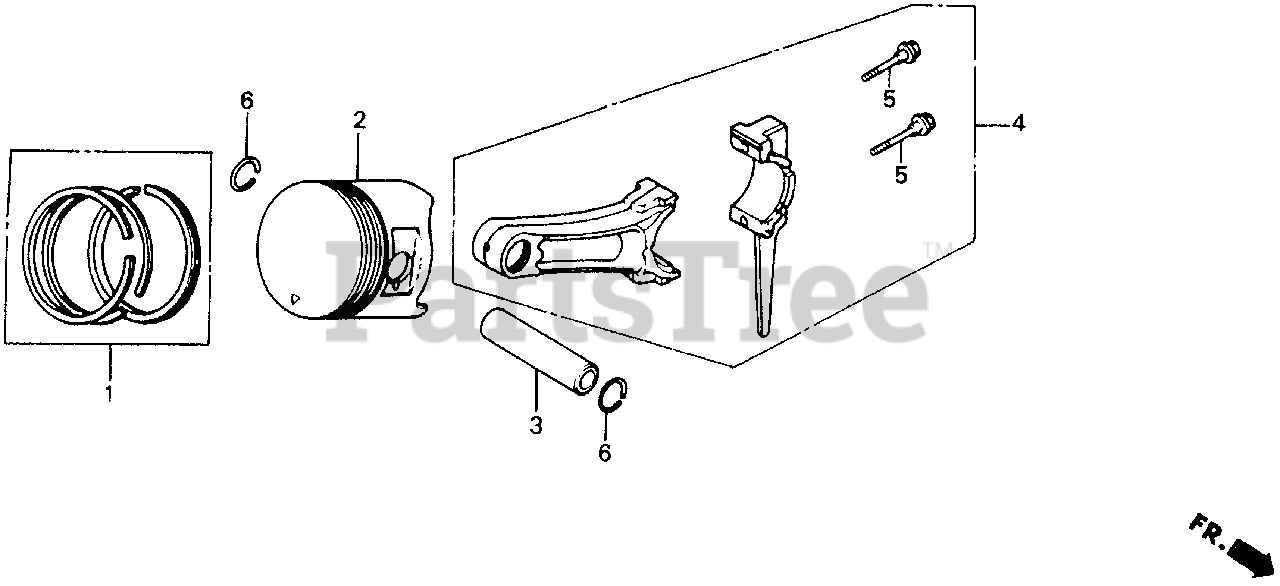

PISTON Parts Diagram

  • Title

1

Honda 13010-ZE3-003

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (Honda Code 2278182).

$54.99

$

In Stock, only 2 left!

0

1

Honda 13011-ZE3-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) (Honda Code 2278208).

Note: (Optional).

$86.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZE3-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) (Honda Code 2278224).

Note: (Optional).

$77.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZE3-003

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (Honda Code 2278240).

Note: (Optional).

$

$

Not available

2

Honda 13101-ZE3-000

PISTON (STD) (Honda Code 2107688).

$

$

Not available

2

Honda 13102-ZE3-000

PISTON (OS 0.25) (Honda Code 2278265).

Note: (Optional).

$132.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZE3-000

PISTON (OS 0.50) (Honda Code 2278273).

Note: (Optional).

$

$

Not available

2

Honda 13104-ZE3-000

PISTON (0.75) (Honda Code 2278281).

Note: (Optional).

$89.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZF6-000

SEE PART DETAILS - PRI; PIN, PISTON (Honda Code 3134434).

$17.99

$

In Stock, only 2 left!

0

4

Honda 13200-ZE3-010

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (STD) (Honda Code 2871200).
(Superseded to 13200-Z1C-900)

$34.99

$

In Stock, only 2 left!

0

4

Honda 13200-ZE3-020

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD) (Honda Code 6858294).
(Superseded to 13200-Z1C-900)

$34.99

$

In Stock, only 2 left!

0

4

Honda 13200-ZE3-315

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (US 0.25) (Honda Code 2871218).

Note: (Optional).

$160.99

$

Usually ships in 3-6 days

0

5

Honda 90001-ZE8-000

BOLT, CONNECTING ROD (Honda Code 2160489).

$5.49

$

In Stock, only 3 left!

0

6

Honda 90601-ZE3-000

CLIP, PISTON PIN (20MM) (Honda Code 2108579).

$2.99

$

In Stock, Qty 12

0
