GX340 QA (GC05) - Honda Engine, Made in Japan (SN: GC05-1000001 - GC05-1469766) RECOIL STARTER Parts Diagram

Engine, Made in Japan

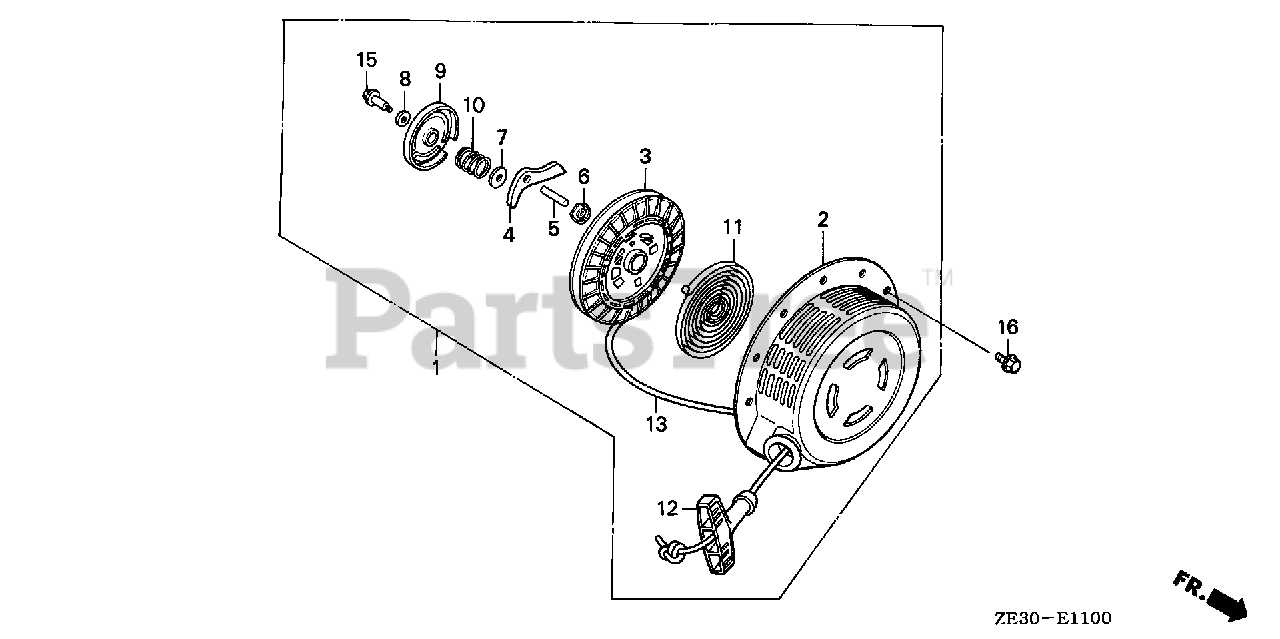

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE8-509

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 28400-ZE8-305)

$105.99

$

In Stock, only 2 left!

0

1

Honda 28400-ZE8-811ZG

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 28400-ZE8-305)

$105.99

$

In Stock, only 2 left!

0

2

Honda 28410-ZE8-811ZA

CASE, RECOIL STARTER *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Not available

3

Honda 28420-ZE8-811

REEL, STARTER
(Superseded to 28420-ZE8-812)

$67.99

$

Usually ships in 3-6 days

0

3

Honda 28420-ZE8-812

REEL, STARTER

$67.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE8-811

RATCHET, STARTER

$7.99

$

Usually ships in 3-6 days

0

5

Honda 28423-ZE1-711

SHAFT, RATCHET (NOT AVAILABLE)

$10.99

$

Usually ships in 3-6 days

0

6

Honda 28424-ZE1-712

SEE PART DETAILS - PRI; PLATE, GUIDE

$5.99

$

Usually ships in 3-6 days

0

7

Honda 28431-ZE1-711

PLATE A, FRICTION

$3.99

$

Usually ships in 3-6 days

0

8

Honda 28432-ZE8-811

PLATE B, FRICTION

Note: Use up to Engine SN 1000745.

$

$

Not available

8

Honda 28432-ZG0-003

SEE PART DETAILS - SUP; PLATE B, FRICTION
(Superseded to 28432-883-T20)

Note: Use from Engine SN 1000746.

$3.49

$

In Stock, only 2 left!

0

9

Honda 28434-ZE1-711

COVER, STARTER REEL (NOT AVAILABLE)

Note: Use up to Engine SN 1000745.

$9.49

$

Usually ships in 3-6 days

0

9

Honda 28434-ZE8-811

COVER, STARTER REEL
(Superseded to 28434-ZE8-812)

Note: Use from Engine SN 1000746.

$12.99

$

Usually ships in 3-6 days

0

9

Honda 28434-ZE8-812

COVER, STARTER REEL

Note: Use from Engine SN 1000746.

$12.99

$

Usually ships in 3-6 days

0

10

Honda 28441-ZE1-711

SPRING, FRICTION (D=18.5MM / L=20.5MM)
(Superseded to 28441-883-T20)

$3.99

$

Usually ships in 3-6 days

0

10

Honda 28441-ZG3-004

SPRING, FRICTION (D=13.0MM / L=16.3MM)

$4.99

$

Usually ships in 3-6 days

0

11

Honda 28442-ZE1-713

SEE PART DETAILS - PRI; SPRING, RETURN

$25.99

$

Usually ships in 3-6 days

0

12

Honda 28461-889-631

GRIP, STARTER

$12.99

$

In Stock, Qty 13

0

13

Honda 28462-ZE8-811

ROPE, STARTER (N/A: USE ALT P/N 08560-ZG921-11)

$

$

Currently unavailable

15

Honda 90003-ZG0-003

BOLT, REEL COVER

$3.49

$

Usually ships in 3-6 days

0

16

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$4.99

$

In Stock, Qty 20+

0
