GX360 K1 DD/A (GA01) - Honda Engine, Made in Japan (SN: GA01-1400001 - GA01-9999999) FLYWHEEL@IGNITION COIL Parts Diagram

Engine, Made in Japan

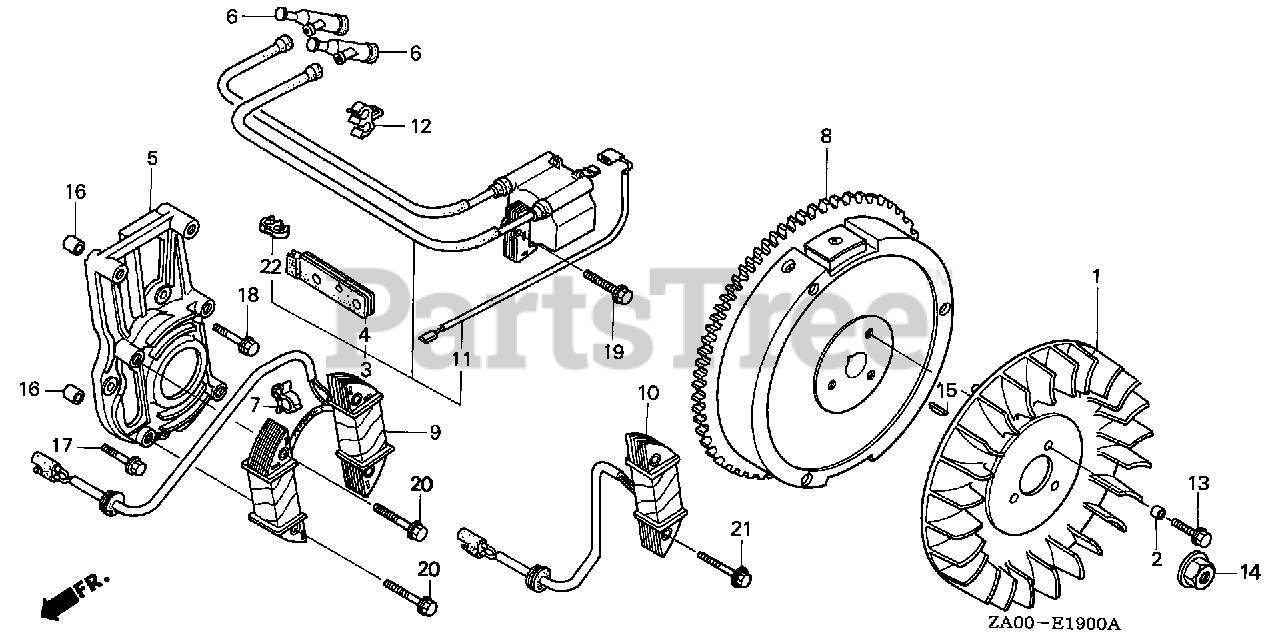

FLYWHEEL@IGNITION COIL Parts Diagram

  • Title

1

Honda 19511-ZA0-930

FAN, COOLING (Honda Code 1972272).

$48.99

$

Usually ships in 3-6 days

0

2

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, only 3 left!

0

3

Honda 30500-ZA0-701

COIL ASSY., IGNITION (Honda Code 2059582).

$158.99

$

Usually ships in 3-6 days

0

4

Honda 30505-ZA0-700

GROMMET, IGNITION WIRE (Honda Code 1972298).

$13.99

$

Usually ships in 3-6 days

0

5

Honda 30525-ZA0-700

STAY, IGNITION SYSTEM (Honda Code 1978642).

$227.99

$

Usually ships in 3-6 days

0

6

Honda 30700-ZE1-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (Honda Code 3526837). (NICHIWA Y-EZ RTFM256)

$26.99

$

In Stock, only 2 left!

0

7

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$4.49

$

In Stock, only 1 left!

0

8

Honda 31100-ZA0-923

FLYWHEEL (Honda Code 5377585).

$254.99

$

Usually ships in 3-6 days

0

9

Honda 31630-ZA0-701

SEE PART DETAILS - PRI; COIL ASSY., CHARGE (10A) (Honda Code 2052199).

$255.99

$

Usually ships in 3-6 days

0

11

Honda 36101-ZA0-700

SEE PART DETAILS - PRI; WIRE, ENGINE STOP

$10.99

$

Usually ships in 3-6 days

0

12

Honda 38685-SA5-673

CLIP, RECEIVER PIPE (Honda Code 1569342).

Note: Use up to Engine SN 1403480.

$

$

Not available

12

Honda 38685-ZA0-003

CLIP, IGNITION WIRE

Note: Use from Engine SN 1403481.

$5.49

$

Usually ships in 3-6 days

0

13

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

$2.49

$

In Stock, only 4 left!

0

14

Honda 90201-ZE3-V00

NUT, SPECIAL (16MM) (1) (Honda Code 5032727).

Note: Use up to Engine SN 1407868.

$11.99

$

Usually ships in 3-6 days

0

14

Honda 90201-ZE3-790

SEE PART DETAILS - PRI; NUT, SPECIAL (16MM)

Note: Use from Engine SN 1407869.

$12.99

$

In Stock, only 2 left!

0

15

Honda 90741-ZE2-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 2027159).

$4.49

$

In Stock, Qty 11

0

16

Honda 94301-08100

SEE PART DETAILS - PRI; PIN A, DOWEL (8X10)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 95701-06022-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22) (Honda Code 2129682).

$2.99

$

Usually ships in 3-6 days

0

18

Honda 95701-06028-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X28) (Honda Code 2488500).

$3.49

$

Usually ships in 3-6 days

0

19

Honda 95701-06028-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X28) (Honda Code 2488500).

$3.49

$

Usually ships in 3-6 days

0

20

Honda 95701-06032-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 2581361).

$2.99

$

In Stock, only 1 left!

0
