GX360 K1 DD/A (GA01) - Honda Engine, Made in Japan (SN: GA01-1400001 - GA01-9999999) WIRE HARNESS Parts Diagram

Engine, Made in Japan

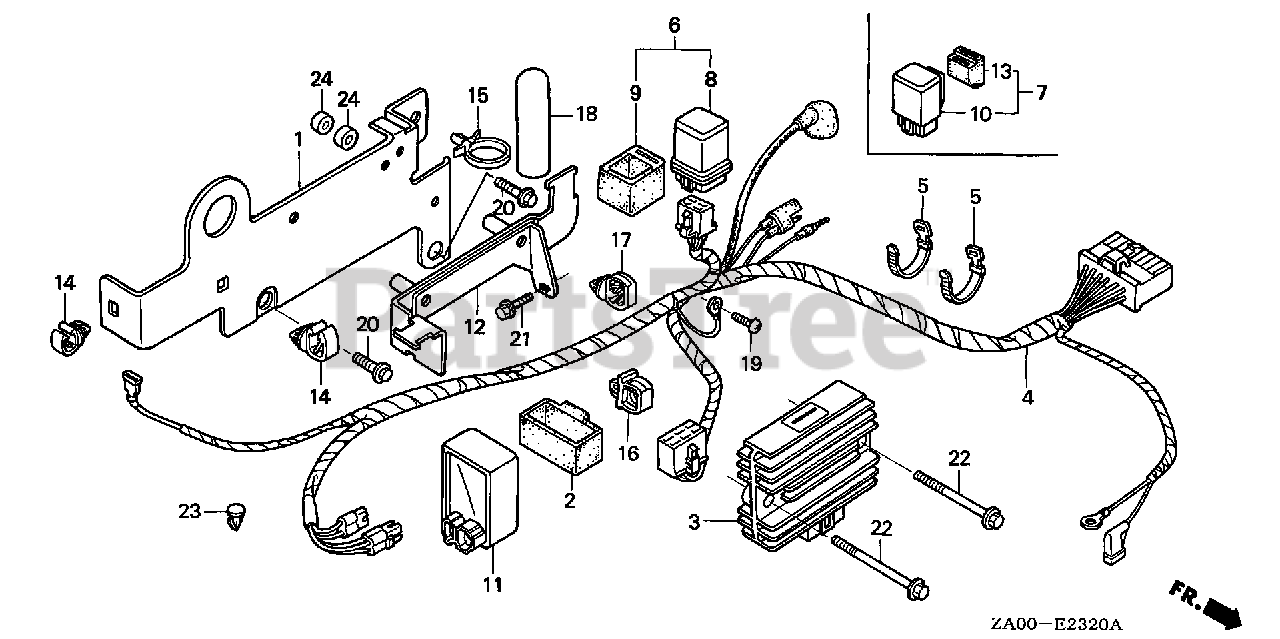

WIRE HARNESS Parts Diagram

  • Title

1

Honda 11803-ZA0-920

HOOK, ENGINE (Honda Code 2579878).

$34.99

$

Usually ships in 3-6 days

0

2

Honda 30401-VM0-000

RUBBER, IGNITION CONTROL (Honda Code 1772458). MODULE

$5.49

$

Usually ships in 3-6 days

0

3

Honda 31600-ZA0-921

RECTIFIER ASSY., REGULATOR (Honda Code 2580520).

$213.99

$

Usually ships in 3-6 days

0

4

Honda 32120-ZA0-920

WIRE HARNESS ASSY. (10A) (Honda Code 2580595).

$133.99

$

Usually ships in 3-6 days

0

5

Honda 32161-367-690

BAND, WIRE Use up to Frame SN 1001879.

$3.99

$

Usually ships in 3-6 days

0

7

Honda 38350-762-003

SEE PART DETAILS - PRI; RELAY ASSY., CONTROL (10A) (Honda Code 4489068).

Note: (Optional).

$48.99

$

Usually ships in 3-6 days

0

10

Honda 38365-MN5-811

RELAY (10A) (Honda Code 2820835).

Note: (Optional).

$39.99

$

Usually ships in 3-6 days

0

11

Honda 38470-ZA0-921

ALERT UNIT (Honda Code 2580652).

$177.99

$

Usually ships in 3-6 days

0

12

Honda 38476-ZA0-920

BRACKET, ALERT UNIT (Honda Code 2580660).

$8.49

$

Usually ships in 3-6 days

0

13

Honda 38506-751-701

SUSPENSION, STARTER RELAY (Honda Code 2486298). (TATEISHI)

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0

14

Honda 90602-PA6-661

CLIP, WIRE HARNESS (Honda Code 1351972).

$10.99

$

Usually ships in 3-6 days

0

15

Honda 90617-750-003

CLIP, WIRE HARNESS (Honda Code 1835933).

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90651-750-801

CLIP, HARNESS (10MM) (Honda Code 2534535).

$3.99

$

In Stock, only 4 left!

0

18

Honda 91408-890-000

TUBE, CORD (22MM) (Honda Code 0756510).

$6.49

$

Usually ships in 3-6 days

0

19

Honda 93500-05012-0H

SEE PART DETAILS - PRI; SCREW, PAN (5X12) (Honda Code 0561795).

$1.49

$

Usually ships in 3-6 days

0

20

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, Qty 6

0

21

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$1.99

$

In Stock, Qty 20+

0

22

Honda 95701-06045-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X45) (Honda Code 2410967).

$2.99

$

Usually ships in 3-6 days

0
