GX360 K1 DD2 (GA01) - Honda Engine, Made in Japan (SN: GA01-1100001 - GA01-1399999) STARTER MOTOR Parts Diagram

Engine, Made in Japan

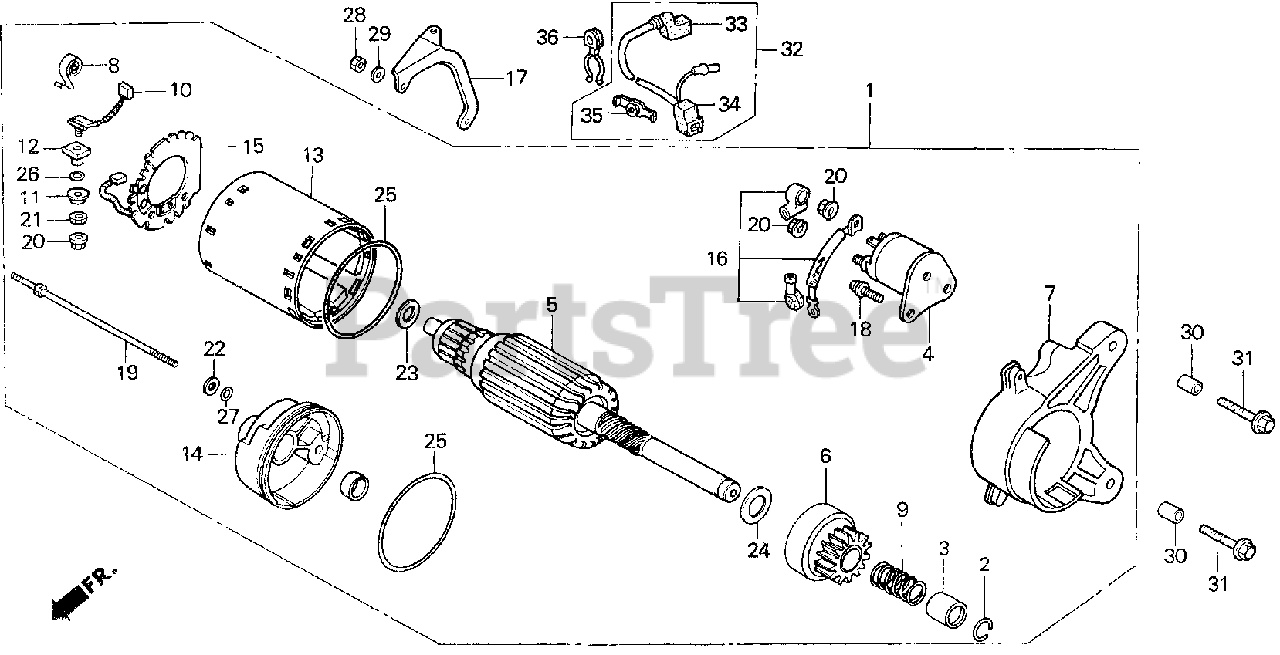

STARTER MOTOR Parts Diagram

  • Title

1

Honda 31200-ZA0-921

MOTOR ASSY., STARTER (Honda Code 2580488).

$760.99

$

Usually ships in 3-6 days

0

2

Honda 31201-ZA1-003

RING, SNAP (Honda Code 1238195).

$2.99

$

Usually ships in 3-6 days

0

3

Honda 31202-ZA1-003

COLLAR, CLUTCH (Honda Code 1238203).

$22.99

$

Usually ships in 3-6 days

0

4

Honda 31204-ZA0-003

SEE PART DETAILS - PRI; CONTACTOR ASSY. (Honda Code 2108298).

$165.99

$

In Stock, only 1 left!

0

5

Honda 31206-ZA1-003

ARMATURE (Honda Code 1238211).

$244.99

$

Usually ships in 3-6 days

0

6

Honda 31207-ZA1-003

CLUTCH, OVERRUNNING (Honda Code 1238229).

$205.99

$

Usually ships in 3-6 days

0

7

Honda 31208-ZA1-013

HOUSING, DRIVE SIDE (Honda Code 2059590).

$144.99

$

Usually ships in 3-6 days

0

8

Honda 31212-ZA0-700

SPRING, BRUSH (Honda Code 2110260).

$11.99

$

Usually ships in 3-6 days

0

9

Honda 31212-ZA1-003

SPRING (Honda Code 1412378).

$6.99

$

Usually ships in 3-6 days

0

10

Honda 31215-ZA1-013

BRUSH (Honda Code 2059608).

$15.99

$

In Stock, only 2 left!

0

11

Honda 31216-ZA1-013

BUSHING, INSULATION (Honda Code 2059616).

$9.49

$

Usually ships in 3-6 days

0

12

Honda 31217-ZA1-013

BUSHING, INSULATION (Honda Code 2059624).

$15.99

$

Usually ships in 3-6 days

0

13

Honda 31218-ZA1-013

YOKE (Honda Code 2059632).

$173.99

$

Usually ships in 3-6 days

0

14

Honda 31219-ZA1-013

FRAME, STARTER END (Honda Code 2059640).

$74.99

$

Usually ships in 3-6 days

0

15

Honda 31206-HA0-004

SEE PART DETAILS - PRI; PLATE, BRUSH HOLDER (Honda Code 2379436).
(Superseded to 31231-ZA1-003)

$37.99

$

In Stock, only 1 left!

0

16

Honda 31232-ZA0-003

WIRE, WATER COVER (Honda Code 2580496).

$83.99

$

Usually ships in 3-6 days

0

17

Honda 31255-ZA0-920

STAY, STARTER MOTOR (Honda Code 2580504).

$12.99

$

Usually ships in 3-6 days

0

18

Honda 90101-ZA1-003

BOLT (Honda Code 1412410).

$

$

Not available

19

Honda 90102-ZA0-013

BOLT, THROUGH (Honda Code 4544037).

$4.99

$

Usually ships in 3-6 days

0

20

Honda 90201-ZA1-003

NUT (Honda Code 1412436).

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90202-ZA1-003

NUT (Honda Code 1412444).

$3.99

$

Usually ships in 3-6 days

0

23

Honda 31214-HA0-682

SEE PART DETAILS - PRI; WASHER (Honda Code 2379477).

$

$

Not available

24

Honda 90403-ZA1-003

WASHER (Honda Code 1412477).

$3.99

$

Usually ships in 3-6 days

0

25

Honda 31212-HA0-682

SEE PART DETAILS - PRI; O-RING (Honda Code 2379469).

$

$

Not available

26

Honda 91302-ZA1-013

O-RING (Honda Code 2060382).

$2.99

$

Usually ships in 3-6 days

0

27

Honda 91303-ZA1-003

O-RING (Honda Code 1412501).

$3.99

$

Usually ships in 3-6 days

0

28

Honda 94050-05000

NUT, FLANGE (5MM) (Honda Code 0636951).

$1.99

$

In Stock, Qty 20+

0

29

Honda 94103-05000

WASHER, PLAIN (5MM) (Honda Code 1555630).

$0.99

$

In Stock, only 2 left!

0

30

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.99

$

In Stock, only 1 left!

0

31

Honda 95701-08040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2374775).

$3.49

$

In Stock, only 2 left!

0
