GX360 K1 ES23 (GA01) - Honda Engine, Made in Japan (SN: GA01-1100001 - GA01-1399999) FRONT HOUSING + DUCT COVER Parts Diagram
Engine, Made in Japan

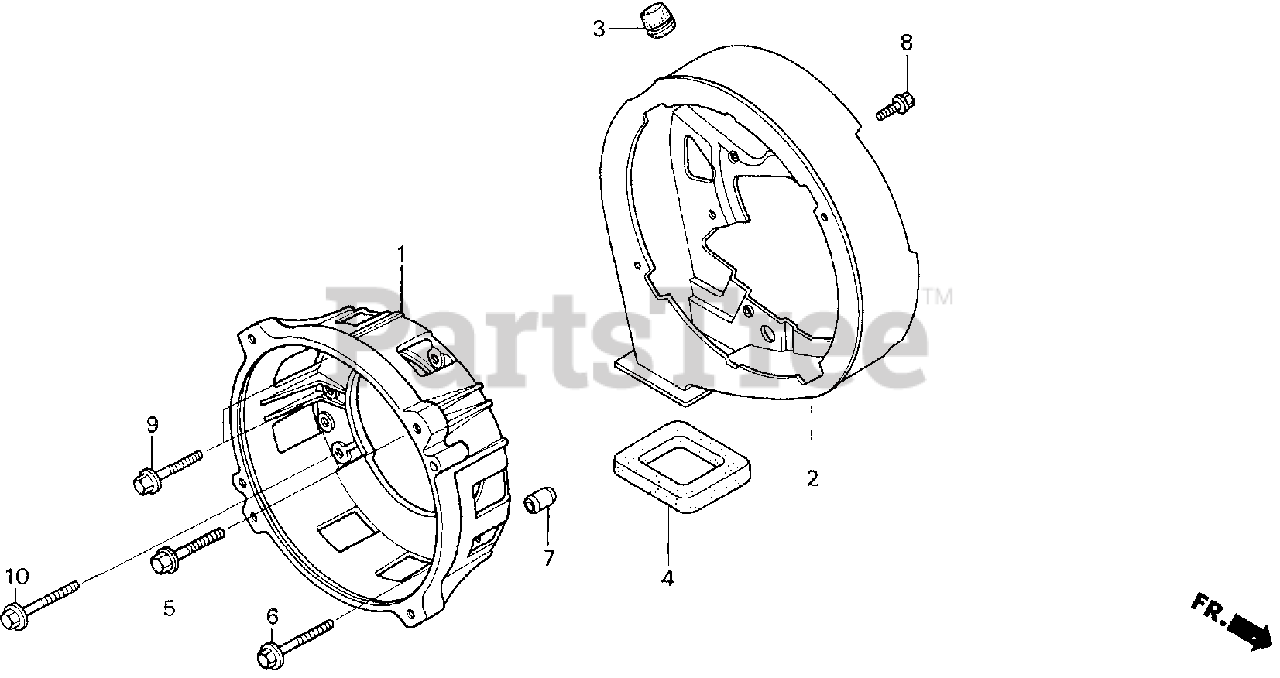

FRONT HOUSING + DUCT COVER Parts Diagram
Honda 31109-ZA0-950
HOUSING, FR. (Honda Code 1972306).
$281.99
$
Usually ships in 3-6 days
Honda 31315-ZA0-930
COVER, DUCT (Honda Code 1972322).
$151.99
$
Usually ships in 3-6 days
Honda 31316-ZA0-000
GROMMET, DUCT COVER (Honda Code 1313162).
$6.49
$
Usually ships in 3-6 days
Honda 90020-ZA0-930
BOLT, FLANGE (8X32) (Honda Code 2311355).
$3.99
$
Usually ships in 3-6 days
Honda 90021-ZA0-930
BOLT, FLANGE (8X40) (Honda Code 2311363).
$3.99
$
Usually ships in 3-6 days
Honda 94301-10140
SEE PART DETAILS - PRI; PIN A, DOWEL (10X14) (Honda Code 0069336).
$3.49
$
Usually ships in 3-6 days
Honda 95701-06012-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2105799).
$2.49
$
In Stock, Qty 20+
Honda 95701-08032-00
SEE PART DETAILS - PRI; BOLT, FLANGE (8X32) (Honda Code 2751725).
$1.99
$
In Stock, Qty 6
Honda 95701-08040-00
SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2298404).
$1.99
$
In Stock, Qty 7
