GX390 K1 LX2 (GCAA) - Honda Engine, Made in Japan (SN: GCAA-2000001 - GCAA-3399999) CRANKCASE COVER (2) Parts Diagram

Engine, Made in Japan

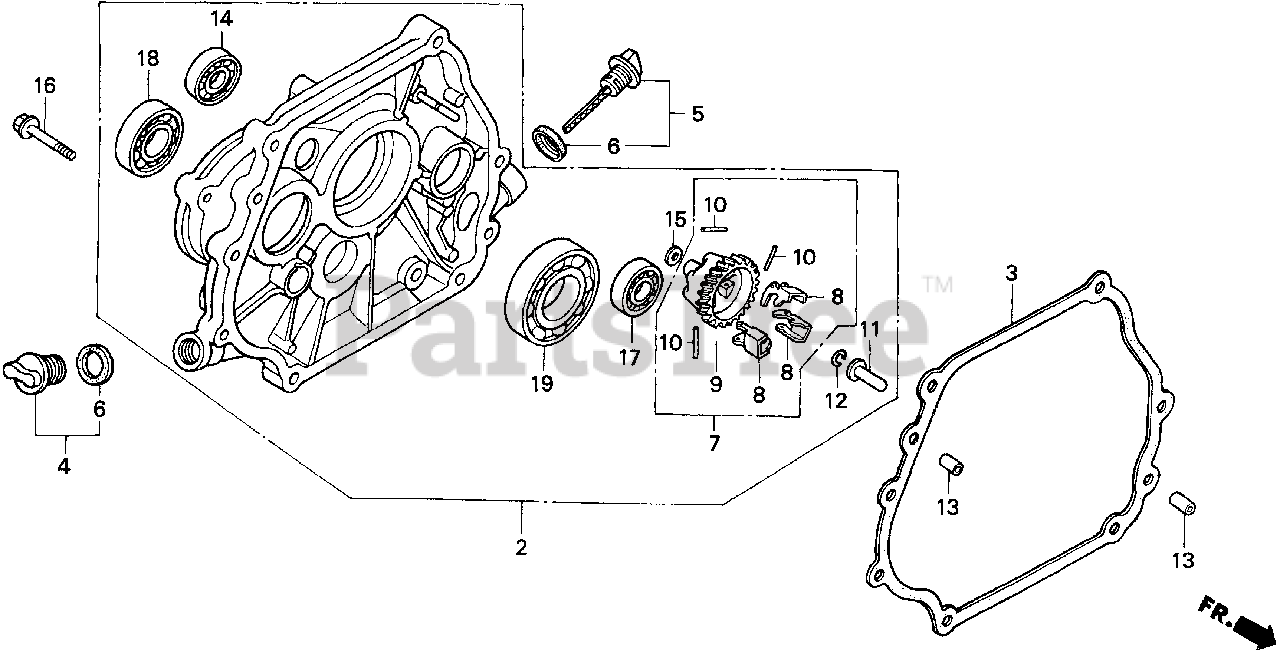

CRANKCASE COVER (2) Parts Diagram

  • Title

2

Honda 11300-ZE3-612

COVER ASSY., CRANKCASE (L-TYPE)
(Superseded to 11300-ZE3-615)

Note: (Honda Code 3735354).

$206.99

$

Usually ships in 3-6 days

0

3

Honda 11381-ZE3-800

SEE PART DETAILS - SUP; GASKET, CASE COVER
(Superseded to 11381-ZE3-801)

Note: (Honda Code 3712965).

$15.99

$

In Stock, Qty 5

0

4

Honda 15600-ZG4-003

CAP ASSY., OIL FILLER

Note: (Honda Code 4497921).

$7.99

$

In Stock, only 2 left!

0

5

Honda 15600-735-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER

Note: (Honda Code 4523106).

$10.99

$

In Stock, Qty 9

0

6

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

Note: (Honda Code 4497947).

$3.99

$

In Stock, Qty 20+

0

7

Honda 16510-ZE3-000

GOVERNOR ASSY.

Note: (Honda Code 3713187).

$36.99

$

In Stock, only 2 left!

0

8

Honda 16511-ZE8-000

WEIGHT, GOVERNOR

Note: (Honda Code 2090090).

$8.99

$

Usually ships in 3-6 days

0

9

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT

Note: (Honda Code 3713195).

$21.99

$

Usually ships in 3-6 days

0

10

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

Note: (Honda Code 2025971).

$2.99

$

Usually ships in 3-6 days

0

11

Honda 16531-ZE2-000

SEE PART DETAILS - SUP; SLIDER, GOVERNOR
(Superseded to 16531-Z0A-000)

Note: (Honda Code 2025989).

$4.49

$

In Stock, only 2 left!

0

12

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

Note: (Honda Code 2456697).

$1.99

$

In Stock, Qty 20+

0

13

Honda 90701-HC4-000

PIN, DOWEL (8X12)

Note: (Honda Code 2978443).

$4.49

$

In Stock, Qty 12

0

14

Honda 91009-KJ1-003

BEARING, RADIAL BALL (6202)

Note: (Honda Code 3078011).

$23.99

$

Usually ships in 3-6 days

0

15

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

Note: (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

16

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

Note: (Honda Code 2298404).

$1.99

$

In Stock, Qty 11

0

17

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

Note: (Honda Code 0708941).

$13.99

$

In Stock, only 2 left!

0

18

Honda 96100-62040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)

Note: (Honda Code 0674390).

$18.99

$

In Stock, only 2 left!

0

19

Honda 96100-62070-00

BEARING, RADIAL BALL (6207)

Note: (Honda Code 0997320).

$62.99

$

In Stock, only 3 left!

0
