GX390 K1 QA (GCAA) - Honda Engine, Made in Japan (SN: GCAA-2000001 - GCAA-3399999) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

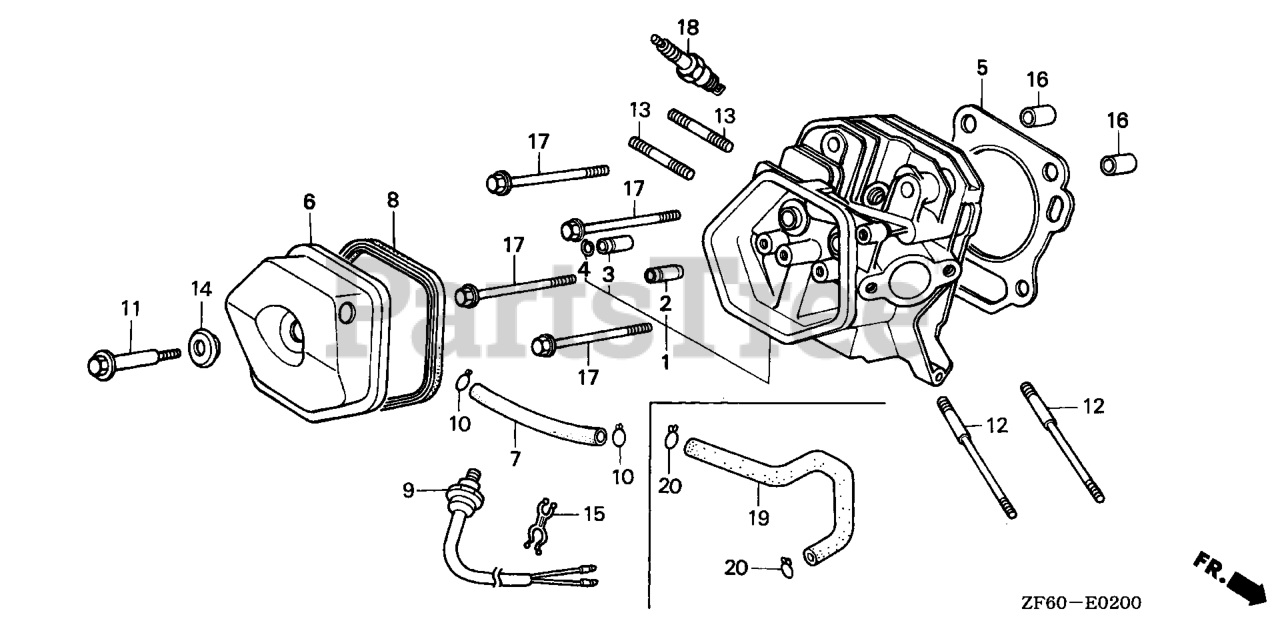

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZF6-W01

SEE PART DETAILS - PRI; CYLINDER HEAD
(Superseded to 12200-ZF6-406)

$405.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-315

SEE PART DETAILS - SUP; GUIDE, VALVE (OVER SIZE)
(Superseded to 12204-ZE2-306)

Note: (Optional) Use up to Engine SN 2037229.

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE (Honda Code 2089597).

$2.99

$

In Stock, only 2 left!

0

5

Honda 12251-ZF6-W00

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD Use up to Engine SN 2949254.
(Superseded to 12251-ZF6-W01)

$23.99

$

In Stock, only 2 left!

0

5

Honda 12251-ZF6-W01

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$23.99

$

In Stock, only 2 left!

0

6

Honda 12310-ZE2-010

SEE PART DETAILS - SUP; COVER, HEAD

Note: Use up to Engine SN 2057295.

$

$

Currently unavailable

6

Honda 12310-ZE2-020

COVER, HEAD

Note: Use from Engine SN 2057296.

$71.99

$

In Stock, only 2 left!

0

7

Honda 95005-11001-30M

BULK HOSE, VACUUM (11X1000) (Honda Code 4537312). (11X105)

$42.99

$

In Stock, only 1 left!

0

8

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD COVER (Honda Code 4300893).

$8.49

$

In Stock, Qty 20+

0

11

Honda 90014-ZE2-000

BOLT, HEAD COVER (Honda Code 2027035).

$7.99

$

In Stock, only 2 left!

0

12

Honda 90042-ZE8-000

BOLT, STUD (8X131.5) (Honda Code 2106656).

$10.99

$

In Stock, Qty 12

0

13

Honda 90047-ZE2-000

SEE PART DETAILS - SUP; BOLT, STUD (Honda Code 2027050).

$4.99

$

In Stock, only 3 left!

0

14

Honda 90441-ZE2-010

SEE PART DETAILS - PRI; WASHER, HEAD COVER (Honda Code 2293918).

$7.49

$

In Stock, Qty 20+

0

16

Honda 94301-12200

SEE PART DETAILS - PRI; PIN A, DOWEL (12X20) (Honda Code 0165324).

$3.99

$

In Stock, Qty 11

0

17

Honda 95701-10080-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X80) (Honda Code 2545341).

$4.99

$

In Stock, Qty 9

0

18

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

Note: (Optional)

$3.99

$

In Stock, Qty 20+

0

18

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO) (Honda Code 1672450).

Note: (Optional)

$3.49

$

In Stock, Qty 17

0

18

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).

$3.99

$

In Stock, Qty 20+

0

18

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO) (Honda Code 1441120).

$3.99

$

In Stock, Qty 12

0
