GX390 K1 QWC4/A (GCAA) - Honda Engine, Made in Japan (SN: GCAA-3400001 - GCAA-9999999) FUEL TANK (1) Parts Diagram

Engine, Made in Japan

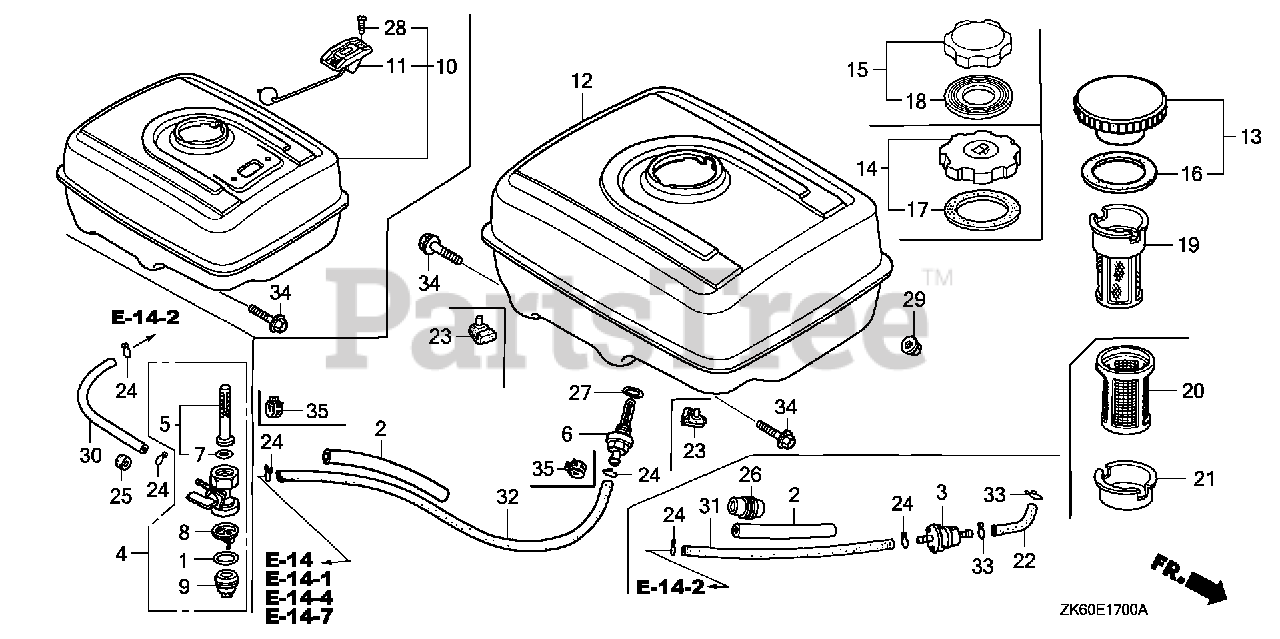

FUEL TANK (1) Parts Diagram

  • Title

2

Honda 16854-ZH8-000

RUBBER, SUPPORTER (107MM)

$5.99

$

In Stock, Qty 11

0

6

Honda 16955-ZE1-010

JOINT, FUEL TANK

$9.99

$

In Stock, Qty 20+

0

12

Honda 17510-ZE3-030ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use up to Engine SN 4112429.

$114.99

$

In Stock, only 2 left!

0

12

Honda 17510-ZE3-801ZC

TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use from Engine SN 4112430.

$105.99

$

In Stock, only 1 left!

0

14

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use up to Engine SN 3605677.

$

$

Not available

15

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)
(Superseded to 17620-Z0T-315)

Note: Use from Engine SN 3605678.

$22.99

$

In Stock, only 4 left!

0

17

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

Note: Use up to Engine SN 3605677.

$

$

Not available

18

Honda 17631-Z0T-812

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)
(Superseded to 17631-Z0T-813)

Note: Use from Engine SN 3605678.

$4.49

$

In Stock, only 2 left!

0

19

Honda 17672-ZE2-W01

FILTER, FUEL

$6.99

$

In Stock, only 2 left!

0

24

Honda 95002-02080

CLIP, TUBE (B8)

$2.99

$

In Stock, Qty 20+

0

27

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

$4.49

$

In Stock, Qty 20+

0

27

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$4.49

$

In Stock, Qty 20+

0

29

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

32

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X235)

$60.99

$

In Stock, Qty 7

0

34

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.99

$

In Stock, Qty 8

0
