GX390 RT2 EZDV/A (GCBCT) - Honda Engine, Made in Thailand (SN: GCBCT-3000001 - GCBCT-9999999) AIR CLEANER (5) Parts Diagram

Engine, Made in Thailand

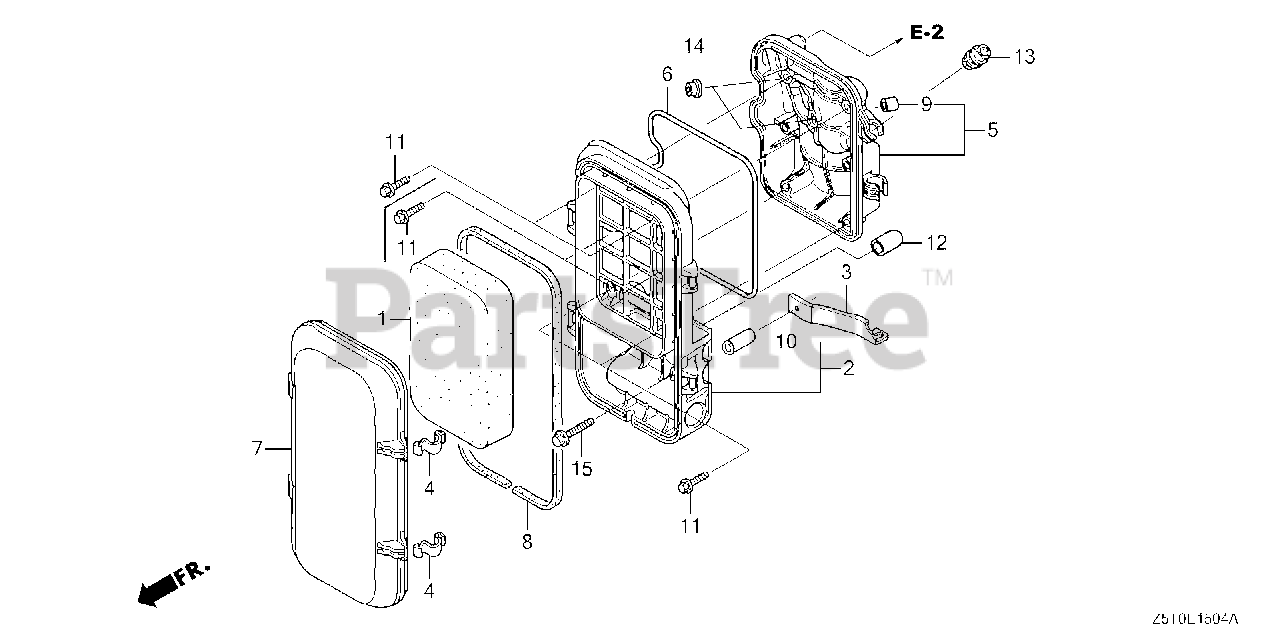

AIR CLEANER (5) Parts Diagram

  • Title

1

Honda 17211-ZBH-W00

ELEMENT, AIR CLEANER

$14.99

$

In Stock, Qty 16

0

2

Honda 17220-ZBH-W00

HOUSING, AIR CLEANER

$53.99

$

In Stock, only 1 left!

0

3

Honda 17222-Z23-F10

STAY, AIR CLEANER

$10.99

$

Usually ships in 3-6 days

0

4

Honda 17223-Z23-000

SPRING, AIR CLEANER HOUSING LID

$2.49

$

In Stock, Qty 20+

0

5

Honda 17223-ZBH-W01

BASE, AIR CLEANER

$8.99

$

Usually ships in 3-6 days

0

6

Honda 17229-ZBH-W00

SEAL, AIR CLEANER HOUSING

$13.99

$

In Stock, only 1 left!

0

7

Honda 17231-ZBH-W01

COVER, AIR CLEANER

$6.49

$

Usually ships in 3-6 days

0

8

Honda 17233-ZBH-W00

SEAL, AIR CLEANER COVER

$17.99

$

In Stock, only 2 left!

0

9

Honda 17238-ZBH-W00

COLLAR, AIR CLEANER

$2.49

$

Usually ships in 3-6 days

0

10

Honda 17238-ZE7-710

COLLAR, AIR CLEANER (Honda Code 2538445).

$3.99

$

Usually ships in 3-6 days

0

11

Honda 90005-ZM3-000

BOLT, FLANGE (5X18)

$1.99

$

In Stock, Qty 10

0

12

Honda 90802-Z6L-000

CAP, SEALING

$2.99

$

In Stock, only 2 left!

0

13

Honda 90854-ZB3-000

RUBBER, FUEL (9X15X20)

$4.49

$

Usually ships in 3-6 days

0

14

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

15

Honda 95701-06032-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 2581361).

$2.49

$

In Stock, only 4 left!

0
