GX390 U2 SM34 (GCBHK) - Honda Engine, Made in Japan (SN: GCBHK-1000001 - GCBHK-9999999) FUEL TANK (1) Parts Diagram

Engine, Made in Japan

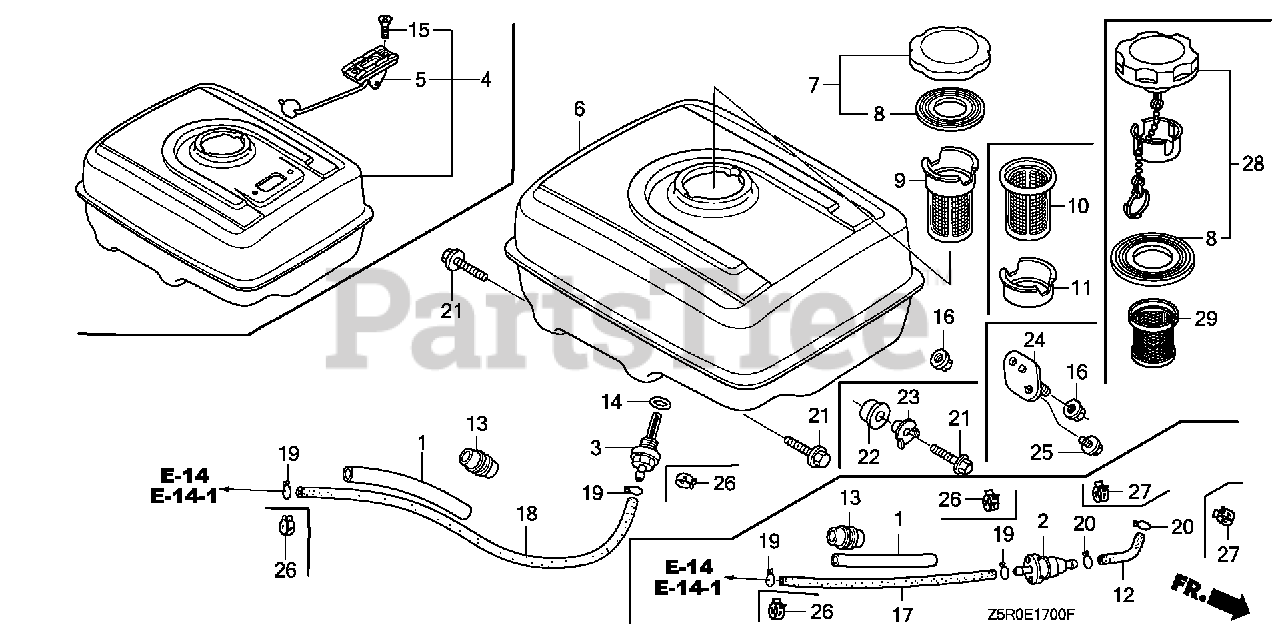

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$5.99

$

In Stock, Qty 12

0

3

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$9.99

$

In Stock, Qty 20+

0

6

Honda 17510-ZE3-801ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH1* (BLACK)

Note: Use from Engine SN 1000637.

$173.99

$

Usually ships in 3-6 days

0

6

Honda 17510-ZE3-801ZC

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use from Engine SN 1000637.

$105.99

$

In Stock, only 1 left!

0

6

Honda 17510-Z5T-000ZA

TANK, FUEL *NH1* (BLACK)

$75.99

$

In Stock, only 2 left!

0

6

Honda 17510-Z5T-000ZB

TANK, FUEL *NH31* (MCKINLEY WHITE)

$105.99

$

In Stock, only 2 left!

0

8

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (Honda Code 7346745).

$0.99

$

In Stock, Qty 5

0

14

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 20+

0

14

Honda 91353-671-004

SEE PART DETAILS - SUP; O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

16

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

18

Honda 91424-Z5T-003

TUBE, FUEL (4.5X235) (FKM)
(Superseded to 91424-Z5T-013)

$15.99

$

In Stock, only 2 left!

0

21

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, Qty 15

0

26

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$3.49

$

In Stock, only 4 left!

0

28

Honda 17620-Z4H-030

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

$82.99

$

Usually ships in 3-6 days

0

28

Honda 17620-Z4H-900

SEE PART DETAILS - PRI; CAP, FUEL FILLER

$82.99

$

Usually ships in 3-6 days

0

29

Honda 17672-Z4H-000

FILTER, FUEL (FROM 1204807)

$12.99

$

In Stock, only 2 left!

0
