GX390 UT2 HA2/A (GCBCT) - Honda Engine, Made in Thailand (SN: GCBCT-3000001 - GCBCT-9999999) REDUCTION Parts Diagram
Engine, Made in Thailand

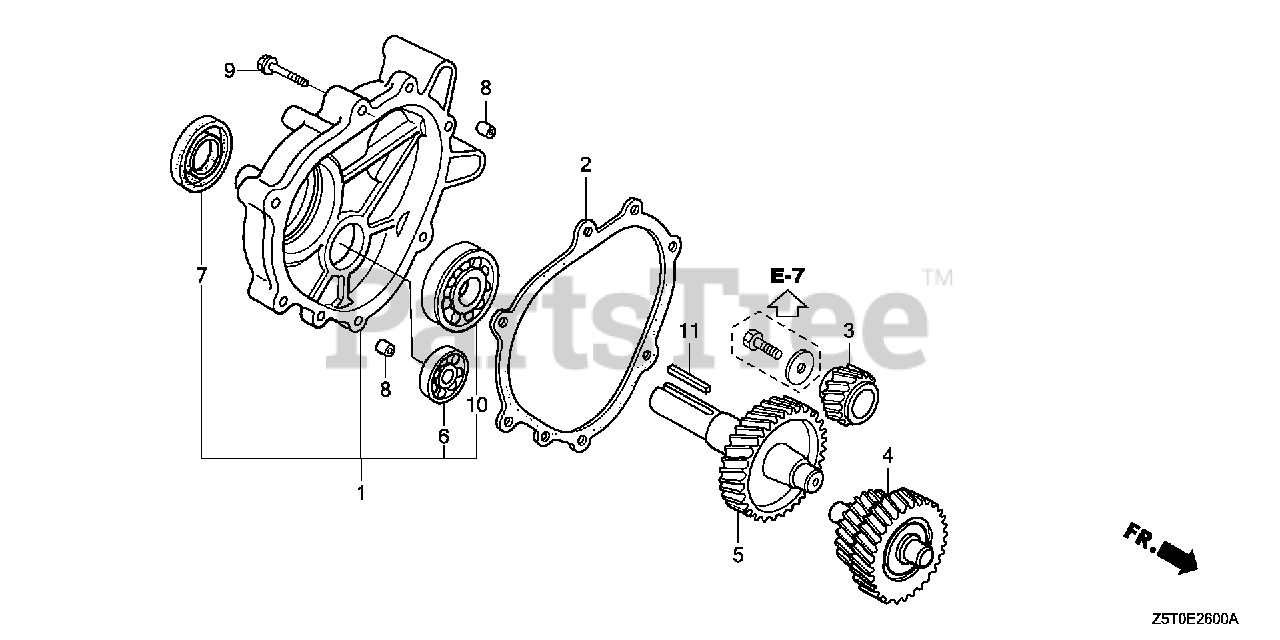

REDUCTION Parts Diagram
Honda 11500-Z8T-640
COVER ASSY., GEAR CASE
$71.99
$
Usually ships in 3-6 days
Honda 11521-ZE2-800
SEE PART DETAILS - PRI; GASKET, CHAIN CASE COVER (Honda Code 3678513).
$11.99
$
In Stock, only 1 left!
Honda 22103-ZE3-640
GEAR, PRIMARY DRIVE (12T)
$79.99
$
Usually ships in 3-6 days
Honda 23220-ZE3-640
COUNTERSHAFT (13T/27T)
$233.99
$
Usually ships in 3-6 days
Honda 23710-ZE3-640
SHAFT, P.T.O. (H-TYPE)
$286.99
$
Usually ships in 3-6 days
Honda 96100-63020-00
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6302) (Honda Code 0834176).
$10.99
$
Usually ships in 3-6 days
Honda 91201-Z1D-003
OIL SEAL (30X46X8) (NOK ASIA)
$11.99
$
Usually ships in 3-6 days
Honda 94301-08140
SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).
$2.99
$
In Stock, Qty 14
Honda 95701-08040-00
SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.
$1.49
$
In Stock, Qty 8
Honda 91006-MT3-003
BEARING, RADIAL BALL (6206) (NTN CORP.)
$26.99
$
Usually ships in 3-6 days
Honda 90745-ZE2-600
KEY (6.3X6.3X43) (Honda Code 2027167).
$16.99
$
Usually ships in 3-6 days
