GX390 UT2 QZNR (GCBCT) - Honda Engine, Made in Thailand (SN: GCBCT-1000001 - GCBCT-3485996) RECOIL STARTER (2) Parts Diagram

Engine, Made in Thailand

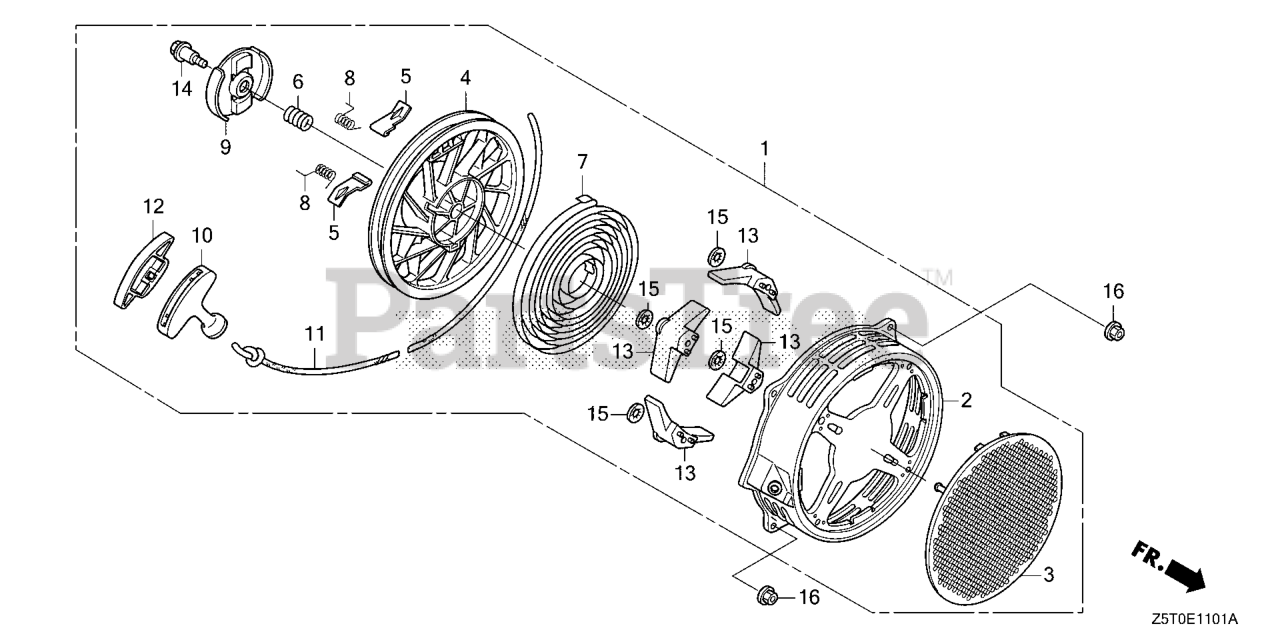

RECOIL STARTER (2) Parts Diagram

  • Title

1

Honda 28400-Z5T-306ZA

STARTER ASSY., RECOIL *R280* (COO)(FOR U.S.A.) (POWER RED)

$51.99

$

In Stock, only 2 left!

0

1

Honda 28400-Z5T-306ZB

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *NH1* (COO)(FOR U.S.A.) (BLACK)

Note: Use from Engine SN 1114709.

$63.99

$

In Stock, only 2 left!

0

2

Honda 28410-Z5T-W02ZA

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *NH1* (BLACK)

$148.99

$

In Stock, only 1 left!

0

2

Honda 28410-Z5T-W02ZB

CASE, RECOIL STARTER *R280* (POWER RED)

$146.99

$

Usually ships in 3-6 days

0

3

Honda 28411-Z5T-W01

COVER, RECOIL STARTER

$29.99

$

Usually ships in 3-6 days

0

4

Honda 28421-Z5T-W01

PULLEY, RECOIL STARTER

$28.99

$

Usually ships in 3-6 days

0

5

Honda 28422-ZE2-W01

RATCHET, STARTER (Honda Code 3678877).

$8.49

$

In Stock, Qty 8

0

6

Honda 28441-ZE2-W01

SPRING, FRICTION (Honda Code 3678885).

$6.99

$

In Stock, only 2 left!

0

7

Honda 28442-ZE2-W01

SPRING, STARTER RETURN (Honda Code 3678893).

$20.99

$

In Stock, Qty 6

0

8

Honda 28443-ZE2-W01

SPRING, RATCHET (Honda Code 3678901).

$5.99

$

In Stock, Qty 7

0

9

Honda 28444-ZE2-W01

RETAINER, SPRING (Honda Code 3678919).

$16.99

$

Usually ships in 3-6 days

0

10

Honda 28461-Z5T-003

SEE PART DETAILS - PRI; GRIP, STARTER
(Superseded to 28461-Z5T-305)

$11.99

$

In Stock, only 2 left!

0

11

Honda 28462-ZE3-W01

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER (#6X64") (N/A: USE P/N 08560-ZG921-11) (Honda Code 3713344).

$16.99

$

In Stock, only 2 left!

0

12

Honda 28463-Z5T-013

SEE PART DETAILS - PRI; GRIP, REINFORCEMENT

$3.99

$

In Stock, Qty 18

0

13

Honda 28465-Z5T-W01

COVER, ROPE

$6.49

$

In Stock, only 4 left!

0

14

Honda 90004-ZE2-W01

SCREW, CENTER (Honda Code 3679024).

$4.99

$

In Stock, Qty 9

0

15

Honda 90201-Z5T-W01

NUT, PUSH

$10.99

$

Usually ships in 3-6 days

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
