GX390 UT2 SMXC (GCBCT) - Honda Engine, Made in Thailand (SN: GCBCT-1000001 - GCBCT-9999999) RECOIL STARTER (1) Parts Diagram

Engine, Made in Thailand

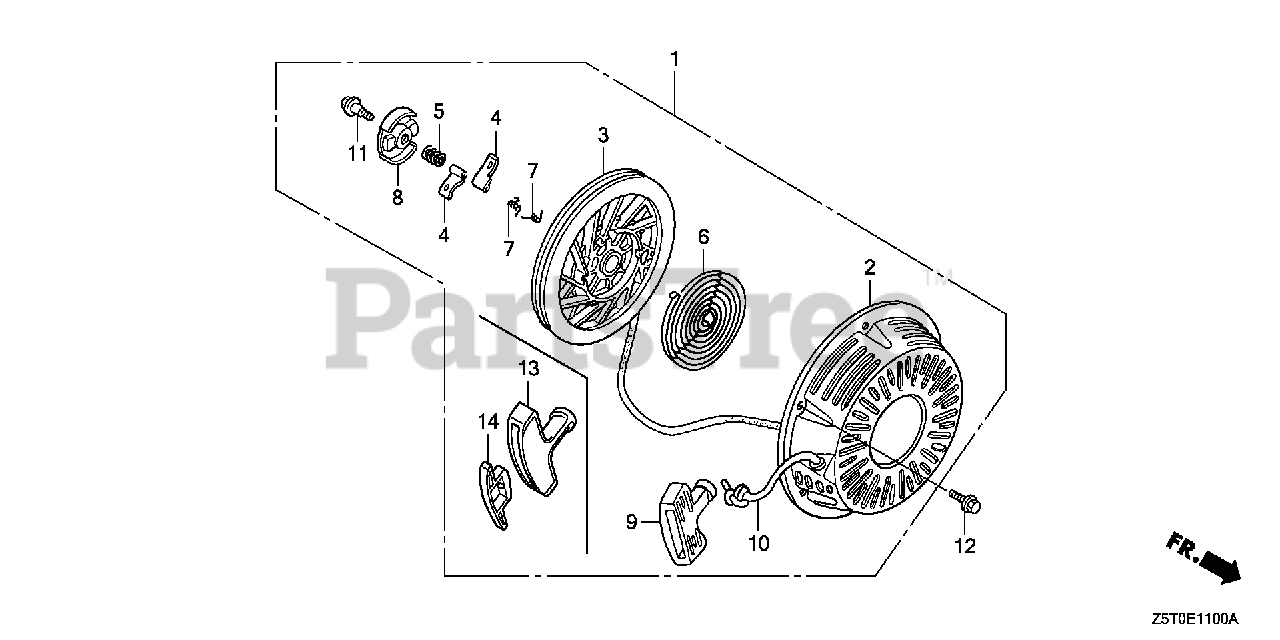

RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-Z5T-305ZA

STARTER ASSY., RECOIL *R280* (FOR U.S.A.) (POWER RED)

$38.99

$

In Stock, Qty 6

0

2

Honda 28410-ZE3-W01ZP

CASE, RECOIL STARTER *R280* (POWER RED)

$130.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZE3-W01

PULLEY, RECOIL STARTER

$44.99

$

In Stock, only 1 left!

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

$7.49

$

In Stock, only 4 left!

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

$6.49

$

In Stock, only 4 left!

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

$18.99

$

In Stock, only 3 left!

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

$5.49

$

In Stock, only 1 left!

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

$14.99

$

Usually ships in 3-6 days

0

10

Honda 28462-ZE3-W01

ROPE, RECOIL STARTER

$14.99

$

In Stock, only 1 left!

0

11

Honda 90004-ZE2-W01

SCREW, CENTER

$4.49

$

In Stock, only 1 left!

0

12

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

13

Honda 28461-Z5T-003

SEE PART DETAILS - PRI; GRIP, STARTER
(Superseded to 28461-Z5T-305)

$10.99

$

In Stock, Qty 9

0

13

Honda 28461-Z5T-305

SEE PART DETAILS - SUP; GRIP, STARTER (COO)(FOR U.S.A.)
(Superseded to 28461-Z5T-003)

$10.99

$

In Stock, Qty 9

0

14

Honda 28463-Z5T-013

GRIP, REINFORCEMENT

$3.49

$

In Stock, Qty 13

0
