GX610 K1 QZB2 (GCAC) - Honda Engine, Made in Japan (SN: GCAC-2000001 - GCAC-2059999) FAN COVER (2) Parts Diagram

Engine, Made in Japan

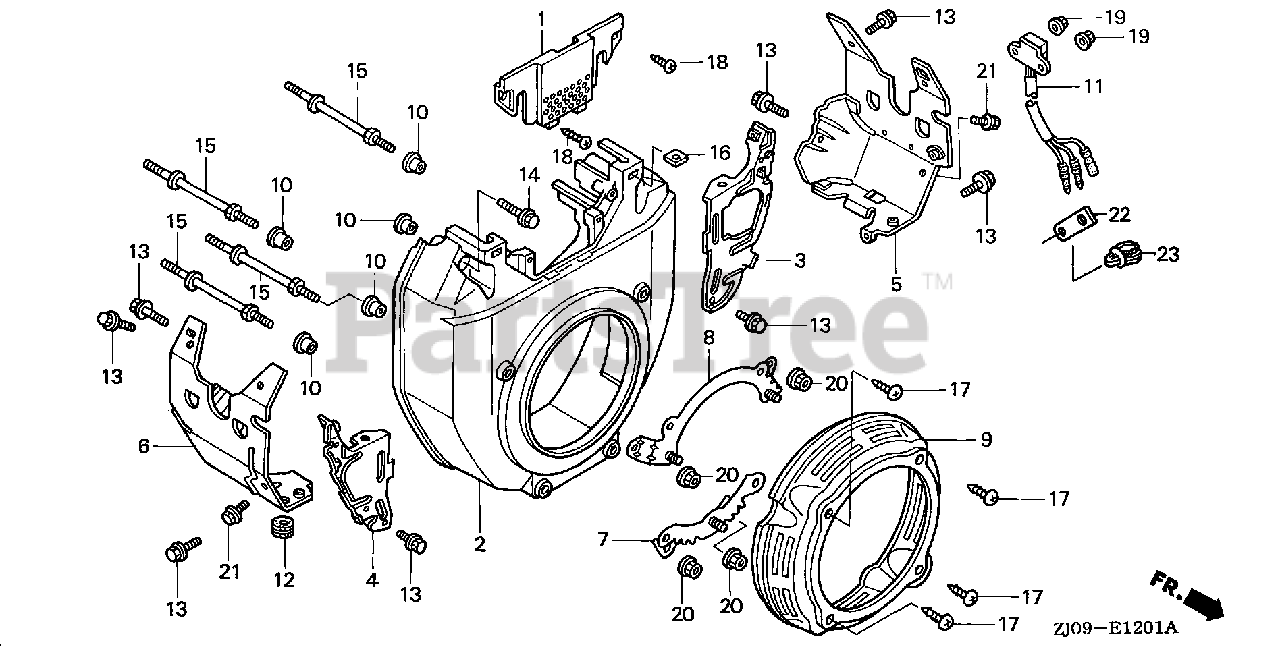

FAN COVER (2) Parts Diagram

  • Title

1

Honda 16715-ZJ1-850

COVER, FUEL PUMP (MANUAL CONTROL)

Note: (Honda Code 6224539).

$20.99

$

Usually ships in 3-6 days

0

2

Honda 19611-ZJ1-850ZB

COVER, FAN *R8* (RECOIL STARTER) (BRIGHT RED)

Note: (Honda Code 6260681).

$

$

Currently unavailable

3

Honda 19612-ZJ1-840

PLATE, R. SIDE

Note: (Honda Code 6225221).

$

$

Currently unavailable

4

Honda 19614-ZJ1-840

PLATE, L. SIDE
(Superseded to 19614-ZJ1-841)

Note: (Honda Code 6225239).

$21.99

$

Usually ships in 3-6 days

0

5

Honda 19631-ZJ1-850

SHROUD, R. (OIL ALERT)

Note: (Honda Code 6225254).

$

$

Not available

6

Honda 19632-ZJ1-840

SEE PART DETAILS - SUP; SHROUD, L.

Note: (Honda Code 6225262).

$

$

Currently unavailable

7

Honda 28491-ZJ1-840

STAY A, RECOIL STARTER

Note: (Honda Code 6260764).

$23.99

$

Usually ships in 3-6 days

0

8

Honda 28492-ZJ1-840

STAY B, RECOIL STARTER

Note: (Honda Code 6260772).

$28.99

$

Usually ships in 3-6 days

0

9

Honda 28496-ZJ1-840ZB

COVER, RECOIL STARTER STAY *R8* (BRIGHT RED)

Note: (Honda Code 6260798).

$

$

Currently unavailable

10

Honda 33713-GC2-000

COLLAR B, TAILLIGHT

Note: (Honda Code 1447911).

$4.99

$

In Stock, Qty 17

0

11

Honda 34150-ZJ1-841

ALERT UNIT ASSY., OIL

Note: (Honda Code 6225734).

$

$

Not available

12

Honda 80101-310-000

RUBBER, RR. FENDER CUSHION

Note: (Honda Code 0113449).

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$1.99

$

In Stock, Qty 11

0

14

Honda 90018-ZE1-000

BOLT, FLANGE (6X23)

Note: (Honda Code 1725050).

$2.49

$

In Stock, only 4 left!

0

15

Honda 90042-ZJ1-840

BOLT, STUD (6X71)

Note: (Honda Code 6227003).

$9.99

$

Usually ships in 3-6 days

0

16

Honda 90313-ZJ1-840

NUT, SQUARE (5MM)

Note: (Honda Code 6227045).

$3.49

$

In Stock, only 1 left!

0

17

Honda 93903-35380

SCREW, TAPPING (5X16)

Note: (Honda Code 1063379).

$1.49

$

Usually ships in 3-6 days

0

18

Honda 93913-25580

SCREW, TAPPING (5X20)

Note: (Honda Code 5802582).

$1.49

$

In Stock, Qty 8

0

19

Honda 94050-05000

NUT, FLANGE (5MM)

Note: (Honda Code 0636951).

$1.99

$

In Stock, Qty 20+

0

20

Honda 94050-06070

NUT, FLANGE (6MM)

Note: (Honda Code 2322832).

$1.99

$

Usually ships in 3-6 days

0

21

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8)

Note: (Honda Code 2581353).

$3.49

$

In Stock, only 2 left!

0
