GX610 K1 TXF2 (GCAC) - Honda Engine, Made in Japan (SN: GCAC-2000001 - GCAC-2059999) IGNITION COIL Parts Diagram

Engine, Made in Japan

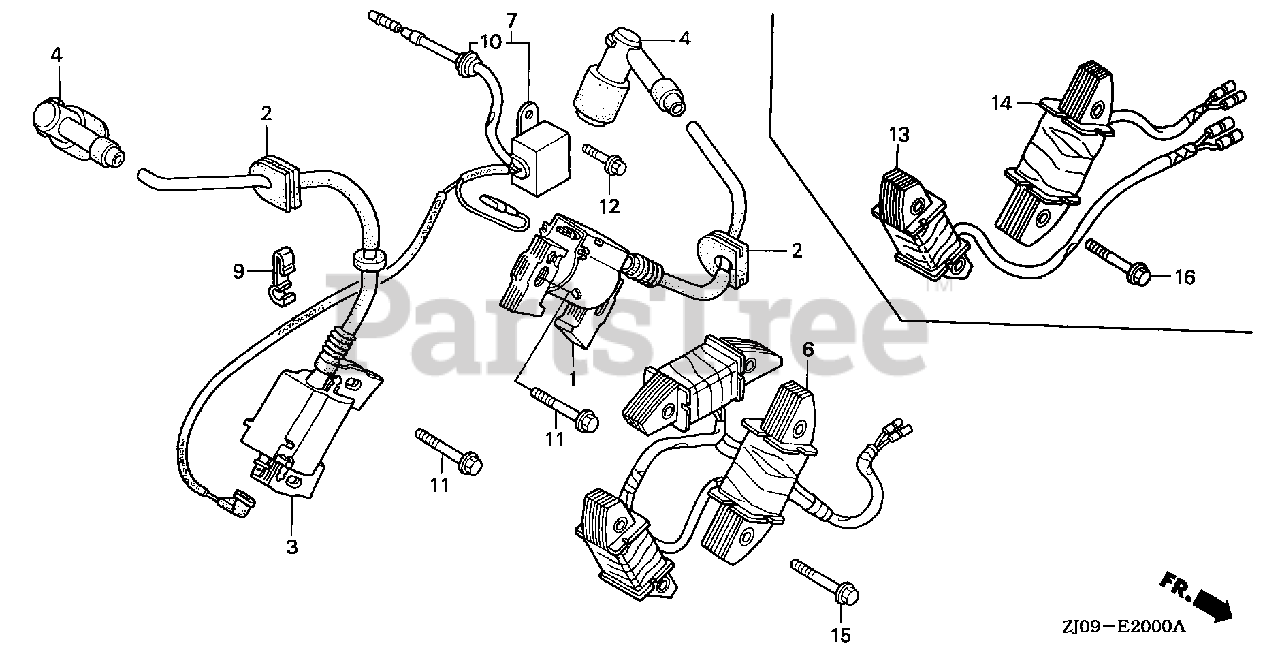

IGNITION COIL Parts Diagram

  • Title

1

Honda 30500-ZJ1-841

SEE PART DETAILS - SUP; COIL ASSY., R. IGNITION

Note: (Honda Code 6225320).

$

$

Currently unavailable

2

Honda 30518-ZJ1-000

GROMMET, IGNITION WIRE

Note: (Honda Code 4210027).

$5.99

$

Usually ships in 3-6 days

0

3

Honda 30550-ZJ1-841

SEE PART DETAILS - SUP; COIL ASSY., L. IGNITION

Note: (Honda Code 6225338).

$

$

Currently unavailable

4

Honda 30700-ZJ1-841

CAP ASSY., NOISE SUPPRESSOR

Note: (Honda Code 6225346).

$16.99

$

In Stock, only 3 left!

0

6

Honda 31630-ZJ1-801

COIL ASSY., CHARGE (12V/20A)

Note: (Honda Code 4210241).

$

$

Currently unavailable

7

Honda 31740-ZJ1-841

DIODE ASSY., ENGINE STOP

Note: Use up to Engine SN 2015619. (Honda Code 6225429).

$66.99

$

Usually ships in 3-6 days

0

7

Honda 31740-ZJ1-861

DIODE ASSY., ENGINE STOP
(Superseded to 31740-ZJ1-862)

Note: Use from Engine SN 2015620. (Honda Code 6956841).

$61.99

$

In Stock, only 1 left!

0

9

Honda 32763-PA0-000

CLAMP, WIRE

Note: (Honda Code 4899480).

$13.99

$

Usually ships in 3-6 days

0

10

Honda 63312-ZA7-000

GROMMET, TOOL

Note: (Honda Code 1411164).

$4.99

$

Usually ships in 3-6 days

0

11

Honda 90031-ZE1-000

BOLT, FLANGE (6X32)

Note: (Honda Code 2092971).

$3.99

$

In Stock, only 2 left!

0

12

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8)

Note: (Honda Code 2581353).

$3.49

$

In Stock, only 2 left!

0

15

Honda 90031-ZE1-000

BOLT, FLANGE (6X32)

Note: (Honda Code 2092971).

$3.99

$

In Stock, only 2 left!

0
