GX610 VD (GCAC) - Honda Engine, Made in Japan (SN: GCAC-1000001 - GCAC-1999999) MUFFLER (2) Parts Diagram

Engine, Made in Japan

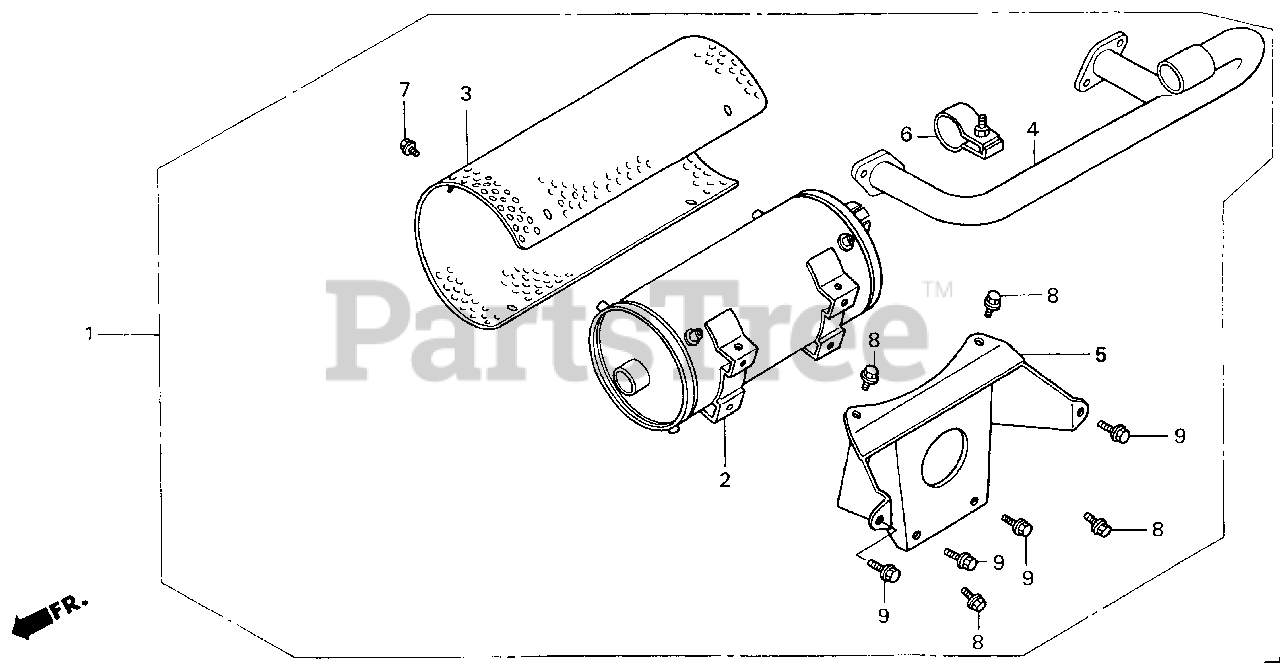

MUFFLER (2) Parts Diagram

  • Title

1

Honda 06183-ZJ1-821

MUFFLER KIT (HIGH-B) (N/A: SEE COMPONENTS)

Note: (Optional). (Honda Code 6724793).

$

$

Not available

2

Honda 18310-ZJ1-003

MUFFLER (HIGH)

Note: (Optional). (Honda Code 5159850).

$

$

Currently unavailable

3

Honda 18321-ZJ1-003

PROTECTOR, MUFFLER (HIGH)

Note: (Optional). (Honda Code 5159876).

$

$

Not available

4

Honda 18330-ZJ1-600

PIPE, EX. (HIGH-L)

Note: (Optional). (Honda Code 4328977).

$

$

Currently unavailable

5

Honda 18338-ZJ1-003

STAY, MUFFLER (HIGH)

Note: (Optional). (Honda Code 5159934).

$130.99

$

Usually ships in 3-6 days

0

6

Honda 18396-ZJ1-003

BAND ASSY.

Note: (Optional). (Honda Code 5159942).

$

$

Not available

7

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: (Optional). (Honda Code 2581353).

$3.49

$

In Stock, Qty 6

0

8

Honda 95701-08014-00

BOLT, FLANGE (8X14)

Note: (Optional). (Honda Code 2529105).

$2.49

$

In Stock, Qty 20+

0

9

Honda 95701-08020-00

BOLT, FLANGE (8X20)

Note: (Optional). (Honda Code 2552552).

$2.49

$

In Stock, Qty 6

0
