GX610 VD (GCAC) - Honda Engine, Made in Japan (SN: GCAC-1000001 - GCAC-1999999) RECOIL STARTER Parts Diagram

Engine, Made in Japan

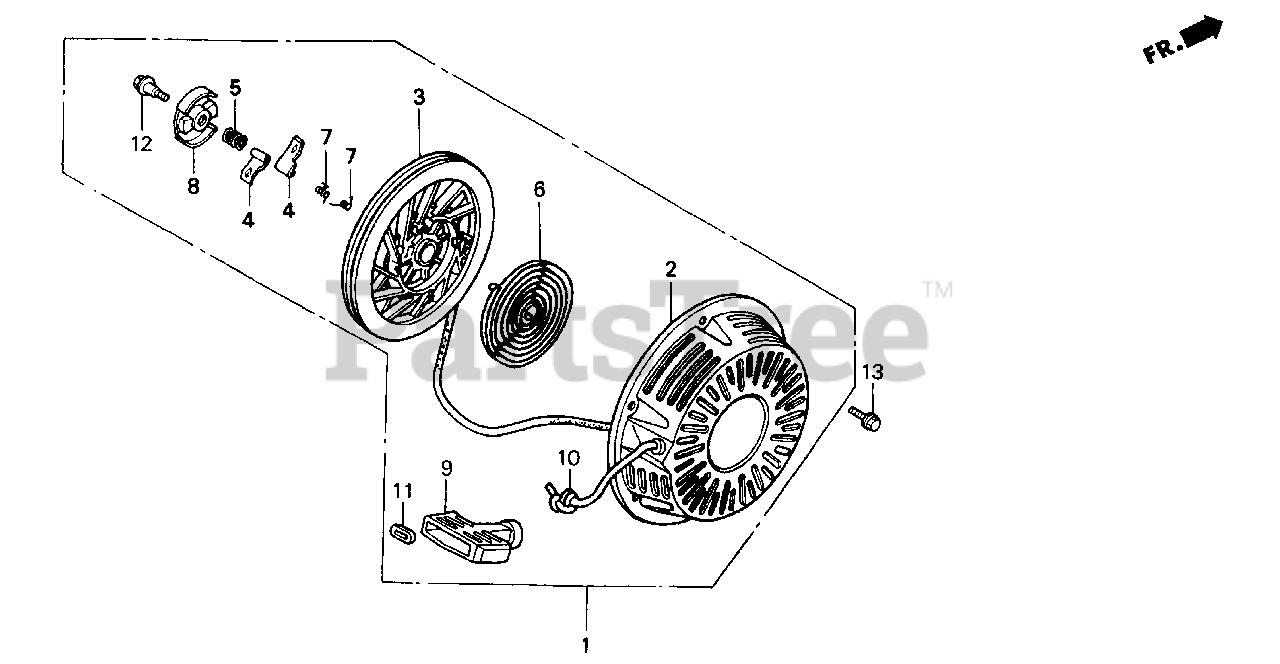

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE3-W01ZA

STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: (Honda Code 3713302).

$

$

Currently unavailable

2

Honda 28410-ZE3-W01ZA

CASE, RECOIL STARTER *R8* (BRIGHT RED)

Note: (Honda Code 3713310).

$

$

Currently unavailable

3

Honda 28421-ZE3-W01

PULLEY, RECOIL STARTER

Note: (Honda Code 3713328).

$41.99

$

In Stock, only 1 left!

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

Note: (Honda Code 3678877).

$6.99

$

In Stock, only 4 left!

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

Note: (Honda Code 3678885).

$5.99

$

In Stock, Qty 5

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

Note: (Honda Code 3678893).

$17.99

$

In Stock, Qty 6

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

Note: (Honda Code 3678901).

$4.99

$

In Stock, Qty 5

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

Note: (Honda Code 3678919).

$13.99

$

Usually ships in 3-6 days

0

9

Honda 28461-ZE2-W02

GRIP, STARTER
(Superseded to 28461-ZE2-W03)

Note: (Honda Code 6133649).

$7.49

$

In Stock, Qty 5

0

10

Honda 28462-ZE3-W01

ROPE, RECOIL STARTER (N/A: USE P/N 08560-ZG921-11)

Note: (Honda Code 3713344).

$13.99

$

In Stock, only 1 left!

0

11

Honda 28469-ZE2-W01

GRIP, REINFORCEMENT

Note: (Honda Code 3678976).

$6.49

$

In Stock, only 1 left!

0

12

Honda 90004-ZE2-W01

SCREW, CENTER

Note: (Honda Code 3679024).

$3.99

$

In Stock, only 1 left!

0

13

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

Note: (Honda Code 6437289).

$1.99

$

In Stock, Qty 20+

0
