GX620 K1 QXW2 (GCAD) - Honda Engine, Made in Japan (SN: GCAD-2000001 - GCAD-2159999) CARBURETOR Parts Diagram

Engine, Made in Japan

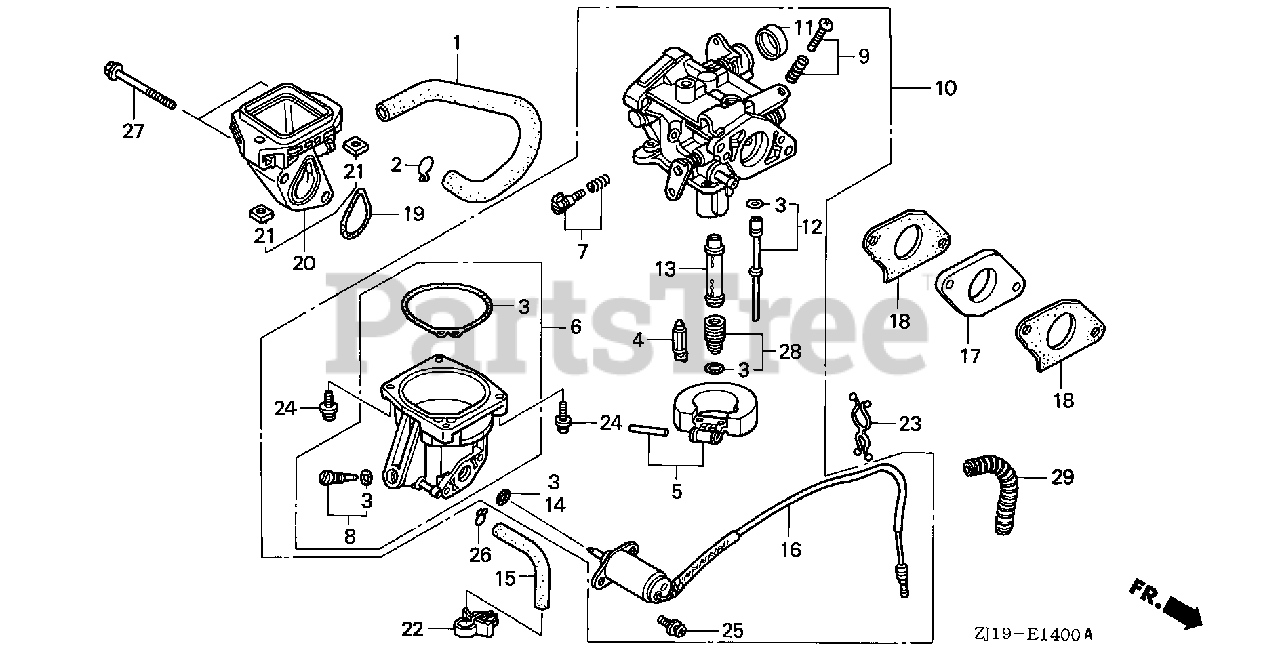

CARBURETOR Parts Diagram

  • Title

1

Honda 12357-ZJ1-840

TUBE, BREATHER

Note: (Honda Code 6223903).

$16.99

$

In Stock, only 2 left!

0

2

Honda 15772-551-000

CLIP, BREATHER TUBE

Note: (Honda Code 0501353).

$2.99

$

In Stock, only 2 left!

0

3

Honda 16010-ZG8-000

GASKET SET

Note: (Honda Code 3506375).

$26.99

$

In Stock, Qty 5

0

4

Honda 16011-KCK-910

VALVE SET, FLOAT

Note: (Honda Code 5699517).

$51.99

$

In Stock, only 1 left!

0

5

Honda 16013-ZV4-005

FLOAT SET

Note: (Honda Code 2794899).

$48.99

$

Usually ships in 3-6 days

0

6

Honda 16015-ZJ1-841

CHAMBER SET, FLOAT

Note: (Honda Code 6224190).

$117.99

$

Usually ships in 3-6 days

0

7

Honda 16016-ZJ1-010

SCREW SET

Note: (Honda Code 4329793).

$15.99

$

In Stock, only 2 left!

0

8

Honda 16024-124-760

SCREW SET, DRAIN

Note: (Honda Code 0640052).

$16.99

$

In Stock, only 2 left!

0

9

Honda 16028-ZG8-000

SCREW SET

Note: (Honda Code 3506409).

$15.99

$

Usually ships in 3-6 days

0

10

Honda 16100-ZJ1-861

CARBURETOR ASSY. (BG22J A)

Note: (Honda Code 6685606).

$

$

Currently unavailable

11

Honda 16148-141-881

CAP, CHOKE LEVER DUST

Note: (Honda Code 2110468).

$7.99

$

In Stock, only 1 left!

0

12

Honda 16150-ZJ1-841

JET SET (#52)
(Superseded to 16150-ZJ1-R51)

Note: (Honda Code 6224265).

$

$

Not available

13

Honda 16166-ZJ1-861

NOZZLE, MAIN

Note: (Honda Code 6685622).

$31.99

$

Usually ships in 3-6 days

0

14

Honda 16178-548-004

O-RING (5.8X1.9)

Note: (Honda Code 0167767).

$7.99

$

In Stock, only 1 left!

0

15

Honda 16198-ZJ1-840

TUBE, DRAIN

Note: (Honda Code 6224273).

$6.49

$

In Stock, Qty 7

0

16

Honda 16200-ZJ1-841

VALVE ASSY., SOLENOID
(Superseded to 16200-ZJ1-842)

Note: (Honda Code 6224281).

$71.99

$

In Stock, only 2 left!

0

17

Honda 16211-ZJ0-830

INSULATOR, CARBURETOR

Note: (Honda Code 6224299).

$16.99

$

In Stock, only 1 left!

0

18

Honda 16221-ZJ1-840

GASKET, CARBURETOR

Note: (Honda Code 6224307).

$2.99

$

In Stock, Qty 20+

0

19

Honda 17228-ZG8-003

GASKET, AIR CLEANER

Note: (Honda Code 3506524).

$5.49

$

In Stock, Qty 11

0

20

Honda 17410-ZJ1-840

ELBOW COMP., AIR CLEANER

Note: (Honda Code 6224851).

$26.99

$

Usually ships in 3-6 days

0

21

Honda 90314-ZJ1-840

NUT, INSERT (6MM)

Note: (Honda Code 6227052).

$3.99

$

In Stock, only 1 left!

0

22

Honda 90682-959-661

CLIP B, CABLE

Note: (Honda Code 1064021).

$4.49

$

In Stock, only 1 left!

0

23

Honda 91402-ZJ1-841

CLIP, PURSE LOCK

Note: (Honda Code 6227177).

$3.99

$

Usually ships in 3-6 days

0

24

Honda 93892-04014-08

SCREW-WASHER (4X14)

Note: (Honda Code 0624866).

$1.99

$

In Stock, only 4 left!

0

24

Honda 93892-04014-18

SCREW-WASHER (4X14)
(Superseded to 93892-04014-08)

Note: (Honda Code 1171842).

$1.99

$

In Stock, only 4 left!

0

25

Honda 93892-05012-08

SCREW-WASHER (5X12)

Note: (Honda Code 0368621).

$1.99

$

In Stock, Qty 16

0

26

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.99

$

In Stock, Qty 20+

0

27

Honda 95801-06120-00

BOLT, FLANGE (6X120)

Note: (Honda Code 5137302).

$3.99

$

In Stock, only 2 left!

0

28

Honda 99201-ZG8-1000

JET SET, MAIN (#100)

Note: (Optional). (Honda Code 6227276).

$19.99

$

Usually ships in 3-6 days

0

28

Honda 99201-ZG8-1020

JET SET, MAIN (#102)

Note: (Optional). (Honda Code 6227284).

$18.99

$

Usually ships in 3-6 days

0

28

Honda 99201-ZG8-1050

JET SET, MAIN (#105)
(Superseded to 99201-ZJ0-1050)

Note: (Honda Code 4572889).

$

$

Not available

29

Honda 30519-ZJ1-840

TUBE, CORRUGATE

Note: (Honda Code 6685812).

$2.99

$

Usually ships in 3-6 days
