GX620 K1 QXW2 (GCAD) - Honda Engine, Made in Japan (SN: GCAD-2000001 - GCAD-2159999) FUEL TANK (4) Parts Diagram

Engine, Made in Japan

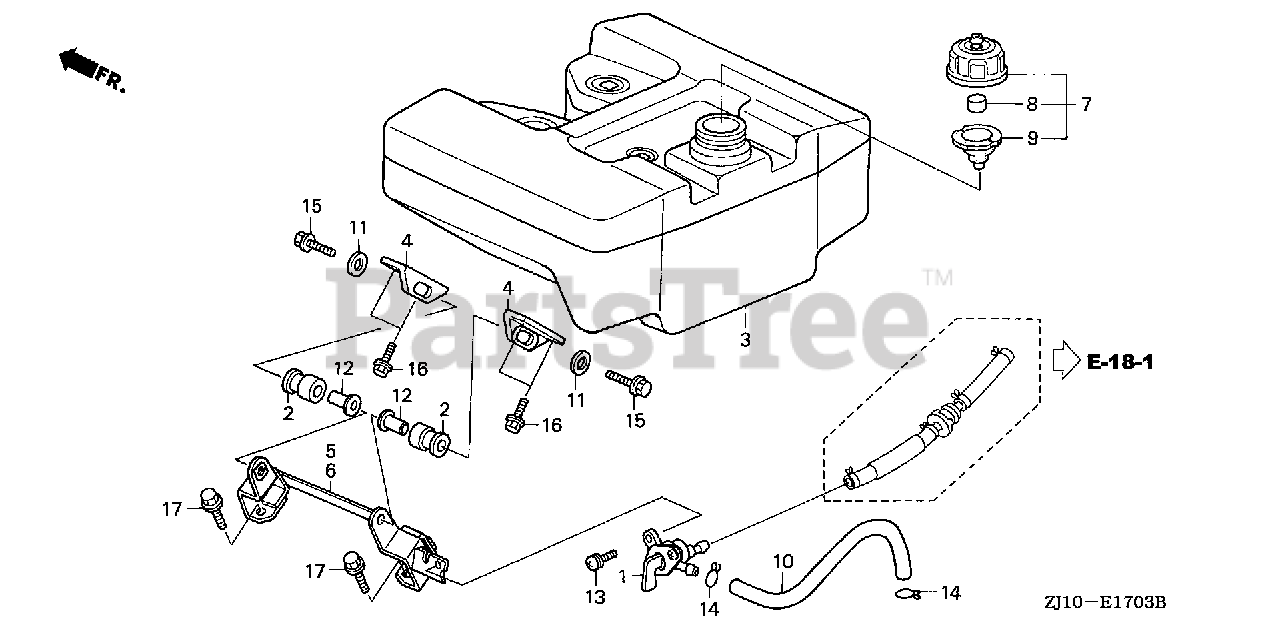

FUEL TANK (4) Parts Diagram

  • Title

1

Honda 16950-YA0-802

PETCOCK ASSY.

$48.99

$

Usually ships in 3-6 days

0

2

Honda 17508-GBF-830

RUBBER, TANK MOUNTING

$9.49

$

Usually ships in 3-6 days

0

3

Honda 17510-ZJ1-840

TANK, FUEL
(Superseded to 17510-ZJ1-841)

$785.99

$

Usually ships in 3-6 days

0

4

Honda 17544-ZJ1-840

BRACKET, FUEL TANK

$43.99

$

Usually ships in 3-6 days

0

5

Honda 17561-ZJ1-840

STAY, R. FUEL TANK

$86.99

$

Usually ships in 3-6 days

0

6

Honda 17566-ZJ1-840

STAY, L. FUEL TANK

$93.99

$

Usually ships in 3-6 days

0

7

Honda 17620-ZJ1-840

CAP ASSY., FUEL TANK

$

$

Not available

8

Honda 17622-888-010

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, Qty 20+

0

9

Honda 17624-ZJ1-840

GASKET, FUEL CAP

$12.99

$

Usually ships in 3-6 days

0

10

Honda 17701-ZJ1-840

TUBE, FUEL

$

$

Not available

11

Honda 90404-GE2-760

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 91501-ZJ1-840

COLLAR, TANK SETTING

$9.49

$

Usually ships in 3-6 days

0

13

Honda 93891-05014-00

SCREW-WASHER (5X14)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 95002-02100

CLIP, TUBE (B10)

$2.99

$

In Stock, Qty 20+

0

15

Honda 95701-06045-07

BOLT, FLANGE (6X45)

$3.49

$

In Stock, only 4 left!

0

16

Honda 96001-06016-00

BOLT, FLANGE (6X16)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 95701-08020-00

BOLT, FLANGE (8X20)

$2.99

$

In Stock, only 3 left!

0
